Distributed Tracing in Node.js with OpenTelemetry
OpenTelemetry is an observability framework that simplifies the process of capturing and standardizing telemetry data—such as logs, traces, and metrics—across various programming languages and platforms.
It provides a consistent approach to instrumenting applications, regardless of programming language, frameworks, or observability tools you're using.
In this guide, we'll explore how to use OpenTelemetry to add tracing to your Node.js applications.
By the end of this tutorial, you'll be equipped to monitor and analyze your application's performance through detailed trace data, identify bottlenecks, and optimize its behavior effectively.
Let's begin!
Prerequisites
- Prior Node.js development experience.
- Docker and Docker Compose installed.
- Basic understanding of distributed tracing terminology terminology.
- Basic familiarity with OpenTelemetry concepts.
Step 1 — Setting up the demo project
In this tutorial, you'll learn how to instrument a Node.js application to generate traces using OpenTelemetry.
The application you'll work with is designed for converting JSON to YAML. It features GitHub social login with cookie-based session management to prevent unauthorized access.
To get started, clone the application repository to your local machine:
git clone https://github.com/betterstack-community/json-to-yaml
Navigate into the project directory and install the necessary dependencies:
cd json-to-yaml
npm install
Here's the top-level directory structure of the project:
.
├── auth
│ ├── app.js
│ ├── controllers
│ ├── db
│ ├── public
│ ├── redis.js
│ ├── routes
│ ├── schemas
│ ├── server.js
│ └── views
├── auth.Dockerfile
├── config
│ ├── db.js
│ ├── env.js
│ └── logger.js
├── converter
│ ├── app.js
│ ├── controllers
│ ├── routes
│ └── server.js
├── converter.Dockerfile
├── docker-compose.yml
├── LICENSE
├── package.json
├── package-lock.json
├── README.md
├── screenshot.png
└── tags
The auth
directory contains the service responsible for authentication and
session management, while the converter
directory hosts the service that
handles the conversion from JSON to YAML.
All user requests are processed through the auth
service before reaching the
converter
service. The setup also relies on Redis, PostgreSQL, and the GitHub
API to illustrate how tracing can help you understand service interactions.
Next, rename the .env.sample
file to .env
:
mv .env.sample .env
Before starting the services, you'll need to create a GitHub application to enable GitHub OAuth for user authentication.

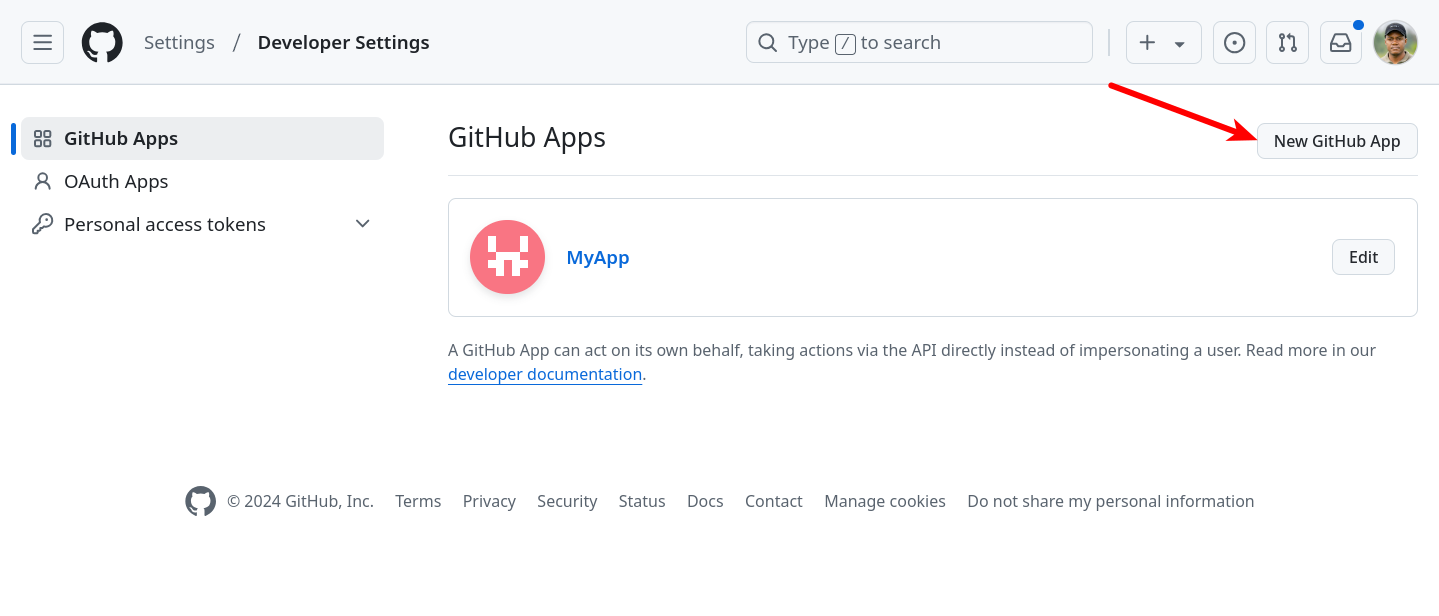

Open the GitHub Developer Settings page at
https://github.com/settings/apps
in your browser:

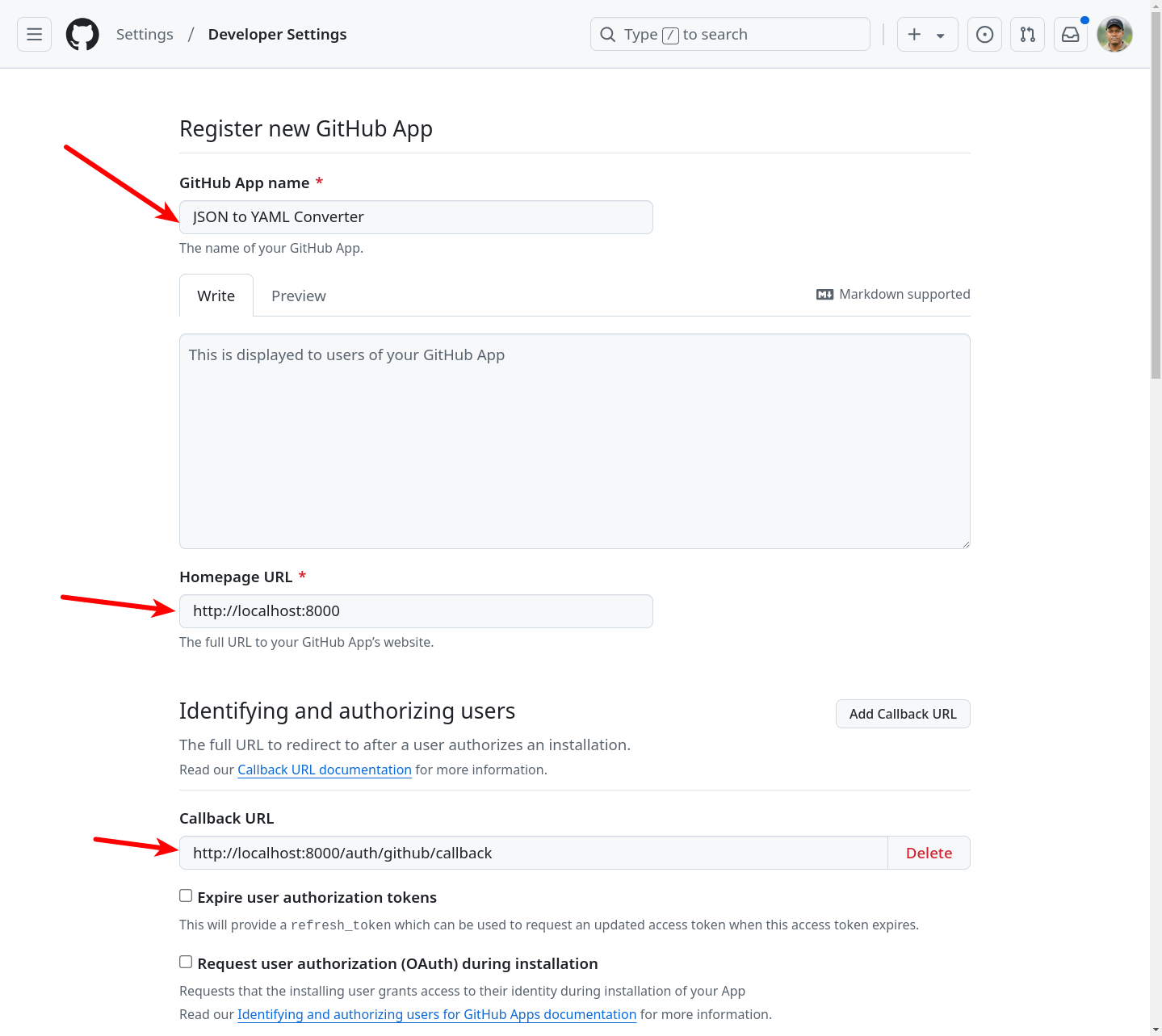

Click the New GitHub App button, provide a suitable name, and set the
Homepage URL to http://localhost:8000
with the Callback URL set to
http://localhost:8000/auth/github/callback
.
Scroll down the page and make sure to uncheck the Webhook option, as it won't be needed for this tutorial:

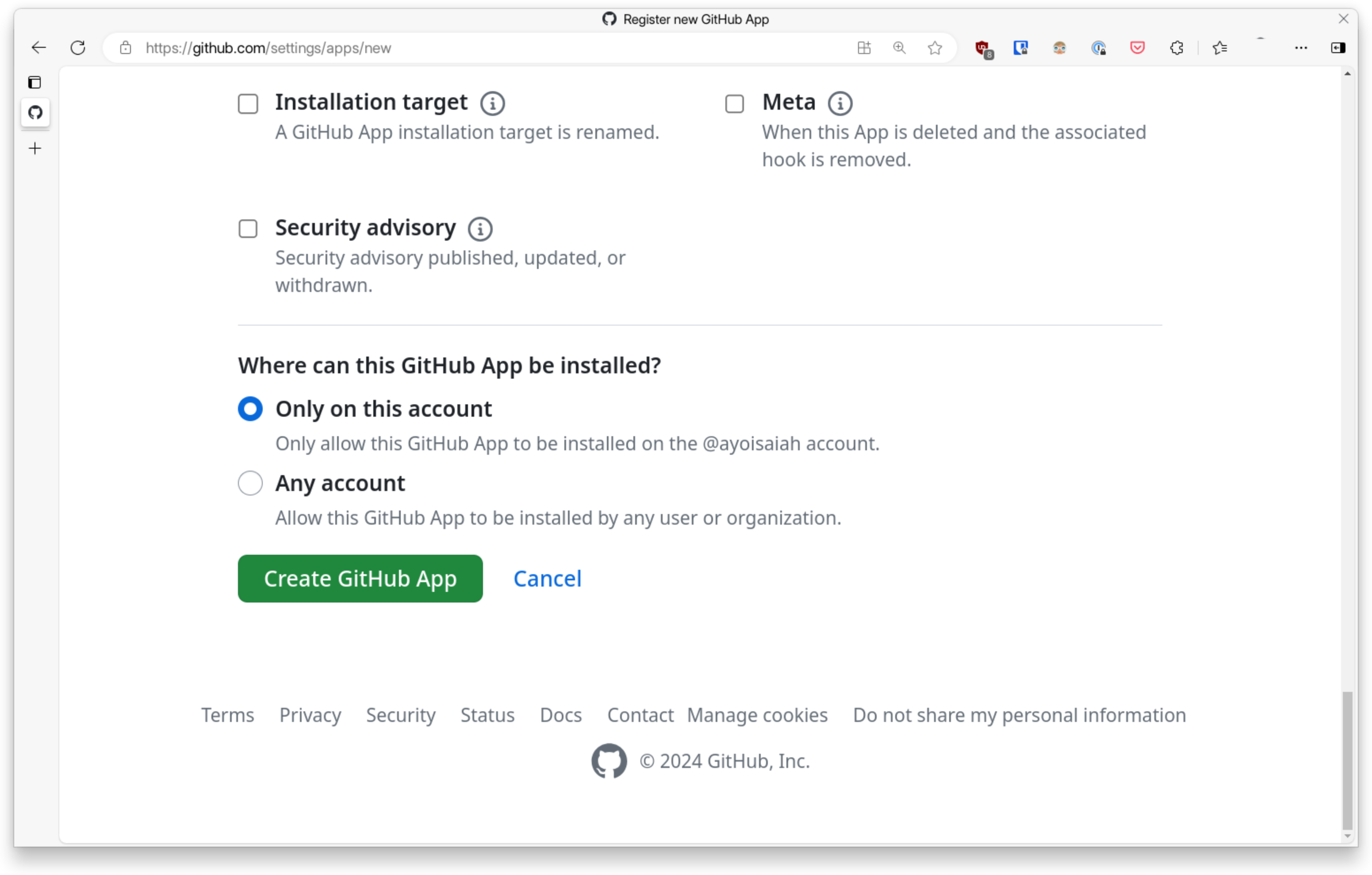

Once you're done, click Create GitHub App at the bottom of the page:
On the resulting page, click the Generate a new client secret button, then copy both the generated token and the Client ID:
Now, return to your terminal, open the .env
file in your text editor, and
update the highlighted lines with the copied values:
code .env
. . .
GITHUB_CLIENT_ID=<your_github_client_id>
GITHUB_CLIENT_SECRET=<your_github_client_secret>
. . .
Finally, launch the application and its associated services. You can start the entire setup locally using Docker Compose:
docker compose up -d --build
This command will initiate the following containers:
. . .
✔ Service auth Built 12.3s
✔ Service converter Built 1.7s
✔ Network json-to-yaml-nodejs_json-to-yaml-network Created 0.2s
✔ Container json-to-yaml-db Healthy 11.4s
✔ Container json-to-yaml-redis Healthy 11.4s
✔ Container json-to-yaml-auth Started 11.4s
✔ Container json-to-yaml-converter Started 11.6s
- The
auth
container handles authentication and is accessible athttp://localhost:8000
. Theapp
container runs theconverter
service on port 8001 in the container but isn't exposed tolocalhost
. Both services are utilizingnodemon
for live reloading on file changes. - The
db
container runs PostgreSQL, whileredis
runs Redis.

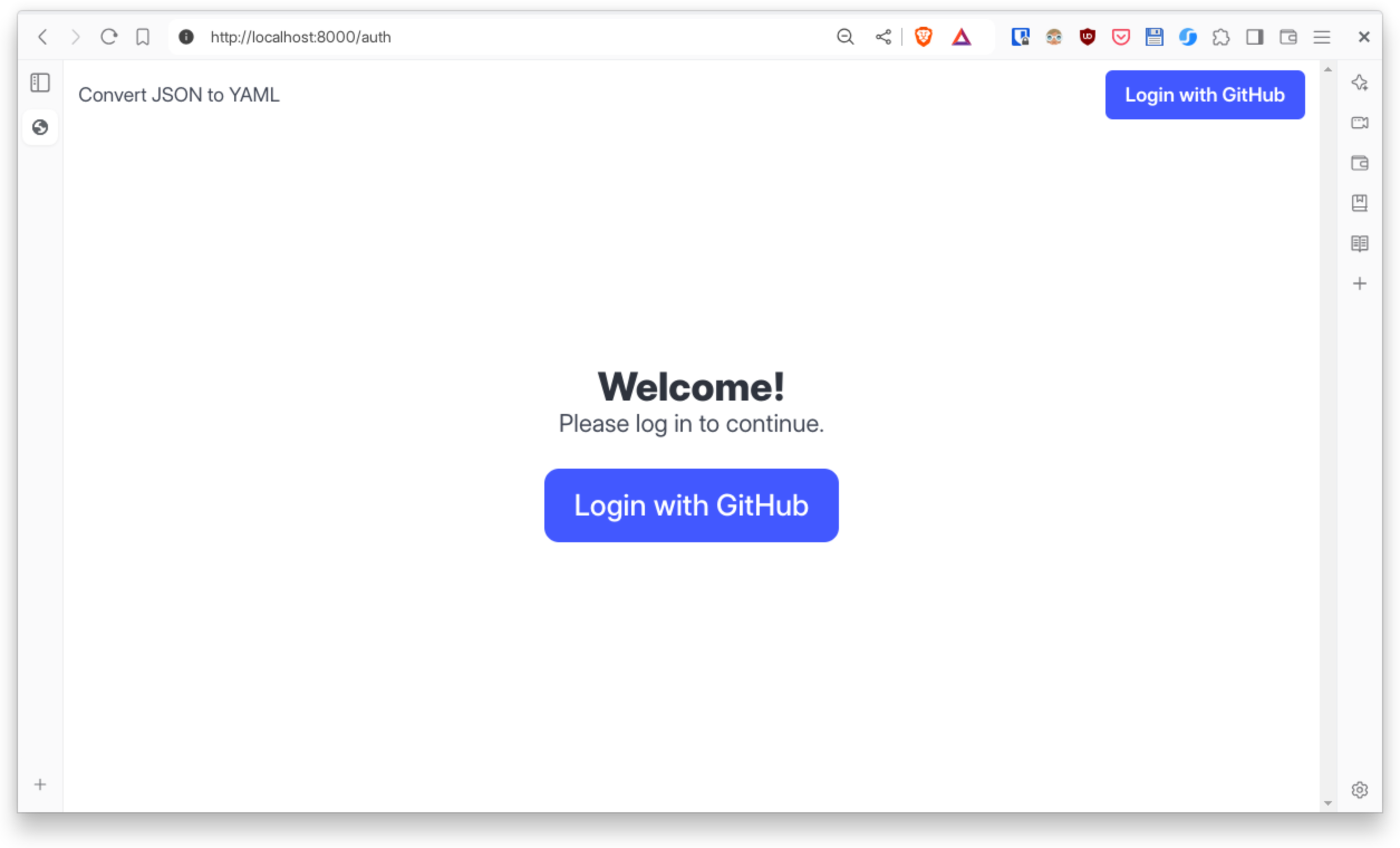

With everything up and running, navigate to http://localhost:8000
in your
browser to access the application UI:

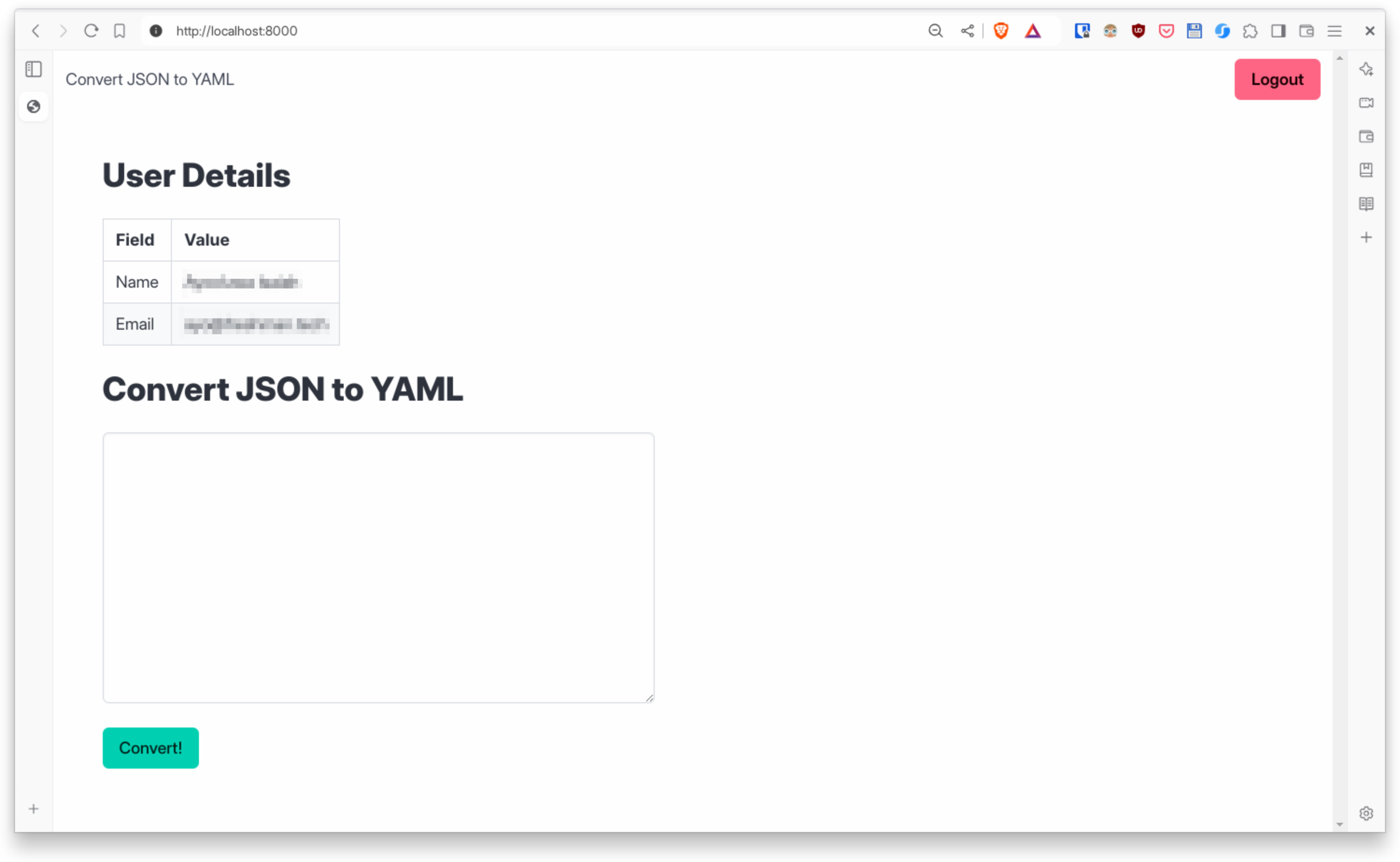

After authenticating with GitHub, you'll be redirected to the following page:
Input a valid JSON object in the provided field, and click the Convert button:
{
"trailingComma": "es5",
"tabWidth": 4,
"semi": false,
"singleQuote": true
}
You should see the resulting YAML response displayed in your browser:
You've successfully set up and explored the demo application in this initial step.
In the upcoming sections, you'll learn how to instrument the services with the Node.js OpenTelemetry SDK and visualize the traces in Jaeger.
Step 2 — Initializing the Node.js OpenTelemetry SDK
Now that you've set up with the sample application, it's time to implement basic trace instrumentation using OpenTelemetry. This will allow the application to generate traces for every HTTP request it processes.
To get started, you'll need to set up the OpenTelemetry SDK in your application. Install the required dependencies by running the following command in your terminal:
npm install @opentelemetry/sdk-node \
@opentelemetry/auto-instrumentations-node \
@opentelemetry/sdk-trace-node \
@opentelemetry/api
This command installs these OpenTelemetry SDK components:
- @opentelemetry/sdk-node: Provides the core functionality for initializing the OpenTelemetry SDK in a Node.js environment.
- @opentelemetry/auto-instrumentations-node: Automatically instruments supported libraries and frameworks, allowing you to trace requests without manually adding instrumentation code.
- @opentelemetry/sdk-trace-node: Contains the tracing implementation for Node.js applications, enabling the capture of span data for monitored operations.
- @opentelemetry/api: Defines the data types and interfaces for creating and manipulating telemetry data according to the OpenTelemetry specification.
After installing the necessary packages, create a file named otel.js
in the
root directory of your project and insert the following code into this file:
import { getNodeAutoInstrumentations } from "@opentelemetry/auto-instrumentations-node";
import { NodeSDK } from "@opentelemetry/sdk-node";
import { ConsoleSpanExporter } from "@opentelemetry/sdk-trace-node";
const sdk = new NodeSDK({
traceExporter: new ConsoleSpanExporter(),
instrumentations: [getNodeAutoInstrumentations()],
});
sdk.start();
This code sets up OpenTelemetry to automatically instrument a Node.js application and export the generated trace data directly to the console.
The getNodeAutoInstrumentations()
function enables automatic instrumentation
for supported libraries and frameworks, such as Fastify, Redis, and PostgreSQL
(pg
), which are used in both the auth
and converter
services.
By adopting this approach, tracing becomes much simpler to implement as it eliminates the need for manually instrumenting each library.
It does come at a cost of increasing the size of your dependencies so if this is a concern, ensure to search the OpenTelemetry Registry for specific instrumentation packages for the libraries you're actually using.
To activate tracing in both services, simply register the otel.js
file at the
beginning of the auth/server.js
and converter/server.js
files as shown
below:
[auth/server.js]
import '../otel.js';
. . .
[converter/server.js]
import '../otel.js';
. . .
With this in place, you'll start seeing the trace data in the console when you view the logs for the running services:
docker compose logs -f auth converter
If you visit http://localhost:8000/auth
in your browser, you will see an
output similar to what's shown below:
{
resource: {
attributes: {
'service.name': 'unknown_service:/usr/local/bin/node',
'telemetry.sdk.language': 'nodejs',
'telemetry.sdk.name': 'opentelemetry',
'telemetry.sdk.version': '1.26.0',
'process.pid': 60,
'process.executable.name': '/usr/local/bin/node',
'process.executable.path': '/usr/local/bin/node',
'process.command_args': ['/usr/local/bin/node', '/node/app/auth/server.js'],
'process.runtime.version': '20.17.0',
'process.runtime.name': 'nodejs',
'process.runtime.description': 'Node.js',
'process.command': '/node/app/auth/server.js',
'process.owner': 'root',
'host.name': 'a4e67b9cd391',
'host.arch': 'amd64'
}
},
instrumentationScope: {
name: '@opentelemetry/instrumentation-http',
version: '0.53.0',
schemaUrl: undefined
},
traceId: '22695de23822cd0d7a401cc0494e5e16',
parentId: undefined,
traceState: undefined,
name: 'GET',
id: '4fe792539cbf5b61',
kind: 1,
timestamp: 1728405972211000,
duration: 46121.586,
attributes: {
'http.url': 'http://localhost:8000/auth',
'http.host': 'localhost:8000',
'net.host.name': 'localhost',
'http.method': 'GET',
'http.scheme': 'http',
'http.target': '/auth',
'http.user_agent': 'Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/129.0.0.0 Safari/537.36',
'http.flavor': '1.1',
'net.transport': 'ip_tcp',
'net.host.ip': '172.31.0.4',
'net.host.port': 8000,
'net.peer.ip': '172.31.0.1',
'net.peer.port': 53694,
'http.status_code': 200,
'http.status_text': 'OK'
},
status: {
code: 0
},
events: [],
links: []
}
In this example, the resource
section includes critical information about the
application, such as its name, SDK details, process attributes, and the host
environment, which helps identify where the span originated.
You'll notice that the service.name
attribute is reported as
unknown_service
. This is because the OTEL_SERVICE_NAME
environmental
variable isn't defined at the moment.
To set it up, add the following to the bottom of your .env
file:
. . .
AUTH_OTEL_SERVICE_NAME=auth-service
CONVERTER_OTEL_SERVICE_NAME=converter-service
Then modify your auth
and converter
services by adding the highlighted lines
below:
services:
auth:
build:
dockerfile: auth.Dockerfile
context: .
target: ${NODE_ENV}
container_name: json-to-yaml-auth
environment:
. . .
OTEL_SERVICE_NAME: ${AUTH_OTEL_SERVICE_NAME}
env_file:
- ./.env
depends_on:
redis:
condition: service_healthy
postgres:
condition: service_healthy
ports:
- 8000:8000
networks:
- json-to-yaml-network
volumes:
- .:/node/app
converter:
build:
dockerfile: converter.Dockerfile
context: .
target: ${NODE_ENV}
container_name: json-to-yaml-converter
environment:
CONVERTER_PORT: ${CONVERTER_PORT}
LOG_LEVEL: ${LOG_LEVEL}
OTEL_SERVICE_NAME: ${CONVERTER_OTEL_SERVICE_NAME}
. . .
Save the file, then recreate all the services with:
docker compose up -d --force-recreate
[+] Running 4/4
✔ Container json-to-yaml-auth Started 13.6s
✔ Container json-to-yaml-db Healthy 12.5s
✔ Container json-to-yaml-redis Healthy 12.5s
✔ Container json-to-yaml-converter Started 12.5s
Once the services are up again, repeat the request to
http://localhost:8000/auth
then take a look at the logs once more:
docker compose logs -f auth converter
You'll see that the service name is now correctly reported:
{
resource: {
attributes: {
'service.name': 'auth-service',
. . .
}
},
instrumentationScope: {
name: '@opentelemetry/instrumentation-http',
version: '0.56.0',
schemaUrl: undefined
},
traceId: '99619981a891e027234e27acdbfcc2a0',
parentId: undefined,
traceState: undefined,
name: 'GET',
id: '0f9741d356468e14',
kind: 1,
timestamp: 1734027011683000,
duration: 40781.088,
attributes: {
. . .
},
status: {
code: 0
},
events: [],
links: []
}
The instrumentationScope
shows that the instrumentation was handled by the
@opentelemetry/instrumentation-http
library, while the traceId
uniquely
identifies the trace that this span belongs to.
Since this is a root span, the parentId
is undefined, and the kind
property
indicates that this is a server-side span (represented by the value of 1). The
timestamp
denotes when the span began, and the duration
reflects how long
the request took to process in microseconds.
The attributes
section captures various HTTP and network details, providing
context about the request's origin, destination, and behavior.
For further details on how OpenTelemetry represents telemetry data (including logs, traces, and metrics), consult our comprehensive OTLP guide.
In the next step, you'll set up the OpenTelemetry Collector to collect and export the raw span data to Jaeger, an open source distributed tracing backend tool.
Step 3 — Setting up the OpenTelemetry Collector
The OpenTelemetry Collector is the recommended way to collect telemetry data from instrumented services, process them, and export them to one or more observability backends.
You can set it up by adding a new collector
service to your
docker-compose.yml
file as follows:
[docker-compose.yml]
services:
# . . .
collector:
container_name: json-to-yaml-collector
image: otel/opentelemetry-collector:latest
volumes:
- ./otelcol.yaml:/etc/otelcol/config.yaml
networks:
- json-to-yaml-network
. . .
The collector
service uses
otel/opentelemetry-collector
image and it mounts the (currently nonexistent) local configuration file
(otelcol.yaml
) into the container. If you're using the
Contrib distribution
instead, ensure that your configuration file is mounted to the appropriate path
like this:
collector:
container_name: json-to-yaml-collector
image: otel/opentelemetry-collector-contrib:latest
volumes:
- ./otelcol.yaml:/etc/otelcol-contrib/config.yaml
Once you've saved the changes, create the collector configuration file in your project root and populate it with the following contents:
receivers:
otlp:
protocols:
http:
endpoint: json-to-yaml-collector:4318
processors:
batch:
exporters:
otlp/jaeger:
endpoint: json-to-yaml-jaeger:4317
tls:
insecure: true
service:
pipelines:
traces:
receivers: [otlp]
processors: [batch]
exporters: [otlp/jaeger]
This OpenTelemetry Collector configuration defines how the collector receives, processes, and exports trace data. Here's a high-level overview of its components:
Receivers
The otlp
receiver is configured to accept telemetry data via the OpenTelemetry
Protocol. It specifies that the collector will accept incoming trace data from
applications or services sending OTLP-formatted telemetry data over HTTP at the
json-to-yaml-collector:4318
endpoint.
Processors
The configuration includes a batch
processor, which is responsible for
batching multiple trace data points together before they are sent to the
exporter. This improves performance and reduces the number of outgoing requests
by sending larger, aggregated payloads.
Exporters
The otlp/jaeger
exporter is set up to send the processed trace data to a
Jaeger instance. It uses the json-to-yaml-jaeger:4317
endpoint, where the
jaeger
service is expected to be reachable (we'll set this up in the next
step).
The configuration also specifies tls.insecure: true
, indicating that the
exporter will not verify the TLS certificate of the Jaeger endpoint. This is
useful for development or testing environments but should not be used in
production settings.
Service
The service
section defines the data processing pipeline for traces. In this
case, the pipeline for traces takes data from the otlp
receiver, processes it
with the batch
processor, and then exports it using the otlp/jaeger
exporter.
Once you've configured the OpenTelemetry Collector through the otelcol.yaml
file, you need to modify your Node.js instrumentation to transmit trace spans in
the OTLP format to the Collector instead of outputting them to the console.
First, you need to install the trace exporter for OTLP (http/json) through the command below:
npm install --save @opentelemetry/exporter-trace-otlp-http
Once installed, update your otel.js
file as follows:
[otel.js]
import { getNodeAutoInstrumentations } from "@opentelemetry/auto-instrumentations-node";
import { OTLPTraceExporter } from "@opentelemetry/exporter-trace-otlp-http";
import { NodeSDK } from "@opentelemetry/sdk-node";
const exporter = new OTLPTraceExporter();
const sdk = new NodeSDK({
traceExporter: exporter,
instrumentations: [getNodeAutoInstrumentations()],
});
sdk.start();
In this code, a new instance of the OTLPTraceExporter
is configured to send
trace data to an OTLP endpoint which is configured to be
http://localhost:4318/v1/traces
by default.
Since your Collector instance is not exposed to localhost
, you need to change
this endpoint through the OTEL_EXPORTER_OTLP_ENDPOINT
environmental variable
as follows:
. . .
OTEL_EXPORTER_OTLP_ENDPOINT=http://json-to-yaml-collector:4318
services:
auth:
. . .
environment:
. . .
OTEL_SERVICE_NAME: ${AUTH_OTEL_SERVICE_NAME}
OTEL_EXPORTER_OTLP_ENDPOINT: ${OTEL_EXPORTER_OTLP_ENDPOINT}
. . .
converter:
. . .
environment:
. . .
OTEL_SERVICE_NAME: ${CONVERTER_OTEL_SERVICE_NAME}
OTEL_EXPORTER_OTLP_ENDPOINT: ${OTEL_EXPORTER_OTLP_ENDPOINT}
. . .
This updated value corresponds to the Collector's hostname within our Docker
Compose setup and the port it listens on for OTLP data over HTTP. This now means
that the generated trace data will be sent to
http://json-to-yaml-collector:4318/v1/traces
.
Under the hood, the exporter is also configured to use a BatchSpanProcessor
by
default so that the generated spans are batched before being exported.
In the next step, you'll configure a Jaeger instance to receive the trace data from the OpenTelemetry Collector.
Step 4 — Setting up Jaeger
Before you can visualize your traces, you need to set up a Jaeger instance to ingest the data from the Collector. This is easy to do through the jaegertracing/all-in-one image which which provides an easy way to run all of Jaeger's backend components and user interface in one container.
Open your docker-compose.yml
file and modify it as follows:
services:
# . . .
collector:
container_name: json-to-yaml-collector
image: otel/opentelemetry-collector:latest
volumes:
- ./otelcol.yaml:/etc/otelcol/config.yaml
depends_on:
jaeger:
condition: service_healthy
networks:
- json-to-yaml-network
jaeger:
container_name: json-to-yaml-jaeger
image: jaegertracing/all-in-one:latest
environment:
JAEGER_PROPAGATION: w3c
ports:
- 16686:16686
healthcheck:
test: [CMD, wget, -q, -S, -O, "-", "localhost:14269"]
networks:
- json-to-yaml-network
These modifications introduce a jaeger
service whose UI is exposed at
http://localhost:16686
to make it accessible outside the Docker network.
Once you've saved the file, relaunch all the services with:
docker compose up -d --build
✔ Network json-to-yaml-nodejs_json-to-yaml-network Created 0.2s
✔ Container json-to-yaml-db Healthy 11.1s
✔ Container json-to-yaml-jaeger Healthy 31.5s
✔ Container json-to-yaml-redis Healthy 11.6s
✔ Container json-to-yaml-collector Started 31.6s
✔ Container json-to-yaml-auth Started 11.6s
✔ Container json-to-yaml-converter Started 11.8s
With the services ready, head to your application at http://localhost:8000
and
generate some traces by authenticating with GitHub and converting some JSON to
YAML:

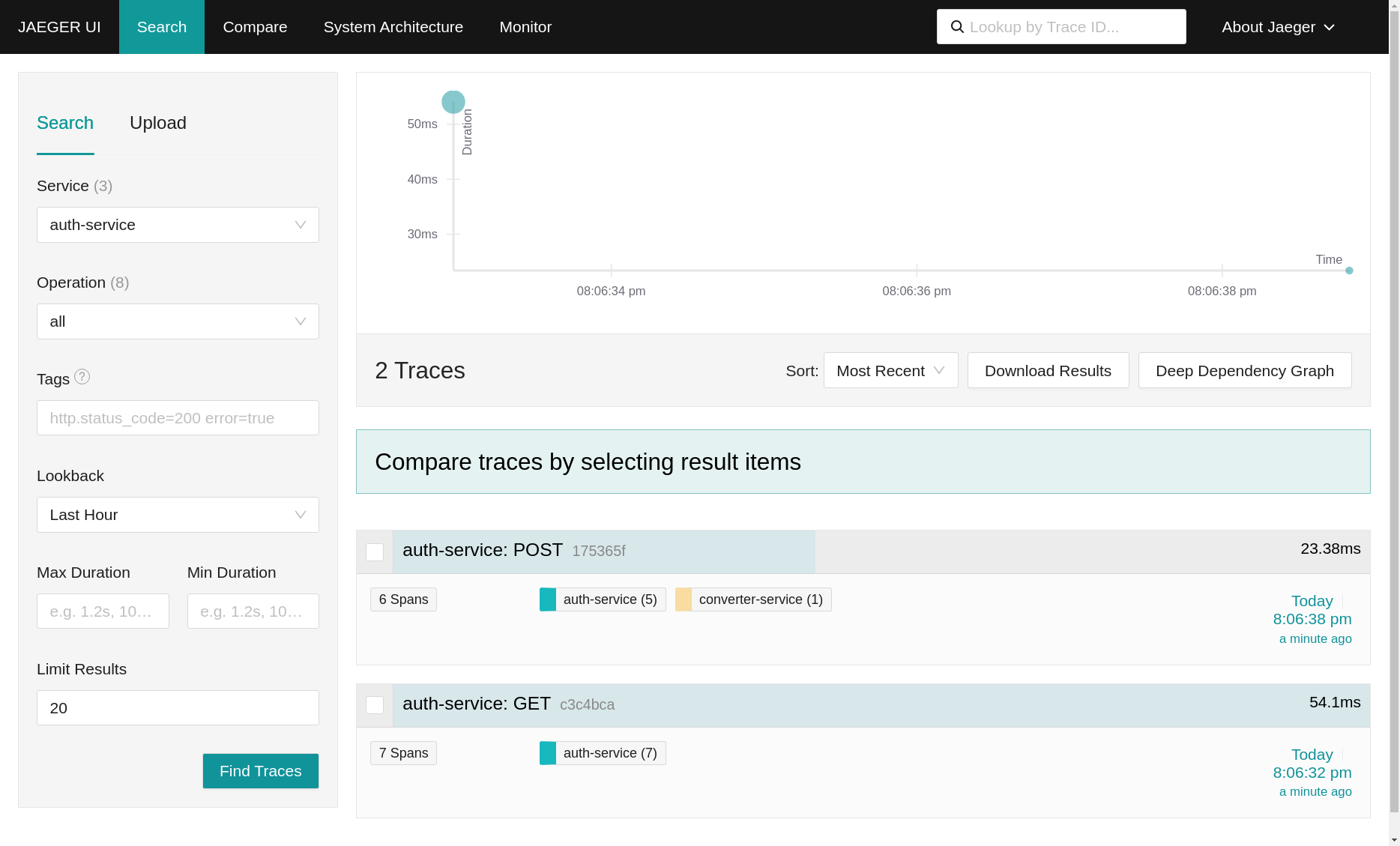

Then, open the Jaeger UI in your browser at http://localhost:16686
, find the
auth-service entry, and click Find Traces:

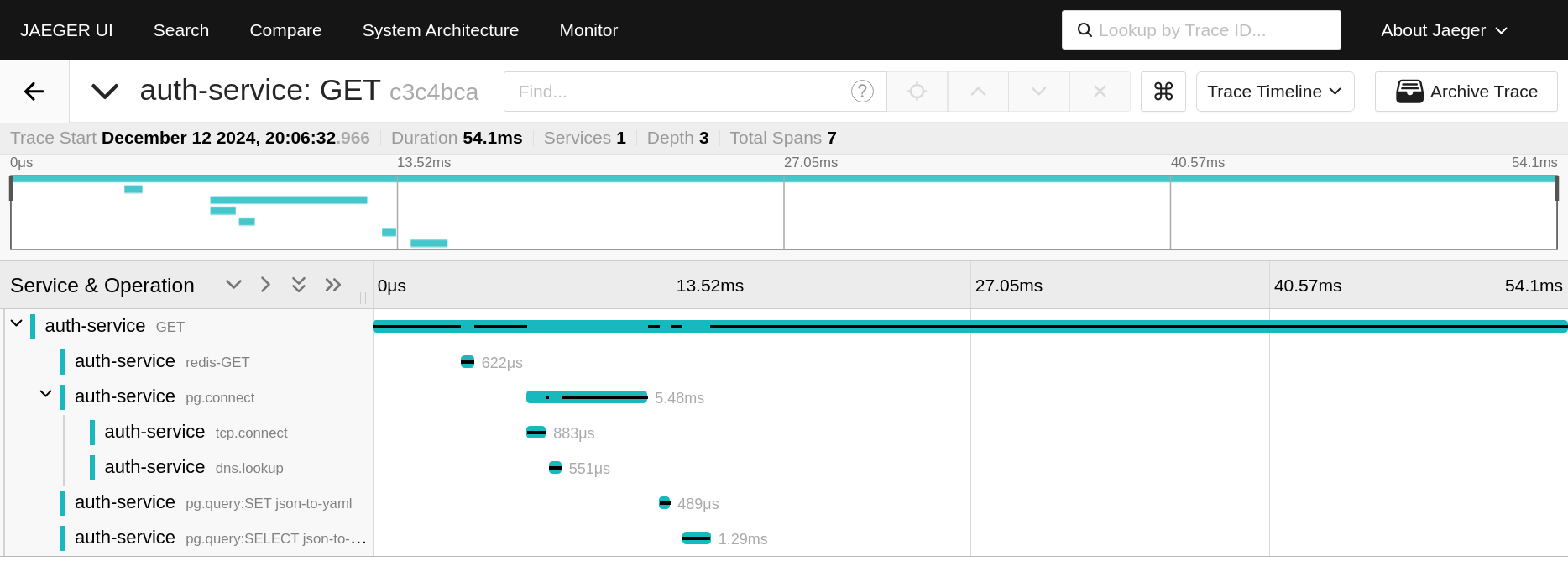

You should see a list traces generated by the application. Click on any one of them to see the component spans. For example, here are the spans for an authenticated request to the homepage:
The trace timeline shows you the chronological order of events within that specific request, and you'll see where the interactions with Redis and PostgreSQL occur.
In the next section, we'll look at how to customize the Node.js instrumentation to make the generated traces even more meaningful.
Step 5 — Customizing the Node.js auto instrumentation
Now that you've started seeing your application traces in Jaeger, let's look at some of the customization options for the automatic instrumentation.
First, let's disable the instrumentation for filesystem calls so that spans are
no longer generated for the fs
, tcp
, and dns
calls you may have observed
in the previous section.
You can do this by disabling the @opentelemetry/instrumentation-fs
and
@opentelemetry/instrumentation-net
, and @opentelemetry/instrumentation-dns
packages through the OTEL_NODE_DISABLED_INSTRUMENTATIONS
environmental
variable:
OTEL_NODE_DISABLED_INSTRUMENTATIONS=fs,net,dns
However, it's usually more more convenient to only explicitly enable the
instrumentations you need through the OTEL_NODE_ENABLED_INSTRUMENTATIONS
as
in:
. . .
OTEL_NODE_ENABLED_INSTRUMENTATIONS=http,fastify,redis,pg,undici
services:
auth:
. . .
environment:
. . .
OTEL_EXPORTER_OTLP_ENDPOINT: ${OTEL_EXPORTER_OTLP_ENDPOINT}
OTEL_NODE_ENABLED_INSTRUMENTATIONS: ${OTEL_NODE_ENABLED_INSTRUMENTATIONS}
. . .
converter:
. . .
environment:
. . .
OTEL_EXPORTER_OTLP_ENDPOINT: ${OTEL_EXPORTER_OTLP_ENDPOINT}
OTEL_NODE_ENABLED_INSTRUMENTATIONS: ${OTEL_NODE_ENABLED_INSTRUMENTATIONS}
. . .
This way, only the following instrumentations will be enabled:
- @opentelemetry/instrumentation-http:
Instrumentation for the
http
andhttps
module. - @opentelemetry/instrumentation-fastify: Fastify instrumentation.
- @opentelemetry/instrumentation-redis: Instrumentation for the node_redis package.
- @opentelemetry/instrumentation-pg: Automatic instrumentation for the pg module.
- @opentelemetry/instrumentation-undici:
Instrumentation for the Node.js global
fetch
API.
Next, let's change the span names for incoming requests from generic names like
GET
or POST
to more specific names like HTTP GET <endpoint>
. Modify your
otel.js
file as follows:
// . . .
const sdk = new NodeSDK({
traceExporter: exporter,
instrumentations: [
getNodeAutoInstrumentations({
"@opentelemetry/instrumentation-http": {
requestHook: (span, request) => {
span.updateName(`HTTP ${request.method} ${request.url}`);
},
},
}),
],
});
To customize a specific instrumentation, you need to provide the name of the
instrumentation as a key to getNodeAutoInstrumentation()
and its configuration
object as the value.
For example, the
@opentelemetry/instrumentation-http
is what instruments the HTTP requests received by the server so its what you
need to customize here. The requestHook()
updates the span name to something
more readable so that you can easily distinguish it amongst other spans.
After saving the file, run the command below to restart the auth
and
converter
services:
docker compose up -d auth converter
Once they're back up and running, generate some new spans by clicking around the application UI. You will now observe the following traces in Jaeger with updated span names:
To customize the other instrumentation packages, please see their respective documentation.
Step 6 — Adding custom trace instrumentation
While instrumentation libraries capture telemetry at the system boundaries, such as inbound/outbound HTTP requests or database calls, they don't capture what's happening within your application itself. To achieve that, you'll need to write custom instrumentation.
In this section, let's add custom instrumentation for the JSON to YAML conversion function. Currently, you'll see the following trace for such operations:
This trace shows that an HTTP POST request was received by the auth-service
to
the /convert
endpoint, which subsequently issued a POST request to the
converter-service
's /convert-yaml
endpoint.
Let's develop this trace further, by adding a span for the conversion process itself, not just the entire request.
To do this, you'll need to modify your converter
service as follows:
import process from "node:process";
import { trace } from "@opentelemetry/api";
import { stringify } from "yaml";
const tracer = trace.getTracer(process.env.OTEL_SERVICE_NAME);
function convertToYAML(req, reply) {
let body;
try {
const span = tracer.startSpan("parse json");
body = JSON.parse(req.body.json);
span.end();
} catch (err) {
req.log.error(err, "Parsing JSON body failed");
return reply.status(400).send("Invalid JSON input");
}
const span = tracer.startSpan("convert json to yaml");
const yaml = stringify(body);
span.end();
reply.send(yaml);
}
export { convertToYAML };
This code snippet introduces some custom spans to your application.
First, it obtains a tracer
instance using
trace.getTracer(process.env.OTEL_SERVICE_NAME)
. This tracer is associated with
your service name to provide context for the spans it generates.
Before you can obtain a working tracer with the getTrace()
method, you need to
register a trace provider with trace.setGlobalTracerProvider()
. However, since
we're using the auto-instrumentations-node
package, this step is unnecessary
as global tracer has already been registered.
Once you have a tracer
, you can create spans around the operations you'd like
to track. You only need to call startSpan()
before the operation and
span.end()
afterwards.
Once you restart the converter
service with:
docker compose up -d converter
You can repeat the JSON to YAML conversion once again in your application. When you return to Jaeger, you'll observe that two new spans have been added to the traces generated for such operations:
As you can see, parsing the JSON body was much quicker than the conversion from JSON to YAML. While this is not an interesting insight, it serves to illustrate just how you can track various operations in your services to figure out what the bottleneck is when debugging problems.
Final thoughts
I hope this tutorial has equipped you with a solid understanding of OpenTelemetry and how to instrument your Node.js applications to generate traces.
To deepen your knowledge, explore the official OpenTelemetry documentation, which provides a more comprehensive insight into its features.
The OpenTelemetry Registry is also a valuable resource for discovering a wide range of auto-instrumentation libraries tailored to popular Go frameworks and libraries.
You can find the complete code for this tutorial on GitHub.
Thanks for following along, and happy tracing!
Make your mark
Join the writer's program
Are you a developer and love writing and sharing your knowledge with the world? Join our guest writing program and get paid for writing amazing technical guides. We'll get them to the right readers that will appreciate them.
Write for usBuild on top of Better Stack
Write a script, app or project on top of Better Stack and share it with the world. Make a public repository and share it with us at our email.
community@betterstack.comor submit a pull request and help us build better products for everyone.
See the full list of amazing projects on github
