Understanding the OpenTelemetry Transform Language

Ayooluwa Isaiah
Updated on September 22, 2024

In the ever-expanding world of observability, where tools and data formats are constantly evolving, it's not uncommon to find yourself grappling with telemetry data that doesn't quite align with your needs. The vast amounts of data generated only adds to the complexity, making it harder to manage and extract actionable insights.

This is where the OpenTelemetry Collector comes in to provide a powerful observability pipeline middleware that can receive, process and export data at scale. At the heart of its processing capabilities is the OpenTelemetry Transform Language (OTTL), a purpose-built language designed to transform telemetry data, regardless of its structure or content.

In this guide, we'll begin with an in-depth overview of OTTL, exploring its syntax, key features, unique aspects, and common use cases. We'll then walk through a real-world example that shows how OTTL can address practical telemetry challenges.

By the end of this exploration, you'll possess the skills and knowledge to confidently transform, filter, sample, and route your observability data with OTTL statements.

Let's dive in!

Prerequisites

Before proceeding with this article, ensure that you're familiar with the basics of OpenTelemetry and key concepts related to the OpenTelemetry Collector. These foundational topics will help you better understand the application of OTTL as covered in this guide.

What is the OpenTelemetry Transform Language?

OTTL is a domain-specific language (DSL) used within the OpenTelemetry Collector for applying mutations, filtering, and enrichments to telemetry signals—such as traces, metrics, and logs—before they are sent to various observability backends.

You might wonder why a new language like OTTL is introduced instead of relying on YAML, which is the configuration language of the Collector. In a nutshell, it's because OTTL offers far greater flexibility and performance.

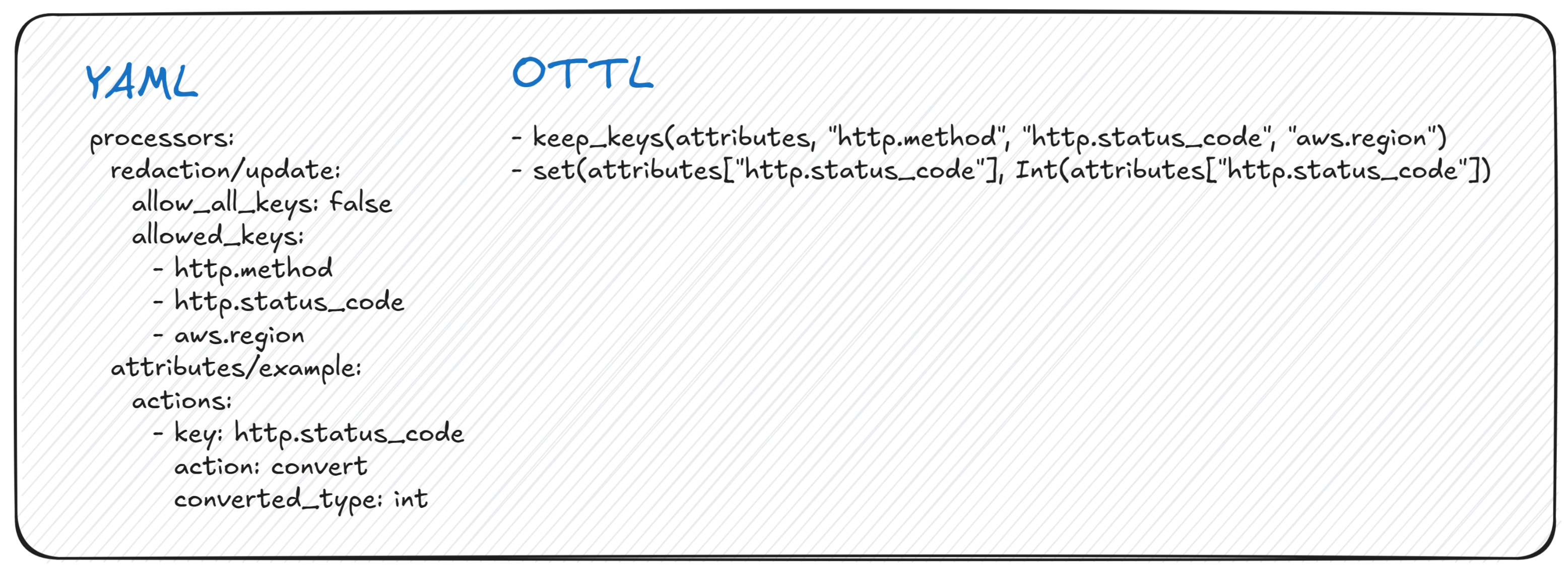

YAML vs OTTL for transforming telemetry data

Traditional configuration languages like YAML are often limited to static transformations, which means they can only perform simple tasks without much room for customization. Additionally, YAML configurations can become cumbersome and verbose, even for relatively simple pipelines, due to their inherent limitations.

In contrast, OTTL operates directly within the Collector process, giving it immediate access to telemetry data. This reduces the overhead associated with separate execution environments or language runtimes and mitigates potential risks such as memory safety issues, dynamic code execution vulnerabilities, and security concerns stemming from unaudited dependencies.

Although OTTL is not a full-fledged programming language, it incorporates many familiar idioms from general-purpose languages that make it possible to add, remove, or modify attributes, perform calculations, and implement conditional logic based on specific criteria within your telemetry data.

What is pipeline data?

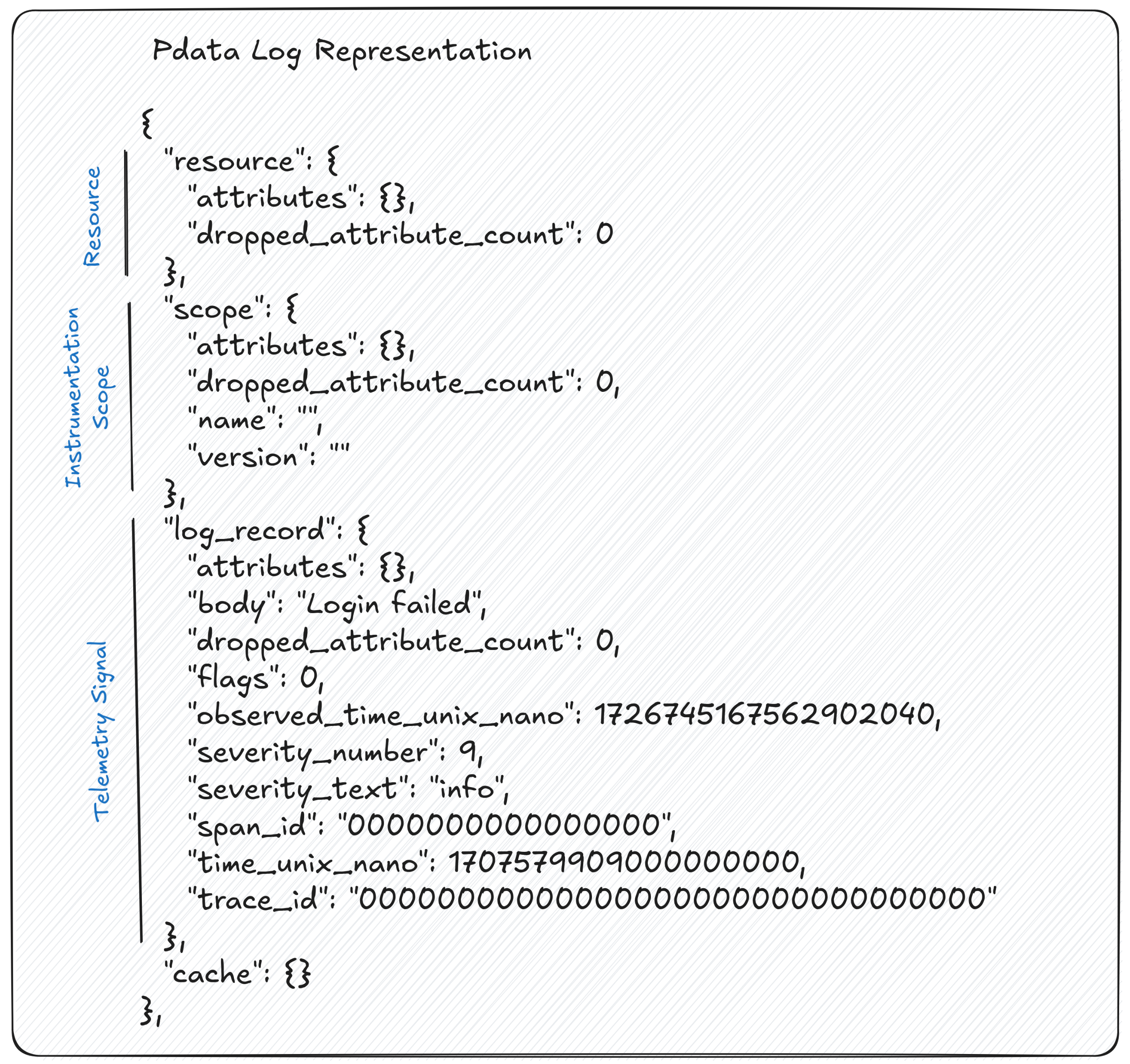

Pdata representation of a Log entry

Pipeline data (pdata) is the in-memory representation of telemetry data as it flows through the OpenTelemetry Collector pipeline.

All incoming data is transformed into this format, processed within the pipeline using this format, and finally converted from pdata to the export format when it's time for exporters to send the data out.

Before OTTL was introduced, components like the File Log Receiver used stanza for log transformation. However, this adds significant overhead due to the conversion of pdata into stanza's internal format for processing, and then back into pdata.

OTTL addresses this by executing directly on the pdata representation, eliminating the need for additional conversion steps. This reduces overhead and improves performance while ensuring full compatibility with pdata's hierarchical structure.

This structure not only holds the telemetry signal itself but also provides context about the entity generating the data and the logical unit within the application associated with the emitted telemetry.

A brief overview of the OTTL grammar

Before discussing the practical applications of OTTL, let's take a moment to familiarize ourselves with its underlying structure – the OTTL grammar. Understanding the grammar will provide you with the foundation to construct effective OTTL statements for transforming your telemetry data.

Statements

Statements are the fundamental units of transformation in OTTL as each one defines a specific modification to be applied to your telemetry data.

While a statement operates on a single signal type (traces, metrics, or logs), you can declare similar or related statements across multiple signal types as needed.

Here are a few examples that demonstrate how OTTL statements work to alter telemetry data:


replace_all_matches(attributes, "/user/*/list/*", "/user/{userId}/list/{listId}")

delete_key(attributes, attributes["http.request.header.authorization"])

set(attributes["environment"], "production") where attributes["service.name"] == "my_service"

Expressions

Expressions are evaluated within OTTL statements to determine the specific action to be undertaken. This can involve accessing attributes of the telemetry data for transformation, performing calculations, or making logical comparisons.

The most common expressions are math, boolean, path, and function call expressions such as:


metric.sum / metric.count

"error" where attributes["http.status_code"] >= 400

Concat("Log message: ", body)

Literals

Literals are the fixed values you directly embed within your expressions. They represent specific values that do not change during execution. OTTL supports several types of literals:

  • Strings: Enclosed in double quotes, such as "a name".
  • Integers: Whole numbers like 123 or -456. They are encoded as int64 for a wide numeric range.
  • Floating-point numbers: Numbers with decimal points, such as 3.14 or -0.01. They are encoded as float64 to support precise calculations.
  • Booleans: true or false.
  • Nil: Represents the absence of a defined value.
  • Byte slices: Represented as hexadecimal strings and prefixed with 0x.

Maps

Maps in OTTL allow you to organize data into key-value pairs, similar to JSON objects:


{"some_key": "some_value"}

"field1": { "a_key": 10 }

Lists

Lists in OTTL serve as a way to group multiple values, similar to arrays in general-purpose languages:


["first", "second", "third"]

["a", attributes["some_key"], Concat(["a", "b"], "c")]

Paths

Path expressions are used to reference the value of a telemetry field. They are constructed using a combination of lowercase identifiers, dots (.), and square brackets enclosing either string keys (["key"]) or integer keys ([0]).

For example, you can access span data using path expressions like these:


attributes["http.url"]

trace_state["my_custom_tag"]

trace_id.string

Enums

Enums are predefined constants for OTLP values written in uppercase letters. During the parsing process, they are recognized and transformed into 64-bit integer values (int64) which allow them to be used in OTTL expressions that accept int64 inputs.

The available enums are context-dependent, varying based on where you're applying OTTL. For example, in the context of a span, you might use enums like:

  • STATUS_CODE_UNSET
  • STAUS_CODE_OK
  • STATUS_CODE_ERROR

These enums correspond to the standard OTLP status codes, providing a clear and readable way to handle specific status values in telemetry data transformations.

Operators

OTTL supports various operators for performing calculations, comparisons, and logical operations on your telemetry data. These include:

  • Arithmetic operators like +, -, *, /, and (),
  • Comparison operators like ==, !=, >, <, <=, and >=,
  • And logical operators like and, or, and not.

Here are some examples of their use in OTTL expressions:


variable == "a string"

3 > 1

attributes["some-attr"] != nil

not false

Conditional logic

The ability to selectively apply transformations based on specific criteria or attribute values is often necessary when working with telemetry data. OTTL addresses this need by allowing you to incorporate conditional logic directly into your statements using the where clause:


set(attributes["environment"], "production") where attributes["host.name"] == "my_host"

Context

In OTTL, context refers to the specific type of telemetry data your statements operate on. The context defines the scope of the transformations, ensuring that changes are applied to the correct elements within your observability pipeline. Each context gives access to fields and attributes relevant to that particular type of telemetry.

Here's a breakdown of the available contexts:

  • Resource: Transformations applied here affect the resource attributes, which provide metadata about the entity producing the telemetry.
  • Span: This context focuses on individual spans within a trace. You can manipulate span attributes, filter spans, or add events.
  • Span event: Operations in this context target the events within a span, which capture specific occurrences or log messages during a span's execution.
  • Metric: Transformations in this context modify metrics. You can aggregate, calculate, or adjust metric values and labels.
  • Log: This context focuses on log entries, allowing you to extract information, filter logs based on content, or add additional context.
  • Datapoint: Operations here impact individual data points within metrics, offering fine-grained control over metric data.
  • Instrumentation scope: This scope applies transformations to OTLP instrumentation scope, which provides information about the library or component responsible for generating the telemetry.

Functions

OTTL functions are predefined operations that perform specific transformations or modifications to telemetry data. These functions fall into two main categories:

1. Editors

They mutate the underlying telemetry payload directly. Examples include:

  • delete_key(): Removes a specific key from a map.
  • replace_pattern(): Replaces a substring matching a pattern with another value.
  • append(): Adds new values to a target array.

2 Converters

They are pure functions that operate on one or more values to produce a single output that may be used in OTTL expressions. Examples include:

  • Concat(): Concatenates multiple strings into a single result.
  • IsBool(): Checks whether a value is a boolean.
  • Len(): Returns the length of a list or string.
  • ParseJSON(): Parses a JSON string and returns a structured object.

The OTTL standard library

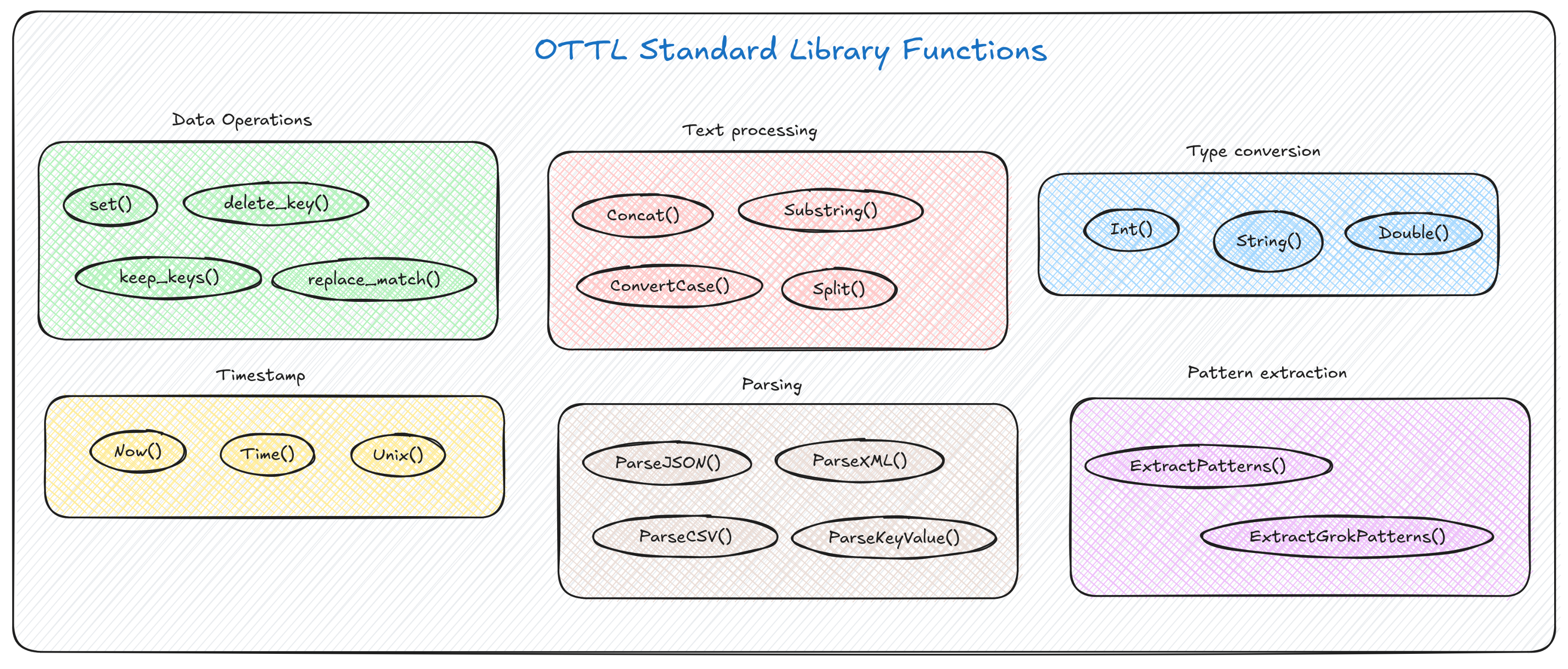

OTTL standard library functions

The OTTL standard library is a collection of built-in functions and operators that provide essential capabilities for data processing and transformation within OTTL expressions.

It provides a wide range of tools to manipulate strings, handle timestamps, perform mathematical calculations, and more, ensuring a standardized way to work with telemetry data.

Here are some of the key components of the standard library you'll commonly use when working with OTTL:

  • Data operations: OTTL provides several editor functions for manipulating telemetry data such as set(), delete_key(), keep_keys(), and others.

  • Text processing: These functions handle operations on string values and they include Concat(), ConvertCase(), Substring(), Format() and others.

  • Type conversion: These facilitate converting data between different types, such as Int(), String(), or Double().

  • Timestamp functions: OTTL provides powerful utilities for handling and manipulating timestamps including Time(), Now(), Unix(), and more.

  • Hashing: You can hash attribute values using your preferred cryptographic algorithm such as SHA1(), MD5(), SHA256(), or SHA512().

  • Parsing functions: These functions enable parsing of different data formats including URL(), ParseJSON(), ParseXML(), and others.

  • Pattern extraction: OTTL allows for extracting patterns from unstructured data through regular expressions (ExtractPatterns()) or grok patterns (ExtractGrokPatterns()).

For a complete list of available functions and their signatures, be sure to refer to the OTTL Function documentation.

Error handling

Telemetry data is notoriously unpredictable, so its essential to account for error handling when working with OTTL.

There are two categories of errors to take note of:

1. Startup errors

These errors arise when the OpenTelemetry Collector starts up, stemming from problems like incorrect syntax in your configuration file, invalid arguments passed to functions, or other configuration mishaps.

The Collector will log these errors to help you pinpoint and rectify the source of the problem. A typical error message might look like this:


Error: invalid configuration: processors::transform/redact: unable to parse OTTL statement "set(\"\")": error while parsing arguments for call to "set": incorrect number of arguments. Expected: 2 Received: 1

2. Function errors

Function errors occur during the actual execution of OTTL statements. Two common scenarios trigger these errors:

  • Type mismatch: When a function expects a specific type from a path expression, but receives a different type or nil, the function will generate an error.

  • Failed type conversions: Some OTTL functions try to convert input values to a specific type. An error is generated if they encounter a type they can't handle.

By default, function errors cause the current telemetry data to be dropped. However, you have the power to control this behavior using the error_mode setting within your processor configuration:

config.yaml
processors:
  transform/redact:
error_mode: ignore

You can opt for one of three possible values:

  • propagate (default): The error is propagated up the pipeline, discarding the current telemetry data.
  • silent: Errors are silently ignored, and processing continues to the following statement.
  • ignore: Errors are ignored but logged, and processing continues uninterrupted.

While the ignore setting can help prevent data loss, it's crucial to actively monitor your logs for any errors. This allows you to promptly identify and address issues in your OTTL logic to ensure the accuracy and completeness of your telemetry data.

Where can you use OTTL?

There are several places where you can use OTTL to transform or manipulate telemetry data within your OpenTelemetry Collector pipeline:

1. Processors

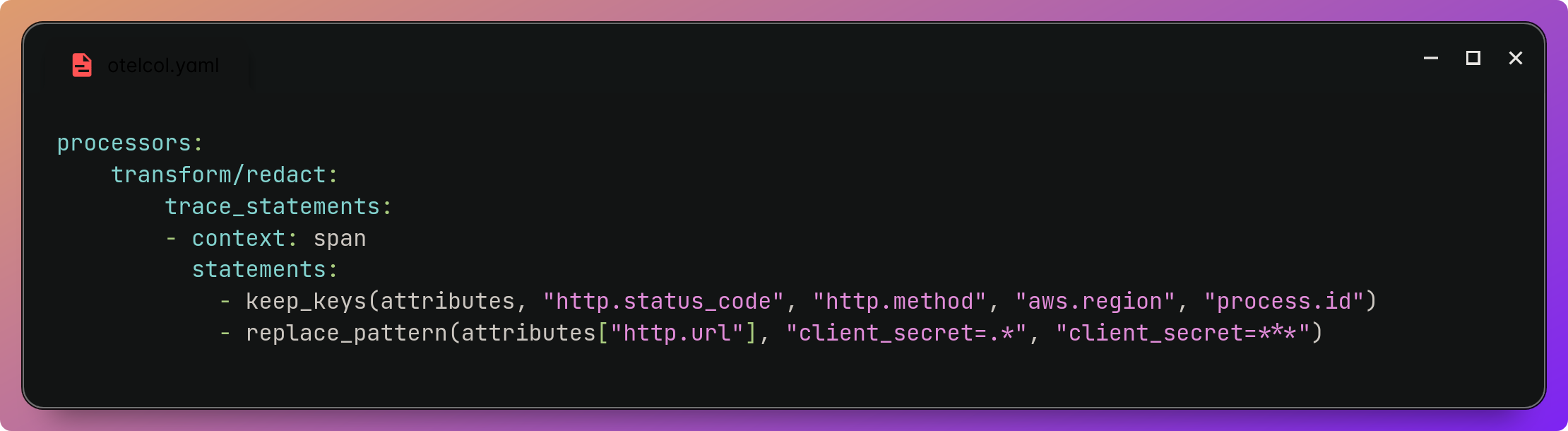

Using OTTL in the transform processor

The most common place to employ OTTL is when you need to filter, enrich, or refine telemetry data through processors. Here are a few notable processors that support OTTL:

  • Transform processor: This processor is entirely driven by OTTL, allowing you to perform extensive modifications on incoming traces, metrics, and logs. You can add, remove, or change attributes, calculate new metrics, and even restructure log messages.
  • Filter processor: OTTL is used here to define conditions that determine whether specific telemetry data should be dropped or kept.
  • Routing processor: OTTL statements act as routing conditions for directing telemetry data to specific exporters based on its content or attributes.
  • Tail sampling processor: OTTL conditions are used to determine when to sample a trace.

2. Connectors

The routing and count connectors can also use OTTL conditions for decision-making. These connectors highlight the growing adoption of OTTL as a standardized way to define configuration and processing logic in other Collector components besides processors.

3. Custom components

You can integrate OTTL into your custom components to leverage its flexibility for data transformation and decision-making. By using the ottl package, you can build custom processors or connectors that support OTTL functionality, allowing you to implement specific transformations or filtering logic within your component.

Debugging OTTL statements

When your OTTL statements aren't behaving as anticipated, it's time to roll up your sleeves and troubleshoot. The first step is enabling debug logging within the Collector.

This instructs the Collector to reveal the structure of your telemetry data both before and after each transformation, which should provide clues for pinpointing the issue.

config.yaml
service:
  telemetry:
    logs:
      level: debug

Depending on the processor you're using, you'll start seeing logs that look like this:


2024-09-18T17:21:29.159Z      debug   ottl@v0.108.0/parser.go:281     initial TransformContext        <initial telemetry payload>
2024-09-18T17:21:29.159Z      debug   ottl@v0.108.0/parser.go:302     TransformContext after statement execution      <telemetry payload after transformation>

The <telemetry payload> placeholders within these messages are JSON objects that depict how the Collector perceives your data before and after each OTTL statement is applied.

To quickly identify the changes made by your OTTL statements, you can feed these JSON objects into a diffing tool. This will highlight the exact modifications, helping you understand whether your statements produce the intended results.

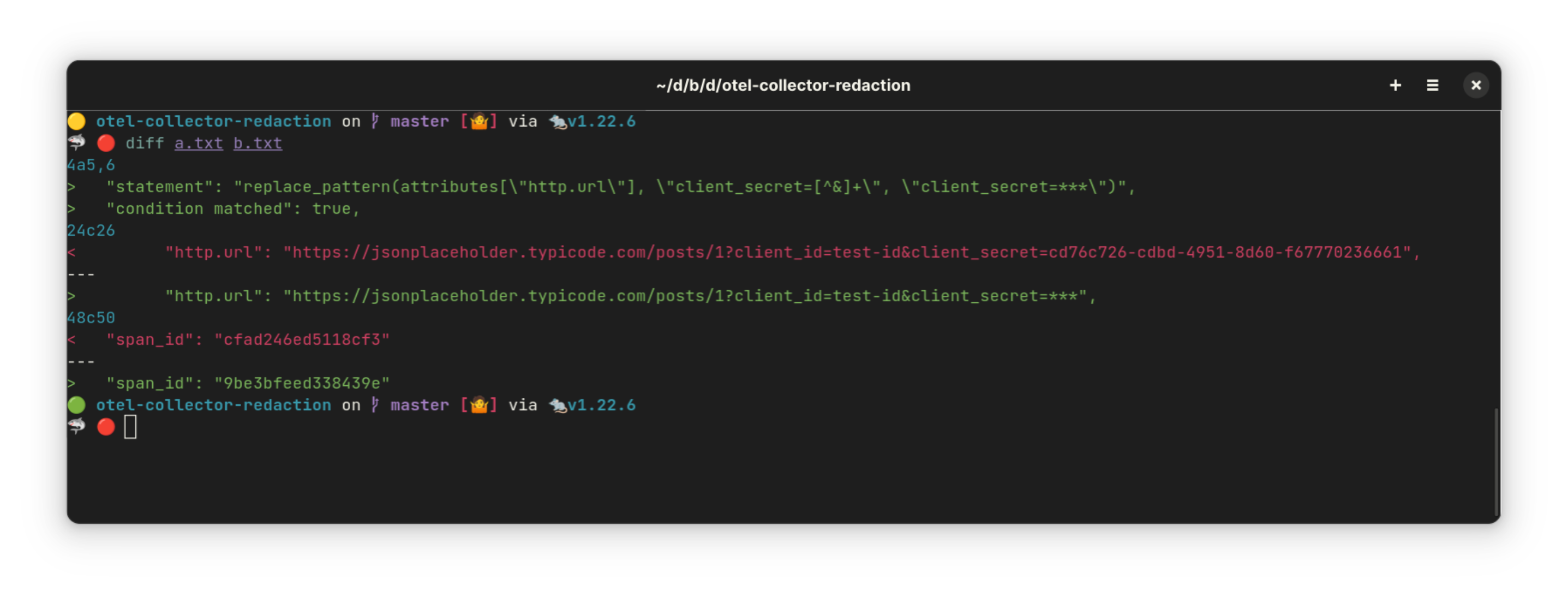

Screenshot of Diff command

By closely monitoring these logs and comparing the data at each step, you can fine-tune your OTTL statements and ensure that they behave as expected.

A practical example: parsing Linux authentication logs

Let's explore how OTTL can help extract key attributes from unstructured log records, specifically focusing on Linux authentication logs.

The scenario

Assuming you've configured the OpenTelemetry Collector to read from the system authentication log (/var/log/auth.log), which contains entries like these:

/var/log/auth.log
Feb 10 15:45:09 ubuntu-lts sshd[47341]: Failed password for root from 103.106.189.143 port 60824 ssh2
Feb 10 15:45:11 ubuntu-lts sshd[47341]: Connection closed by authenticating user root 103.106.189.143 port 60824 [preauth]
Feb 10 15:45:16 ubuntu-lts sshd[47339]: Received disconnect from 180.101.88.228 port 11349:11:  [preauth]
Feb 10 15:45:16 ubuntu-lts sshd[47339]: Disconnected from authenticating user root 180.101.88.228 port 11349 [preauth]

You might have a receivers configuration that looks like this:

config.yaml
receivers:
  filelog:
    include: [/var/log/auth.log]

In this scenario, we aim to identify and extract meaningful information from failed authentication attempts.

Filtering with OTTL

To focus on failed password attempts, you can use the filter processor with an OTTL condition to retain only relevant log entries:

config.yaml
processors:
  filter/ottl:
    error_mode: ignore
    logs:
      log_record:
        - not IsMatch(body, "Failed password")

The IsMatch() converter function checks if the body of the log record contains the "Failed password" phrase, while not negates the result, leading to all records without the phrase being dropped.

If you have debug logging enabled for the Collector, you will see the underlying objects produced for each piece of telemetry data in the pipeline. The entries containing Failed password have a match property set to false:

Output
2024-09-19T10:20:57.119Z      debug   ottl@v0.108.0/parser.go:394     condition evaluation result {
"match": false,
"TransformContext": { . . . "log_record": { . . .
"body": "Feb 10 15:45:09 ubuntu-lts sshd[47341]: Failed password for root from 103.106.189.143 port 60824 ssh2",
. . . }, "cache": {} } }

Those without such a phrase will have match: true instead leading to them being dropped:

Output
2024-09-19T10:20:57.119Z      debug   ottl@v0.108.0/parser.go:394     condition evaluation result {
"match": true,
"TransformContext": { . . . "log_record": { . . .
"body": "Feb 10 15:45:16 ubuntu-lts sshd[47339]: Received disconnect from 180.101.88.228 port 11349:11: [preauth]",
. . . }, "cache": {} } }

Now that we've filtered out the irrelevant data, let's focus on transforming the data we actually want to keep.

Log parsing with OTTL

Let's go ahead and extract meaningful attributes from the "Failed password" events using the transform processor:

config.yaml
processors:
  transform/parse_failed_pw:
    log_statements:
      - context: log
        statements:

If you intend to modify the body of a log entry in the pipeline, the OpenTelemetry Semantic Conventions recommend storing the complete original log record under a log.record.original attribute:

config.yaml
processors:
  transform/parse_failed_pw:
    log_statements:
      - context: log
        statements:
- set(attributes["log.record.original"], body)

The attributes property provided in the log context refers to the attributes of the log being processed. When the highlighted statement is executed, a new log.record.original property is added to the log_record.attributes object, and its value is the log_record.body as shown below:

Output
{
  "log_record": {
    "attributes": {
      "log.record.original": "Feb 10 15:45:09 ubuntu-lts sshd[47341]: Failed password for root from 103.106.189.143 port 60824 ssh2"
    }
  }
}

Next, use the ExtractPatterns() function to pull out important details, such as the timestamp, hostname, username, and IP address:

config.yaml
processors:
  transform/parse_failed_pw:
    log_statements:
      - context: log
        statements:
          - set(attributes["log.record.original"], body)
- merge_maps(attributes, ExtractPatterns(body, "^(?P<timestamp>\\w+ \\w+ [0-9]+:[0-9]+:[0-9]+) (?P<hostname>\\S+) (?P<appname>\\S+)(\\[(?P<pid>\\d+)\\]). (?P<event>Failed password) for (invalid user )?(?P<username>\\w+) from (?P<ip_address>[\\d.]+) port (?P<port>\\d+) (?P<protocol>\\w+)$"), "upsert")

The ExtractPatterns() function uses regular expressions with named capture groups to extract key details from the log message and store them as attributes. The output now includes attributes like timestamp, hostname, pid, username, and ip_address:

Output
{
    "attributes": {
  "log_record": {
      "timestamp": "Feb 10 15:45:09",
      "hostname": "ubuntu-lts",
      "pid": "47341",
      "username": "root",
      "ip_address": "103.106.189.143",
      "port": "60824",
      "log.record.original": "Feb 10 15:45:09 ubuntu-lts sshd[47341]: Failed password for root from 103.106.189.143 port 60824 ssh2"
    }
  }
}

Some of the extracted attributes need further refinement. For example, pid and port should be converted to integers, and timestamp should be transformed into Unix time. It's also a good idea to update the time, severity_number and severity_info properties accordingly:

config.yaml
processors:
  transform/parse_failed_pw:
    log_statements:
      - context: log
        statements:
          - set(attributes["log.record.original"], body)
          - merge_maps(attributes, ExtractPatterns(body, "^(?P<timestamp>\\w+ \\w+ [0-9]+:[0-9]+:[0-9]+) (?P<hostname>\\S+) (?P<appname>\\S+)(\\[(?P<pid>\\d+)\\]). (?P<event>Failed password) for (invalid user )?(?P<username>\\w+) from (?P<ip_address>[\\d.]+) port (?P<port>\\d+) (?P<protocol>\\w+)$"), "upsert")
- set(severity_number, SEVERITY_NUMBER_INFO)
- set(severity_text, "info")
- set(time, Time(attributes["timestamp"], "%b %d %H:%M:%S"))
- set(attributes["timestamp"], UnixNano(time))
- set(attributes["pid"], Int(attributes["pid"]))
- set(attributes["port"], Int(attributes["port"]))

The final statement will produce the following debug log, where you'll see the cumulative effect of all your transformations:

Output
2024-09-19T11:26:07.663Z      debug   ottl@v0.108.0/parser.go:302     TransformContext after statement execution {
  "kind": "processor",
  "name": "transform/parse_failed_pw",
  "pipeline": "logs",
  "statement": "set(attributes[\"port\"], Int(attributes[\"port\"]))",
  "condition matched": true,
  "TransformContext": {
    "resource": {
      "attributes": {},
      "dropped_attribute_count": 0
    },
    "scope": {
      "attributes": {},
      "dropped_attribute_count": 0,
      "name": "",
      "version": ""
    },
    "log_record": {
      "attributes": {
        "log.file.name": "/var/log/auth.log",
"log.record.original": "Feb 10 15:45:09 ubuntu-lts sshd[47341]: Failed password for root from 103.106.189.143 port 60824 ssh2",
"timestamp": 1707579909000000000,
"hostname": "ubuntu-lts",
"appname": "sshd",
"pid": 47341,
"event": "Failed password",
"username": "root",
"ip_address": "103.106.189.143",
"port": 60824,
"protocol": "ssh2"
}, "body": "Feb 10 15:45:09 ubuntu-lts sshd[47341]: Failed password for root from 103.106.189.143 port 60824 ssh2", "dropped_attribute_count": 0, "flags": 0, "observed_time_unix_nano": 1726745167562902040,
"severity_number": 9,
"severity_text": "info",
"span_id": "0000000000000000",
"time_unix_nano": 1707579909000000000,
"trace_id": "00000000000000000000000000000000" }, "cache": {} }, "trace_id": "0d96a4b9a90d524ef822fe548ad7a933", "span_id": "29af57a2ba4b6c49" }

This example merely scratches the surface of OTTL's potential, but it should provide a solid grasp of how it functions and its capacity to transform diverse telemetry data—be it logs, metrics, or traces.

Final thoughts

In this article, we've explored the intricacies of the OpenTelemetry Transform Language, giving you the foundational knowledge to leverage its power for telemetry transformations.

While this overview should be enough to get you started, I encourage you to consult the official OTTL documentation for more detailed and up-to-date information.

If you'd like to follow the development of the language, ensure to check out the OpenTelemetry Contrib GitHub repository.

Thanks for reading, and until next time!

Author's avatar
Article by
Ayooluwa Isaiah
Ayo is the Head of Content at Better Stack. His passion is simplifying and communicating complex technical ideas effectively. His work was featured on several esteemed publications including LWN.net, Digital Ocean, and CSS-Tricks. When he’s not writing or coding, he loves to travel, bike, and play tennis.
Got an article suggestion? Let us know
Next article
An Introduction to the OpenTelemetry Protocol (OTLP)
Licensed under CC-BY-NC-SA

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

Make your mark

Join the writer's program

Are you a developer and love writing and sharing your knowledge with the world? Join our guest writing program and get paid for writing amazing technical guides. We'll get them to the right readers that will appreciate them.

Write for us
Writer of the month
Marin Bezhanov
Marin is a software engineer and architect with a broad range of experience working...
Build on top of Better Stack

Write a script, app or project on top of Better Stack and share it with the world. Make a public repository and share it with us at our email.

community@betterstack.com

or submit a pull request and help us build better products for everyone.

See the full list of amazing projects on github
