Getting Started with AWS CloudTrail Logs

Imagine waking up to an AWS security nightmare. Would you be prepared to handle it?

Let's say you logged into your AWS account and see your critical databases gone. Or maybe you spot strange EC2 instances you don't recognize racking up massive bills. These aren't far-fetched scenarios – a single stolen credential can make it happen.

Companies like Code Spaces have learned the hard way. After their AWS credentials were leaked, all their instances were deliberately wiped out which lead to them going out of business.

The good news is that you can prevent such a doomsday scenario from happening to you by using AWS CloudTrail to identify possible malicious behavior before it spirals out of control.

CloudTrail is your digital detective when things go wrong in AWS. It tracks who did what and when. Think of it like a security camera for your cloud environment.

In this guide, you will learn about the various logs collected by CloudTrail and how them to monitor the activity in your AWS account.

Understanding AWS CloudTrail audit logs

AWS CloudTrail automatically logs a wide range of activities within your AWS account. These activities, captured from the AWS Management Console, Command Line Interface (CLI), SDKs/APIs, and even automated AWS processes, are categorized into three primary event types:

1. Management events

Management events (also known as control plane operations) provide visibility into actions that modify the configuration of your AWS resources and services. They essentially record the "who, what, when, and from where" of actions within your AWS account.

Some examples of management events include:

• Creating or editing IAM roles, policies, or users.
• Changing security group configurations.
• Launching an Amazon EC2 instance or Amazon RDS database.
• Creating or deleting an S3 bucket.
• Configuring a CloudTrail trail.

Management events also include non-API events like user logins or other AWS service events not directly triggered by an API request.

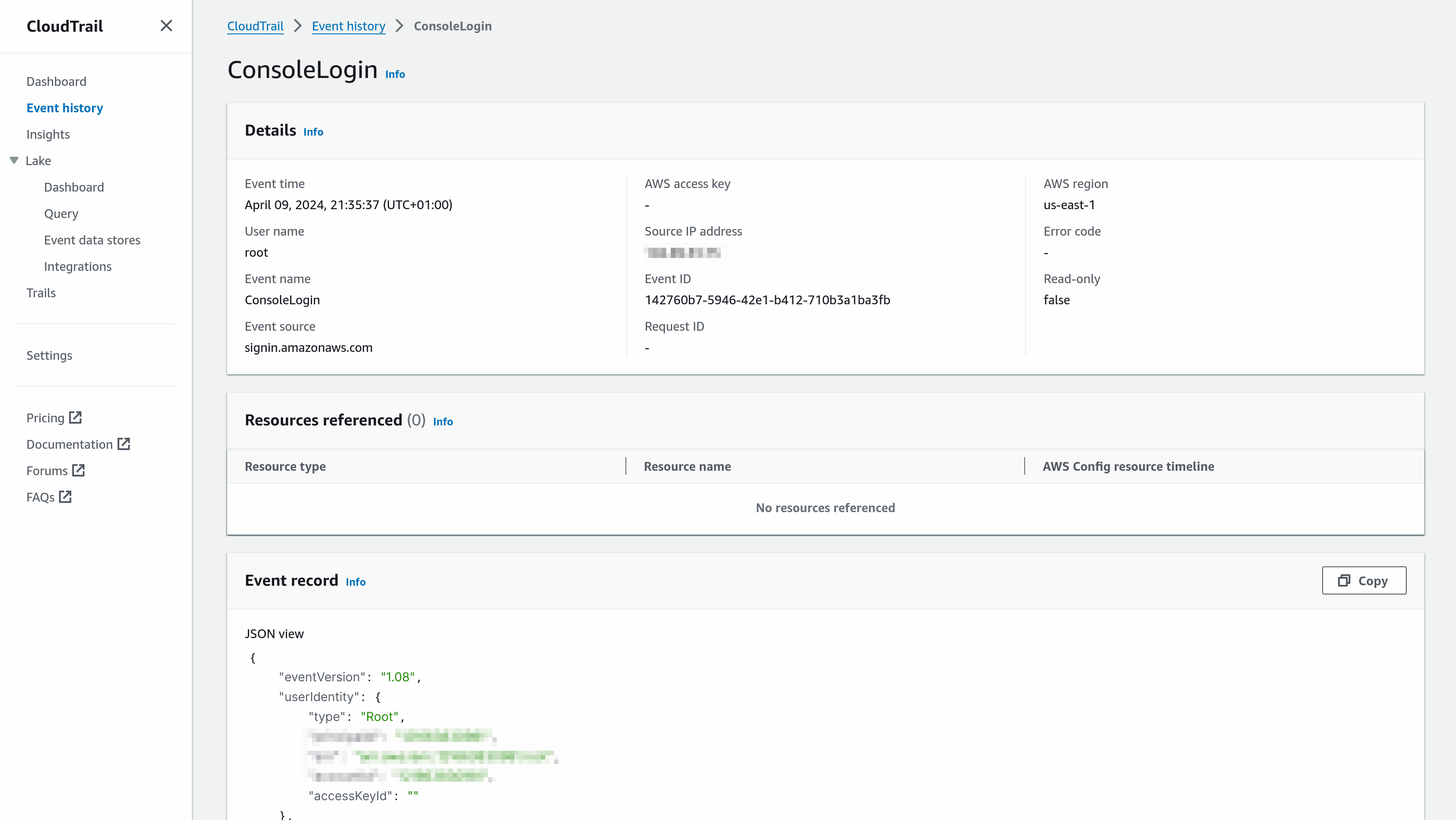

For example, the event below describes an AWS console login (via eventType) which was performed by the root user (see userIdentity) with Multi-Factor Authentication enabled (additionalEventData.MFAUsed):

{
    "eventVersion": "1.08",
    "userIdentity": {
        "type": "Root",
        "principalId": "444455556666",
        "arn": "arn:aws:iam::444455556666:root",
        "accountId": "444455556666",
        "accessKeyId": ""
    },
    "eventTime": "2023-07-13T03:04:43Z",
    "eventSource": "signin.amazonaws.com",
    "eventName": "ConsoleLogin",
    "awsRegion": "us-east-1",
    "sourceIPAddress": "192.0.2.0",
    "userAgent": "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/114.0.0.0 Safari/537.36",
    "requestParameters": null,
    "responseElements": {
        "ConsoleLogin": "Success"
    },
    "additionalEventData": {
        "LoginTo": "https://ap-southeast-1.console.aws.amazon.com/ec2/home?region=ap-southeast-1&state=hashArgs%23Instances%3Av%3D3%3B%24case%3Dtags%3Atrue%255C%2Cclient%3Afalse%3B%24regex%3Dtags%3Afalse%255C%2Cclient%3Afalse&isauthcode=true",
        "MobileVersion": "No",
        "MFAIdentifier": "arn:aws:iam::444455556666:mfa/root-account-mfa-device",
        "MFAUsed": "Yes"
    },
    "eventID": "e0176723-ea76-4275-83a3-EXAMPLEf03fb",
    "readOnly": false,
    "eventType": "AwsConsoleSignIn",
    "managementEvent": true,
    "recipientAccountId": "444455556666",
    "eventCategory": "Management",
    "tlsDetails": {
        "tlsVersion": "TLSv1.3",
        "cipherSuite": "TLS_AES_128_GCM_SHA256",
        "clientProvidedHostHeader": "signin.aws.amazon.com"
    }
}

By default, CloudTrail automatically logs management events for all AWS accounts. You can find these events for the past 90 days in the CloudTrail console under Event history.

2. Data events

Data events, also known as data plane operations, provide deeper visibility into the resource operations performed on or within an AWS resource. They help capture high-volume activities related to how users and applications interact with your AWS resources.

Some examples of data events include:

• Invoking a Lambda function.
• Sending a message to an SNS topic.
• Uploading, downloading, or deleting files from an S3 bucket.
• Adding, modifying, or removing items from a DynamoDB table.

Unlike management events, data events require explicit configuration to be tracked in CloudTrail because of the high-volume nature of the events being captured.

{
    "eventVersion": "1.08",
    "userIdentity": {
        "type": "IAMUser",
        "principalId": "EXAMPLEPAI123456789",
        "arn": "arn:aws:iam::123456789012:user/John",
        "accountId": "123456789012",
        "accessKeyId": "EXAMPLEKEYID123456789",
        "userName": "John"
    },
    "eventTime": "2024-04-11T12:34:56Z",
    "eventSource": "s3.amazonaws.com",
    "eventName": "GetObject",
    "awsRegion": "us-west-2",
    "sourceIPAddress": "203.0.113.42",
    "userAgent": "Amazon CloudFront",
    "requestParameters": {
        "bucketName": "example-bucket",
        "key": "example-object.txt"
    },
    "responseElements": null,
    "additionalEventData": {
        "x-amz-id-2": "ExampleRequestId123456789",
        "x-amz-request-id": "ExampleRequestId-1234-1234-1234-123456789abc"
    },
    "requestID": "ExampleRequestID-1234-1234-1234-123456789abc",
    "eventID": "ExampleEventID-1234-1234-1234-123456789abc",
    "readOnly": true,
    "resources": [
        {
            "type": "AWS::S3::Object",
            "ARN": "arn:aws:s3:::example-bucket/example-object.txt"
        },
        {
            "accountId": "123456789012",
            "type": "AWS::S3::Bucket",
            "ARN": "arn:aws:s3:::example-bucket"
        }
    ],
    "eventType": "AwsApiCall",
    "managementEvent": false,
    "recipientAccountId": "123456789012",
    "sharedEventID": "ExampleSharedEventID-1234-1234-1234-123456789abc",
    "eventCategory": "Data"
}

The above example demonstrates a data event where an IAM user named John performs a GetObject request to download an object from an S3 bucket. The event captures details details such as the event time, the AWS region (us-west-2), the source IP address, and the specifics of the request itself.

3. Insights events

Insights events are special events generated by CloudTrail that signal potentially unusual or unexpected activity within your AWS account.

Unlike standard management or data events that simply log every API call, Insights events indicate deviations from your established baseline of normal activity. They are designed to proactively alert you to potential security incidents or operational issues.

Once CloudTrail Insights is enabled, it starts analyzing management events to detect unusual API activity. It does this by analyzing your normal patterns of API call volume and API error rates, also called the baseline, and generating Insights events when the call volume or error rates are outside normal patterns.

Now, let's dive deeper into management events and how they can help you audit your AWS environment.

Accessing management events in CloudTrail

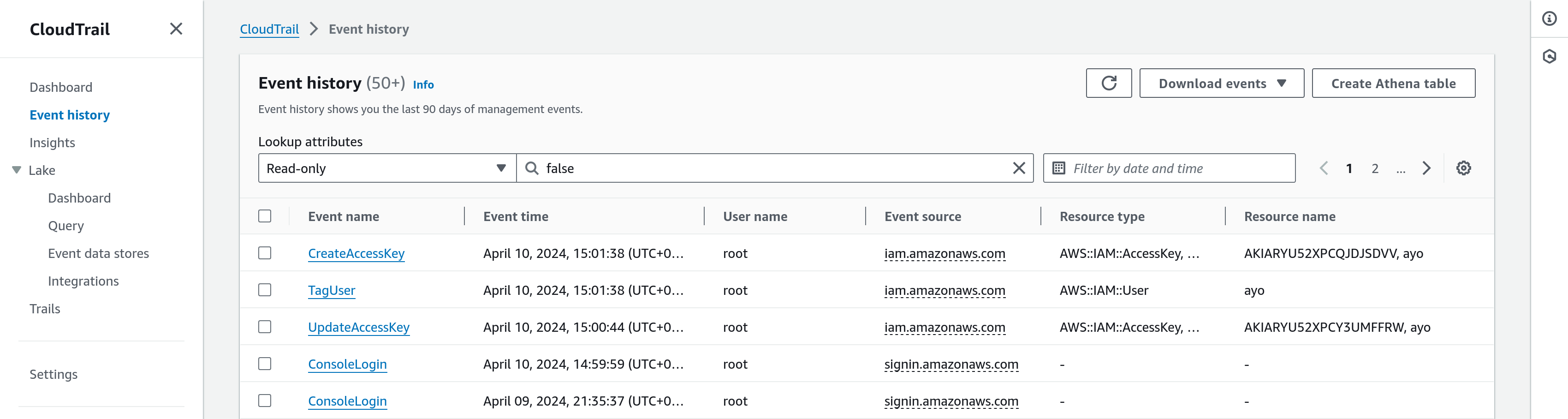

Once you navigate to the CloudTrail service, click on the Event history tab to view your management events from the last 90 days.

You can customize your view by selecting how adjusting the number of events per page or selecting visible columns. You can also select up to five events and compare them side by side, or view the event record in full by clicking on it:

Understanding CloudTrail management events structure

Interpreting AWS CloudTrail management events involves understanding the structure of the events and knowing how to analyze the data to draw insights about actions taken within your AWS environment. In this section, you will learn how to interpret management event logs so that you can understand what to focus on when conducting investigations.

Since each CloudTrail event is written as a JSON object, there are several fields that are common to all of the event types such as the following:

eventName

This is the name of the action that was performed which is useful for detecting notable occurrences in your AWS account. Here are some notable ones that you should probably be alerting on:

• ConsoleLogin: Attempts to sign into the AWS Management console, especially as the root user or other administrative accounts.
• StopLogging: The suspension of CloudTrail logs, maliciously or otherwise.
• DeleteTrail, UpdateTrail: Requests to update or delete a trail.
• CreateNetworkAclEntry, CreateRoute: New ACL entries and routes in your network tables can reveal new attack vectors to your infrastructure.
• AuthorizeSecurityGroupEgress, AuthorizeSecurityGroupIngress, RevokeSecurityGroupEgress, RevokeSecurityGroupIngress: Changes to security group ingress and egress settings.
• CreateUser, CreateRole, ChangePassword, etc: Changes to user roles and permissions in IAM.
• ListBuckets, PutBucketPolicy

awsRegion

This is the AWS Region that the request was made to.

eventSource

This refers to the service that the request was made to and is usually the service name suffixed by .amazonaws.com such as logs.amazonaws.com, signin.amazonaws.com, ec2.amazonaws.com and similar.

sourceIPAddress

This is the IP Address of the client that made the request, but it could also be a DNS name if the event was triggered by AWS.

errorCode and errorMessage

The errorCode field will be populated if the request returns an error and it will be accompanied by an errorMessage that describes the error. You may want to setup alerts on specific error types or when you're experiencing a run of errors in your account.

requestParameters and responseElements

If any parameters were sent with the request, they will be presented in the requestParameters field. On the other hand, the responseElements field only appears for events that may make changes to AWS resources (create, update, or delete actions).

additionalEventData

This contains additional details about an event that is not part of the request or response.

readOnly

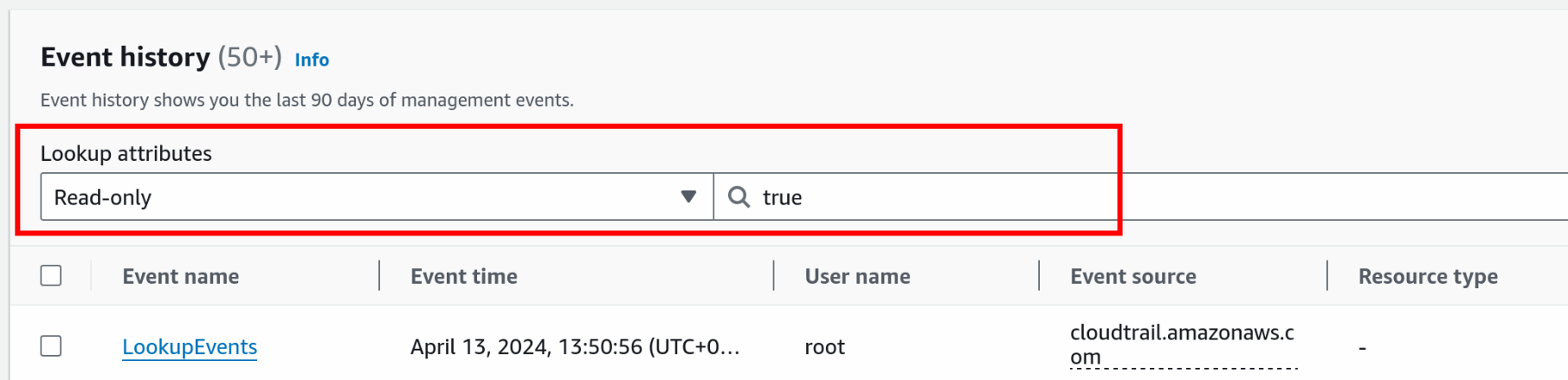

The readOnly property is true for events that do not modify any AWS resources and false for events that may modify AWS resources

Read-only events are generally prefixed with Get, Lookup, Describe, List or similar, while write events are prefixed with Update, Create, Delete, Publish, etc.

userIdentity

This is an object containing information the type of IAM identity that made the request, which credentials were used, and in the case of temporary credentials, how the credentials were obtained.

Here's an example of a userIdentity object for an event triggered by the Root user:

"userIdentity": {
    "type": "Root",
    "principalId": "121663830981",
    "arn": "arn:aws:iam::121663830981:root",
    "accountId": "121663830981",
    "accessKeyId": ""
}

And here's one for a request made with temporary security credentials obtained by assuming an IAM role. The object contains additional details about the role that was assumed to get credentials:

"userIdentity": {
    "type": "AssumedRole",
    "principalId": "AROARYU52XPC6TGBE3BH7:myHTTPRequestFunc",
    "arn": "arn:aws:sts::121663830981:assumed-role/me/myHTTPRequestFunc",
    "accountId": "121663830981",
    "accessKeyId": "ASIARYU52XPC5GYD2LMQ",
    "sessionContext": {
        "sessionIssuer": {
            "type": "Role",
            "principalId": "AROARYU52XPC6TGBE3BH7",
            "arn": "arn:aws:iam::121663830981:role/example",
            "accountId": "121663830981",
            "userName": "example"
        },
        "attributes": {
            "creationDate": "2024-04-10T20:01:35Z",
            "mfaAuthenticated": "false"
        }
    }
},

Let's look at a few of the key properties in this object next:

userIdentity.type

The type field describes the identity of the user of service that was responsible for the event which could be one of the following (see here for the complete list):

• Root: This means the event was triggered by your AWS account ID or its alias. Since the root user has full access to all your resources for all AWS services, it is critical to minimize its use except where unavoidable, and loudly alert on its usage. For more information about AWS recommendations, see the Root user best practices document.

• IAMUser: This indicates that the event was triggered by an IAMUser. If such activity is suspicious, it could mean that the credentials for the user has been compromised.

• AssumedRole: This indicates that the event was triggered using temporary security credentials from the AWS Security Token Service (STS) AssumeRole API, and the sessionContext.sessionIssuer field provides information about the assumed role. To figure out what IAM user, Lambda function, EC2 user, or external user assumed the role, you can pass the accessKeyId value to the aws cloudtrail lookup-events command as follows:

  aws cloudtrail lookup-events \
    --lookup-attributes 'AttributeKey=ResourceName,AttributeValue=<accessKeyId>' \
    --query 'Events[*]'

You should observe a response that looks like this:

    [
      {
        "EventId": "d819f09f-6304-3729-affa-f13b3a1f76ad",
        "EventName": "AssumeRole",
        "ReadOnly": "true",
        "EventTime": "2024-04-10T21:01:35+01:00",
        "EventSource": "sts.amazonaws.com",
        "Resources": [
          {
            "ResourceType": "AWS::IAM::AccessKey",
            "ResourceName": "ASIARYU52XPC5GYD2LMQ"
          },
          {
            "ResourceType": "AWS::STS::AssumedRole",
            "ResourceName": "myHTTPRequestFunc"
          },
          {
            "ResourceType": "AWS::IAM::Role",
            "ResourceName": "arn:aws:iam::121663830981:role/example"
          }
        ],
       . . .
      }
    ]

This shows that the myHTTPRequestFunc resource (a Lambda function) was what assumed the "example" role. Ensure to see the lookup-events documentation for more details.

• FederatedUser: This is similar to AssumedRole, except that the temporary credentials were granted by the AWS STS GetFederationToken API instead.

• AWSAccount: This means that the event was triggered by different AWS account altogether, hopefully one that you own. It could also indicate the presence of a backdoor to your account which must be investigated. The role assumption for both accounts can be linked with the sharedEventID field which will appear in the management event on both accounts:

  {
    "eventVersion": "1.05",
    "userIdentity": {
      "type": "AWSAccount",
      "principalId": "AIDAQRSTUVWXYZEXAMPLE",
      "accountId": "777788889999"
    },
    "eventTime": "2014-07-18T15:07:39Z",
    "eventSource": "sts.amazonaws.com",
    "eventName": "AssumeRole",
    "awsRegion": "us-east-2",
    "sourceIPAddress": "192.0.2.101",
    "userAgent": "aws-cli/1.11.10 Python/2.7.8 Linux/3.2.45-0.6.wd.865.49.315.metal1.x86_64 botocore/1.4.67",
    "requestParameters": {
      "roleArn": "arn:aws:iam::111122223333:role/EC2-dev",
      "roleSessionName": "JohnDoe-EC2-dev",
      "sourceIdentity": "JohnDoe",
      "serialNumber": "arn:aws:iam::777788889999:mfa"
    },
    "responseElements": {
      "credentials": {
        "sessionToken": "<encoded session token blob>",
        "accessKeyId": "ASIAI44QH8DHBEXAMPLE",
        "expiration": "Jul 18, 2014, 4:07:39 PM"
      },
      "assumedRoleUser": {
        "assumedRoleId": "AIDAQRSTUVWXYZEXAMPLE:JohnDoe-EC2-dev",
        "arn": "arn:aws:sts::111122223333:assumed-role/EC2-dev/JohnDoe-EC2-dev"
        },
    "sourceIdentity": "JohnDoe"
    },
    "requestID": "4EXAMPLE-0e8d-11e4-96e4-e55c0EXAMPLE",
    "sharedEventID": "bEXAMPLE-efea-4a70-b951-19a88EXAMPLE",
    "eventID": "dEXAMPLE-ac7f-466c-a608-4ac8dEXAMPLE"
  }

• AWSService: This is used when the event is initiated by an account that belongs to an AWS service. Many AWS services use service accounts to perform automated actions on your behalf.

userIdentity.principalId

This is a unique ID that identifies the entity that created the event. If temporary credentials from AssumeRole, AssumeRoleWithWebIdentity, or GetFederationToken are used, you'll see the session name of the role assumption after this identifier. Note that this name is chosen by the client assuming the role, so it may be misleading if an attacker is involved.

With Lambda functions, the name of the function assuming the role will be appended to the principalId:

AIDAQRSTUVWXYZEXAMPLE:<lambda_function-name>

Similarly, with EC2 instances, the instance ID will be appended like this:

AIDAQRSTUVWXYZEXAMPLE:<instance_id>

userIdentity.ARN

This is the Amazon Resource Name (ARN) of the entity that triggered the event.

userIdentity.accountID

This refers to the account that owns the entity that granted permissions for the request. If you're operating out of a single account, then this should always be the same as your account ID. It makes sense to create a rule that alerts you when other account IDs start showing up as it could mean that you've been backdoored by a malicious AWS account.

userIdentity.accessKeyId

This the access key ID used to sign the request. Access key IDs prefixed with AKIA are long-term credentials for an IAM user or the AWS account root user, while those beginning with ASIA are temporary credentials that are created using AWS STS operations.

If the accountID in the response belongs to you, you can sign in as the root user and review your root user access keys. Then, you can pull a credentials report to learn which IAM user owns the keys. To learn who requested the temporary credentials for an ASIA access key, use the lookup-events command described earlier.

userIdentity.sessionContext

The sessionContext field only appears if the event was created using temporary credentials. It is an object that provides information about the session created for those credentials such as when the credentials were issued (attributes.creationDate) and if the root or IAM user behind the event used Multi-Factor Authentication (attributes.mfaAuthenticated).

The sessionContext.sessionIssuer property also provides details about the specific object that granted the credentials to assume the role. This is usually a Role, but it could also be Root or IAMUser.

Final thoughts

AWS security is complex, and breaches can happen for a million reasons. Maybe the examples we covered won't be exactly what you face. But, by understanding how CloudTrail works, you'll be better equipped to identify what's normal, what's suspicious, and how to act fast when things go wrong.

Don't just read this guide – explore your own CloudTrail logs and get familiar with them. Set up alerts for the truly critical stuff and ensure you implement the recommended security best practices

Thanks for reading, and happy logging!
