Instrumenting Java Apps with OpenTelemetry Metrics

Java OpenTelemetry
Ayooluwa Isaiah
Updated on March 17, 2025

This article provides a detailed guide on integrating OpenTelemetry metrics into your Java application.

It explores key concepts, including instrumenting your application with various metric types, monitoring HTTP request activity, and exporting metrics to visualization tools.

Let's get started!

Prerequisites

Step 1 — Setting up the demo project

To demonstrate OpenTelemetry instrumentation in Java applications, let's set up a simple "Hello World" Spring Boot application along with the Prometheus server for visualizing metrics.

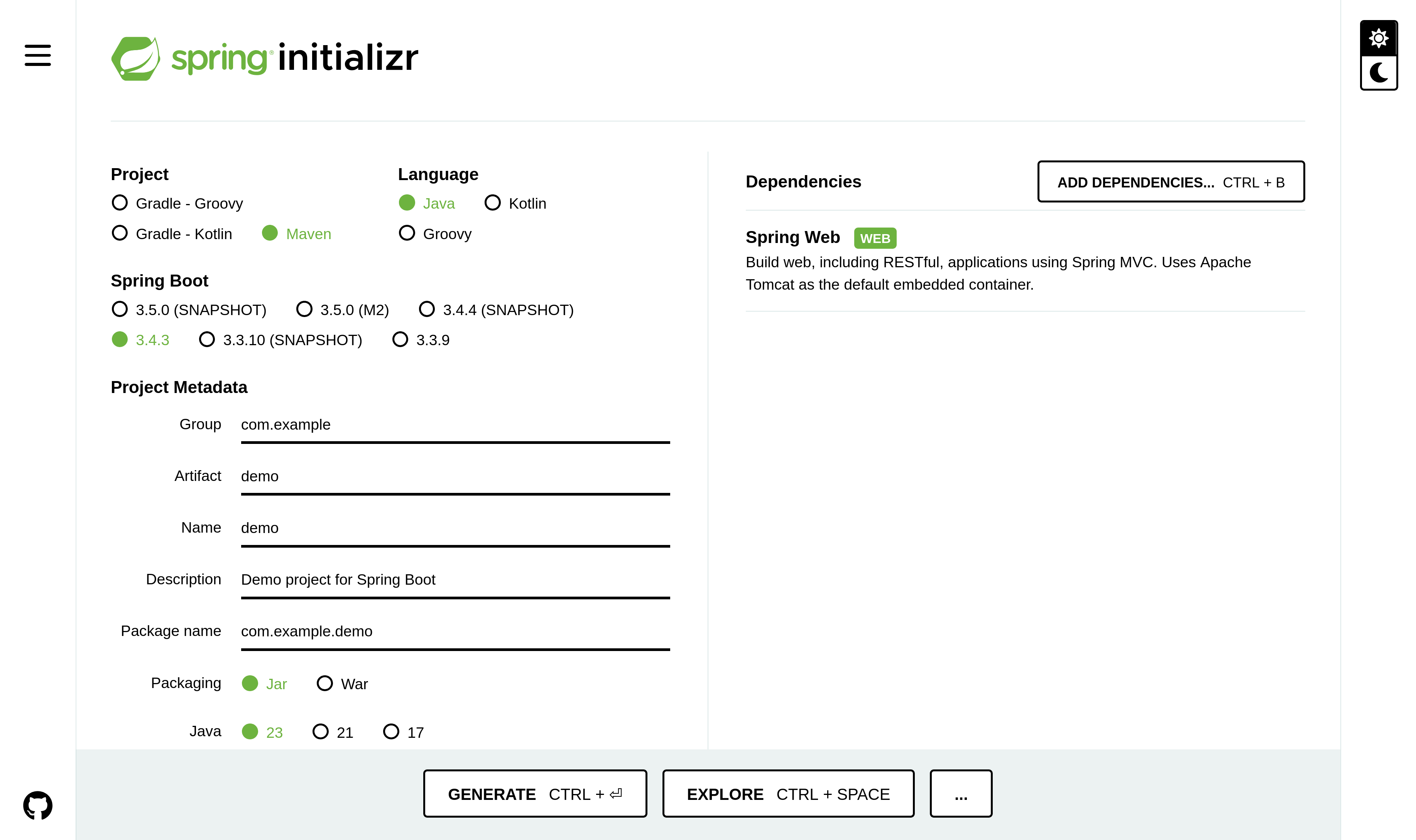

First, create a new Spring Boot project. The easiest way is to use Spring Initializr. Select:

  • Maven or Gradle (we'll use Maven for this tutorial)
  • Java 23
  • Spring Boot 3.4.3
  • Dependencies: Spring Web

Screenshot 2025-03-17 at 10-25-56 Spring Initializr.png

Download and extract the project, then open it in your preferred IDE.

Here's the initial application class:


package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@SpringBootApplication
@RestController
public class DemoApplication {

   public static void main(String[] args) {
       SpringApplication.run(DemoApplication.class, args);
   }

   @GetMapping("/")
   public String hello() {
       return "Hello world!";
   }

   @GetMapping("/metrics")
   public String metrics() {
       return "";
   }
}

This app exposes two endpoints: / returns a simple "Hello world!" message, and /metrics endpoint that will eventually expose the instrumented metrics. The empty metrics endpoint is a placeholder we'll expand later.

Create a compose.yaml file in your project root to set up both our application and Prometheus server in Docker:


services:
 app:
   build:
     context: .
     dockerfile: Dockerfile
   environment:
     SERVER_PORT: ${SERVER_PORT}
   ports:
     - "8080:8080"
   volumes:
     - .:/app
     - ~/.m2:/root/.m2

 prometheus:
   image: prom/prometheus:latest
   container_name: prometheus
   restart: unless-stopped
   volumes:
     - ./prometheus.yml:/etc/prometheus/prometheus.yml
     - prometheus_data:/prometheus
   command:
     - --config.file=/etc/prometheus/prometheus.yml
     - --storage.tsdb.path=/prometheus
     - --web.console.libraries=/etc/prometheus/console_libraries
     - --web.console.templates=/etc/prometheus/consoles
     - --web.enable-lifecycle
   expose:
     - 9090
   ports:
     - "9090:9090"

volumes:
 prometheus_data:

This configuration sets up two services: our Spring Boot application and Prometheus. The volumes ensure code changes are reflected in real-time and data is persisted.

Create a Dockerfile for the Spring Boot application:


FROM eclipse-temurin:17-jdk-focal

WORKDIR /app

COPY .mvn/ .mvn
COPY mvnw pom.xml ./

RUN ./mvnw dependency:go-offline

COPY src ./src

CMD ["./mvnw", "spring-boot:run"]

This Dockerfile uses the Eclipse Temurin JDK 17 image and configures Maven to run our Spring Boot application.

Create a prometheus.yml configuration file to tell Prometheus where to find metrics:


global:
 scrape_interval: 10s

scrape_configs:
 - job_name: spring-app
   static_configs:
     - targets:
         - app:8080

This configuration tells Prometheus to scrape metrics from our app every 10 seconds. In Docker Compose networking, "app" refers to our Spring Boot container.

Before starting the services, create an .env file:


SERVER_PORT=8080

Launch both services with:


docker compose up -d

To confirm that the Spring Boot application is running, send a request to the root endpoint:


curl http://localhost:8080

This should return:


Hello world!

Step 2 — Installing OpenTelemetry dependencies

Now let's add the OpenTelemetry dependencies to your Spring Boot application. Unlike Prometheus with Micrometer, OpenTelemetry provides a vendor-neutral API for observability that includes not just metrics, but also traces and logs.

Update your pom.xml to include these dependencies:


<dependencies>
   <!-- Existing dependencies -->
   <dependency>
       <groupId>io.opentelemetry</groupId>
       <artifactId>opentelemetry-api</artifactId>
       <version>1.32.0</version>
   </dependency>
   <dependency>
       <groupId>io.opentelemetry</groupId>
       <artifactId>opentelemetry-sdk</artifactId>
       <version>1.32.0</version>
   </dependency>
   <dependency>
       <groupId>io.opentelemetry</groupId>
       <artifactId>opentelemetry-exporter-prometheus</artifactId>
       <version>1.32.0-alpha</version>
   </dependency>
   <dependency>
       <groupId>io.opentelemetry</groupId>
       <artifactId>opentelemetry-semconv</artifactId>
       <version>1.32.0-alpha</version>
   </dependency>
</dependencies>

These dependencies provide:

  • The OpenTelemetry API for defining metrics
  • The SDK that implements the API
  • The Prometheus exporter for exposing metrics
  • Semantic conventions for standardized naming

Next, create a configuration class to set up OpenTelemetry with Prometheus export:


package com.example.demo.config;

import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.metrics.MeterProvider;
import io.opentelemetry.exporter.prometheus.PrometheusHttpServer;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.metrics.SdkMeterProvider;
import io.opentelemetry.sdk.metrics.export.PeriodicMetricReader;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.semconv.resource.attributes.ResourceAttributes;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class OpenTelemetryConfig {

    @Bean
    public OpenTelemetry openTelemetry() {
        // Create a resource with application metadata
        Resource resource = Resource.getDefault()
                .merge(Resource.create(Attributes.of(
                        ResourceAttributes.SERVICE_NAME, "demo-app",
                        ResourceAttributes.SERVICE_VERSION, "1.0.0"
                )));

        // Set up the Prometheus exporter
        PrometheusHttpServer prometheusExporter = PrometheusHttpServer.builder()
                .setPort(9464)
                .build();

        // Create a meter provider
        SdkMeterProvider meterProvider = SdkMeterProvider.builder()
                .setResource(resource)
                .registerMetricReader(prometheusExporter)
                .build();

        // Create and return the OpenTelemetry instance
        return OpenTelemetrySdk.builder()
                .setMeterProvider(meterProvider)
                .buildAndRegisterGlobal();
    }

    @Bean
    public MeterProvider meterProvider(OpenTelemetry openTelemetry) {
        return openTelemetry.getMeterProvider();
    }
}

This configuration:

  1. Creates a resource that identifies your application with a name and version
  2. Sets up a Prometheus HTTP server to expose metrics on port 9464
  3. Configures a meter provider that will collect metrics and send them to Prometheus
  4. Builds and registers a global OpenTelemetry instance for your application to use

Update your prometheus.yml configuration to scrape metrics from the OpenTelemetry exporter:


global:
 scrape_interval: 10s

scrape_configs:
 - job_name: spring-app
   static_configs:
     - targets:
         - app:9464

Notice we're now targeting port 9464 where the OpenTelemetry Prometheus exporter will expose metrics.

Rebuild your application:


docker compose up -d --build app

Now when you visit http://localhost:9464/metrics, you'll see the default metrics that OpenTelemetry automatically collects.

Step 3 — Implementing a Counter Metric

Let's implement our first custom metric - a counter to track the total number of HTTP requests to our application. A counter is a cumulative metric that only increases over time or resets to zero (like a car's odometer).

Create a metrics service to define and manage your OpenTelemetry metrics:


package com.example.demo.service;

import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.metrics.LongCounter;
import io.opentelemetry.api.metrics.Meter;
import io.opentelemetry.api.metrics.MeterProvider;
import org.springframework.stereotype.Service;

@Service
public class MetricsService {

    private final LongCounter requestCounter;

    public MetricsService(MeterProvider meterProvider) {
        Meter meter = meterProvider.get("com.example.demo");

        // Create a counter for HTTP requests
        this.requestCounter = meter.counterBuilder("http.requests.total")
                .setDescription("Total number of HTTP requests")
                .build();
    }

    public void incrementRequestCounter() {
        requestCounter.add(1, Attributes.builder().put("app", "demo").build());
    }
}

In this service:

  • We create a meter named "com.example.demo" as a namespace for our metrics
  • We define a counter named "http.requests.total" with a clear description
  • We provide a method to increment the counter with an attribute that identifies our app

Next, create a web filter that will increment the counter for each request:


package com.example.demo.filter;

import com.example.demo.service.MetricsService;
import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;
import java.io.IOException;

@Component
public class MetricsFilter extends OncePerRequestFilter {
    private final MetricsService metricsService;

    public MetricsFilter(MetricsService metricsService) {
        this.metricsService = metricsService;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                  HttpServletResponse response,
                                  FilterChain filterChain) throws ServletException, IOException {
        metricsService.incrementRequestCounter();  // Increment before processing the request
        filterChain.doFilter(request, response);
    }
}

This filter:

  • Extends Spring's OncePerRequestFilter to ensure it runs exactly once per request
  • Injects our metrics service
  • Increments the request counter for every HTTP request
  • Continues the filter chain to process the request normally

After making several requests to your application, visiting the /metrics endpoint will show:


# HELP http_requests_total Total number of HTTP requests
# TYPE http_requests_total counter
http_requests_total{app="demo"} 42

The value will keep increasing as more requests are processed. This is perfect for tracking total events, throughput, or error counts.

Step 4 — Implementing a Gauge Metric

Unlike counters that only increase, gauges represent values that can fluctuate up and down, like current temperature or memory usage. In OpenTelemetry, we implement gauges using an UpDownCounter.

Let's add a gauge to track the number of active requests in our application:


package com.example.demo.service;

import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.metrics.LongCounter;
import io.opentelemetry.api.metrics.LongUpDownCounter;
import io.opentelemetry.api.metrics.Meter;
import io.opentelemetry.api.metrics.MeterProvider;
import org.springframework.stereotype.Service;

@Service
public class MetricsService {

    private final LongCounter requestCounter;
    private final LongUpDownCounter activeRequestsGauge;

    public MetricsService(MeterProvider meterProvider) {
        Meter meter = meterProvider.get("com.example.demo");

        // Create a counter for HTTP requests
        this.requestCounter = meter.counterBuilder("http.requests.total")
                .setDescription("Total number of HTTP requests")
                .build();

        // Create a gauge (implemented as an UpDownCounter) for active requests
        this.activeRequestsGauge = meter.upDownCounterBuilder("http.requests.active")
                .setDescription("Number of active HTTP requests")
                .build();
    }

    public void incrementRequestCounter() {
        requestCounter.add(1, Attributes.builder().put("app", "demo").build());
    }

    public void incrementActiveRequests() {
        activeRequestsGauge.add(1, Attributes.builder().put("app", "demo").build());
    }

    public void decrementActiveRequests() {
        activeRequestsGauge.add(-1, Attributes.builder().put("app", "demo").build());
    }
}

The key additions here:

  • We create an UpDownCounter that works like a gauge
  • We provide methods to both increment and decrement the value
  • This lets us track a value that rises and falls over time

Update the filter to track active requests:


@Component
public class MetricsFilter extends OncePerRequestFilter {
    private final MetricsService metricsService;

    public MetricsFilter(MetricsService metricsService) {
        this.metricsService = metricsService;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                  HttpServletResponse response,
                                  FilterChain filterChain) throws ServletException, IOException {
        metricsService.incrementRequestCounter();
        metricsService.incrementActiveRequests();  // Increase at request start

        try {
            filterChain.doFilter(request, response);
        } finally {
            metricsService.decrementActiveRequests();  // Decrease at request end
        }
    }
}

This filter now:

  • Increments the active request gauge when a request begins
  • Ensures we decrement it when the request ends (even if errors occur) using a try-finally block

To observe the gauge in action, let's add some random delay to the root endpoint:


@GetMapping("/")
public String hello() throws InterruptedException {
   java.util.concurrent.ThreadLocalRandom random = java.util.concurrent.ThreadLocalRandom.current();
   Thread.sleep(random.nextInt(1000, 5000));  // Random delay between 1-5 seconds
   return "Hello world!";
}

This delay simulates processing time and allows multiple concurrent requests to accumulate, making our active request gauge more interesting to observe.

Step 5 — Implementing a Histogram Metric

Histograms are essential for understanding the distribution of values like request durations. They track not just a single number but the spread of values across predefined buckets.

Update your MetricsService to include a histogram:


package com.example.demo.service;

import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.metrics.LongCounter;
import io.opentelemetry.api.metrics.LongUpDownCounter;
import io.opentelemetry.api.metrics.Meter;
import io.opentelemetry.api.metrics.MeterProvider;
import io.opentelemetry.api.metrics.DoubleHistogram;
import org.springframework.stereotype.Service;

@Service
public class MetricsService {

    private final LongCounter requestCounter;
    private final LongUpDownCounter activeRequestsGauge;
    private final DoubleHistogram requestDurationHistogram;

    public MetricsService(MeterProvider meterProvider) {
        Meter meter = meterProvider.get("com.example.demo");

        // Create a counter for HTTP requests
        this.requestCounter = meter.counterBuilder("http.requests.total")
                .setDescription("Total number of HTTP requests")
                .build();

        // Create a gauge for active requests
        this.activeRequestsGauge = meter.upDownCounterBuilder("http.requests.active")
                .setDescription("Number of active HTTP requests")
                .build();

        // Create a histogram for request durations
        this.requestDurationHistogram = meter.histogramBuilder("http.request.duration.seconds")
                .setDescription("HTTP request duration in seconds")
                .setUnit("s")  // Explicitly set the unit to seconds
                .build();
    }

    // Previous methods...

    public void recordRequestDuration(double durationSeconds) {
        requestDurationHistogram.record(durationSeconds, Attributes.builder().put("app", "demo").build());
    }
}

Key points about the histogram:

  • We use a DoubleHistogram because durations are typically fractional values
  • We set a unit of "s" (seconds) to make the metric more understandable
  • The histogram automatically distributes values across predefined buckets

Update the filter to record request durations:


@Component
public class MetricsFilter extends OncePerRequestFilter {
    private final MetricsService metricsService;

    public MetricsFilter(MetricsService metricsService) {
        this.metricsService = metricsService;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                  HttpServletResponse response,
                                  FilterChain filterChain) throws ServletException, IOException {
        metricsService.incrementRequestCounter();
        metricsService.incrementActiveRequests();

        long startTime = System.nanoTime();  // High-precision timestamp before request
        try {
            filterChain.doFilter(request, response);
        } finally {
            long duration = System.nanoTime() - startTime;
            // Convert nanoseconds to seconds with floating-point precision
            metricsService.recordRequestDuration(duration / 1_000_000_000.0);
            metricsService.decrementActiveRequests();
        }
    }
}

This enhancement:

  • Takes a high-precision timestamp before processing the request
  • Calculates the duration after the request completes
  • Converts from nanoseconds to seconds (dividing by 1 billion)
  • Records the duration in our histogram

Histograms are particularly useful for analyzing latency patterns and setting SLOs (Service Level Objectives). In Prometheus, you can calculate percentiles (e.g., p95, p99) to understand the experience of most users while ignoring outliers.

Step 6 — Adding Context to Metrics with Attributes

Attributes (labels in Prometheus terminology) let you segment metrics by different dimensions like endpoint, HTTP method, or status code. This provides more granular analysis.

Let's enhance our metrics with additional context:


@Component
public class MetricsFilter extends OncePerRequestFilter {
    private final MetricsService metricsService;

    public MetricsFilter(MetricsService metricsService) {
        this.metricsService = metricsService;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                  HttpServletResponse response,
                                  FilterChain filterChain) throws ServletException, IOException {
        // Create attributes with endpoint and method information
        Attributes attributes = Attributes.builder()
                .put("app", "demo")
                .put("endpoint", request.getRequestURI())
                .put("method", request.getMethod())
                .build();

        metricsService.incrementRequestCounter(attributes);
        metricsService.incrementActiveRequests(attributes);

        long startTime = System.nanoTime();
        try {
            filterChain.doFilter(request, response);
        } finally {
            long duration = System.nanoTime() - startTime;

            // Add status code to attributes for the histogram
            Attributes histogramAttributes = Attributes.builder()
                    .putAll(attributes)
                    .put("status", response.getStatus())
                    .build();

            metricsService.recordRequestDuration(duration / 1_000_000_000.0, histogramAttributes);
            metricsService.decrementActiveRequests(attributes);
        }
    }
}

This enhanced filter:

  • Creates attributes containing the URI path and HTTP method
  • Adds the HTTP status code to histogram attributes after the response is generated
  • Allows you to analyze metrics by endpoint, method, and response status

Update the MetricsService to accept attributes in its methods:


public void incrementRequestCounter(Attributes attributes) {
    requestCounter.add(1, attributes);
}

public void incrementActiveRequests(Attributes attributes) {
    activeRequestsGauge.add(1, attributes);
}

public void decrementActiveRequests(Attributes attributes) {
    activeRequestsGauge.add(-1, attributes);
}

public void recordRequestDuration(double durationSeconds, Attributes attributes) {
    requestDurationHistogram.record(durationSeconds, attributes);
}

With these attributes, you can now answer questions like:

  • Which endpoints have the highest traffic?
  • Which endpoints have the slowest response times?
  • What percentage of requests to a specific endpoint result in errors?

Be careful not to add too many unique attribute combinations, as this can lead to "cardinality explosion" that impacts performance.

Step 7 — Implementing External API Monitoring

Let's create a service to monitor external API calls using OpenTelemetry:


package com.example.demo.service;

import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.metrics.DoubleHistogram;
import io.opentelemetry.api.metrics.Meter;
import io.opentelemetry.api.metrics.MeterProvider;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;

@Service
public class ExternalApiService {
   private final DoubleHistogram apiLatencyHistogram;
   private final RestTemplate restTemplate;

   public ExternalApiService(MeterProvider meterProvider) {
       Meter meter = meterProvider.get("com.example.demo");

       this.apiLatencyHistogram = meter.histogramBuilder("external_api.request.duration")
               .setDescription("External API request duration in seconds")
               .setUnit("s")
               .build();

       this.restTemplate = new RestTemplate();
   }

   public Object fetchPosts() {
       long startTime = System.nanoTime();
       try {
           return restTemplate.getForObject(
               "https://jsonplaceholder.typicode.com/posts",
               Object.class
           );
       } finally {
           long duration = System.nanoTime() - startTime;
           apiLatencyHistogram.record(
               duration / 1_000_000_000.0,  // Convert to seconds
               Attributes.builder()
                   .put("api", "jsonplaceholder")
                   .put("endpoint", "/posts")
                   .build()
           );
       }
   }
}

This service:

  • Creates a histogram to track API call durations
  • Wraps the API call with timing logic
  • Records the duration with attributes identifying the external API and endpoint

Add a controller to use this service:


@RestController
public class ApiController {
   private final ExternalApiService apiService;

   public ApiController(ExternalApiService apiService) {
       this.apiService = apiService;
   }

   @GetMapping("/posts")
   public Object getPosts() {
       return apiService.fetchPosts();
   }
}

This pattern lets you monitor external dependencies, identify performance bottlenecks, and set alerts for problematic third-party services.

Final thoughts

In this tutorial, we explored how to integrate OpenTelemetry metrics into a Spring Boot application. We implemented counters for tracking cumulative values, gauges for fluctuating measurements, and histograms for analyzing distributions.

OpenTelemetry offers several advantages over traditional monitoring approaches: it provides vendor-neutral instrumentation, combines metrics with tracing and logging, and implements standardized conventions across different programming languages.

For a production deployment, consider setting up an OpenTelemetry Collector to process and route your telemetry data to different backends, and connect your metrics to observability tools like Better Stack to create comprehensive dashboards.

Remember to focus on actionable metrics that directly tie to user experience and business goals, and create alerts for critical thresholds to ensure proactive monitoring of your applications.

Author's avatar
Article by
Ayooluwa Isaiah
Ayo is a technical content manager at Better Stack. His passion is simplifying and communicating complex technical ideas effectively. His work was featured on several esteemed publications including LWN.net, Digital Ocean, and CSS-Tricks. When he's not writing or coding, he loves to travel, bike, and play tennis.
Got an article suggestion? Let us know
Licensed under CC-BY-NC-SA

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

Make your mark

Join the writer's program

Are you a developer and love writing and sharing your knowledge with the world? Join our guest writing program and get paid for writing amazing technical guides. We'll get them to the right readers that will appreciate them.

Write for us
Writer of the month
Marin Bezhanov
Marin is a software engineer and architect with a broad range of experience working...
Build on top of Better Stack

Write a script, app or project on top of Better Stack and share it with the world. Make a public repository and share it with us at our email.

community@betterstack.com

or submit a pull request and help us build better products for everyone.

See the full list of amazing projects on github
