Visualizing Better Stack logs and metrics in Grafana

Better Stack stores all your telemetry data in a ClickHouse-powered warehouse you can query from outside the platform using plain SQL. Any tool that speaks to a ClickHouse HTTP endpoint can become a front end for your logs and metrics, including Grafana.

This guide walks through connecting Grafana to Better Stack via the SQL API, defining a user-defined metric from your logs, and building three panels: a metrics-backed time-series chart, a request volume chart from wide events, and a log table.

Prerequisites

To start, you need a Telemetry source and an SQL API connection. Here is how to set up each:

Create a new source in Telemetry → Sources → Connect source, or read more in the Quick start guide.

Then, create an SQL API connection in Telemetry → Integrations → SQL API. When creating the connection, select the Cluster that matches your source's Data region. Once created, copy the Host, Username, and Password from the success banner. The password is hidden permanently once you navigate away.

Better Stack uses two storage tiers relevant to the queries below.

Wide events are every structured log line stored as JSON in object storage, great for ad-hoc filtering but slower to scan.

Metrics are a compressed representation on local NVMe SSDs, populated either by ingesting Prometheus metrics directly or by extracting metrics from logs.

See Wide events vs. metrics for a deeper comparison.

Extract metrics from your logs

Say your application logs contain a duration field on every request:

{"level":"info","message":"request handled","duration":143,"route":"/api/orders","status":200}

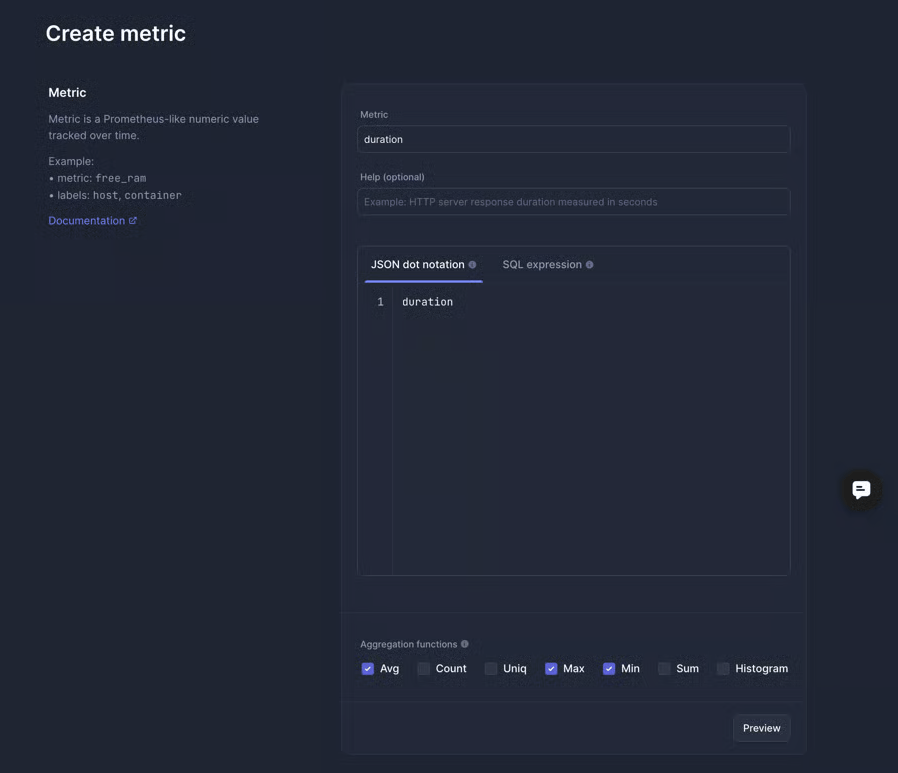

1. Go to Sources → your source → Configure and click the Extract Metrics tab.
2. Click + Metric and fill in:
   • Metric: duration
   • JSON dot notation: duration (Better Stack generates the extraction expression automatically)
   • Aggregations: Avg, Min, Max
3. Click Create metric and when prompted, click Apply changes to new data only.

Once defined, any query against remote(t123456_your_source_metrics) resolves that metric in milliseconds because it reads from compressed columnar data on NVMe rather than scanning object storage.

The practical implication for dashboarding: use the metrics table for time-series charts that refresh every 30 seconds or cover a 90-day window. Use the wide events table for log tables, one-off investigations, or attributes you have not yet promoted to a metric.

Connect Grafana to Better Stack

Install the ClickHouse plugin

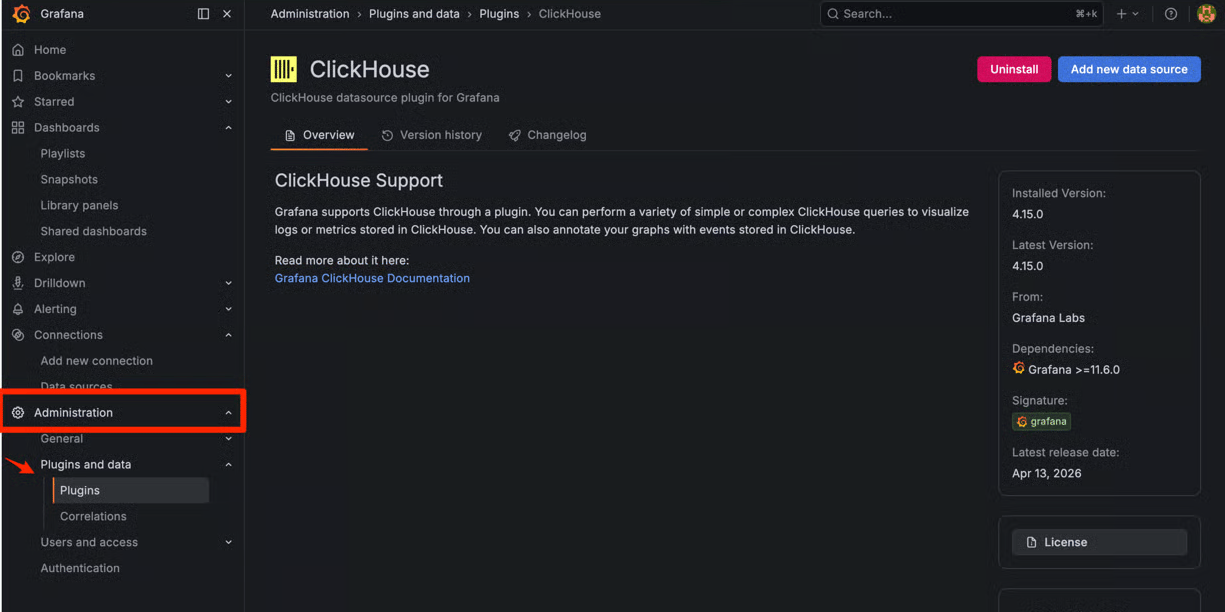

In your Grafana instance, go to Administration → Plugins and data → Plugins, search for ClickHouse, select the Grafana ClickHouse data source plugin, and click Install.

For self-hosted Grafana you can also use the CLI:

sudo grafana cli plugins install grafana-clickhouse-datasource
sudo systemctl restart grafana-server

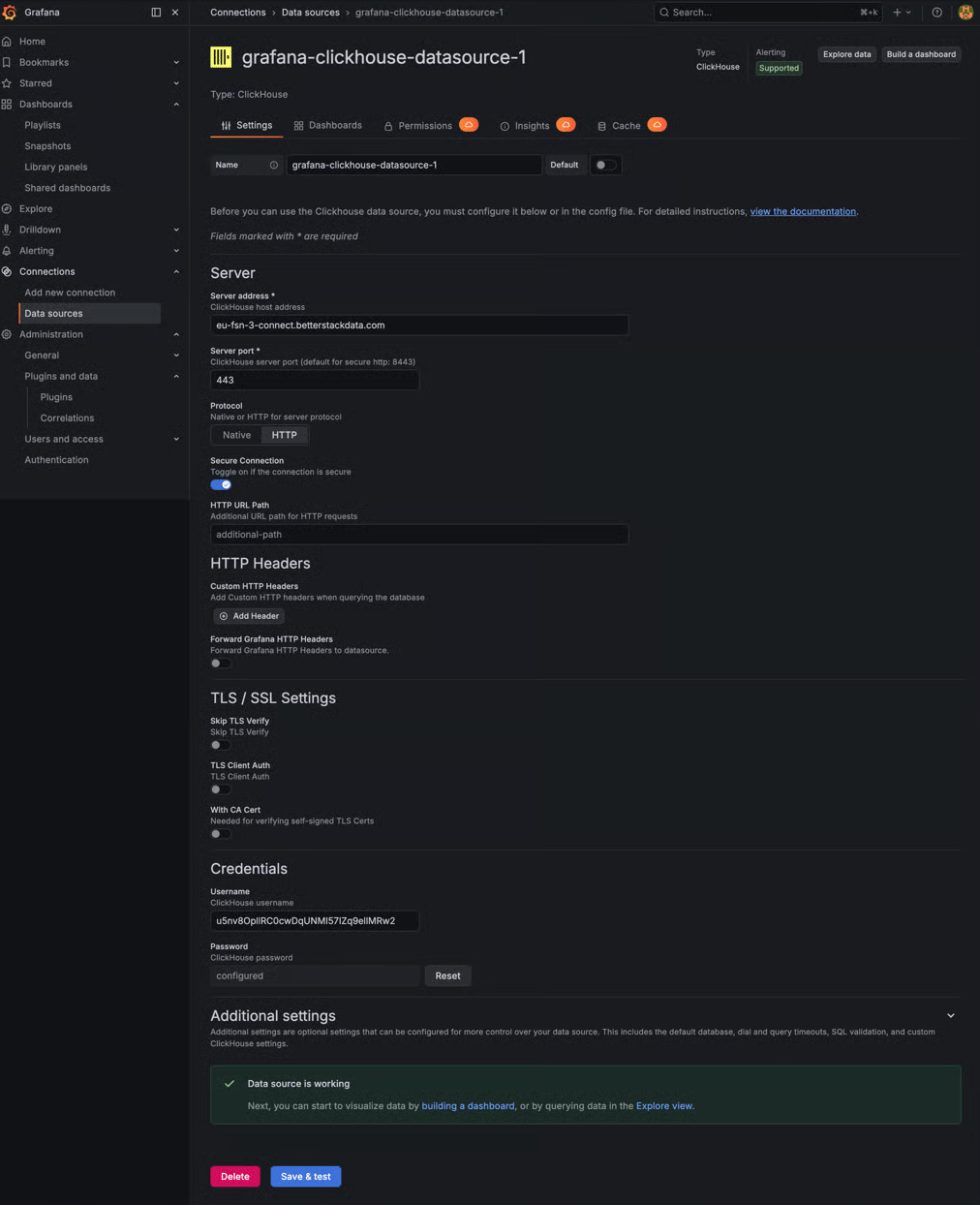

Add the data source

1. Go to Connections → Data sources and click Add new data source.
2. Search for and select ClickHouse.
3. Fill in the Server section. Set Server address to your cluster hostname only, no port (e.g. eu-fsn-3-connect.betterstackdata.com). Set Server port to 443. Set Protocol to HTTP (the default is Native and must be switched). Enable Secure connection (it is off by default).
4. Scroll down to Credentials and enter your username and password from the Better Stack success banner.
5. Leave Default database blank.
6. Click Save & test. You should see Data source is working.

Troubleshoot connection errors

If Save & test returns an error, the table below covers the most common causes.

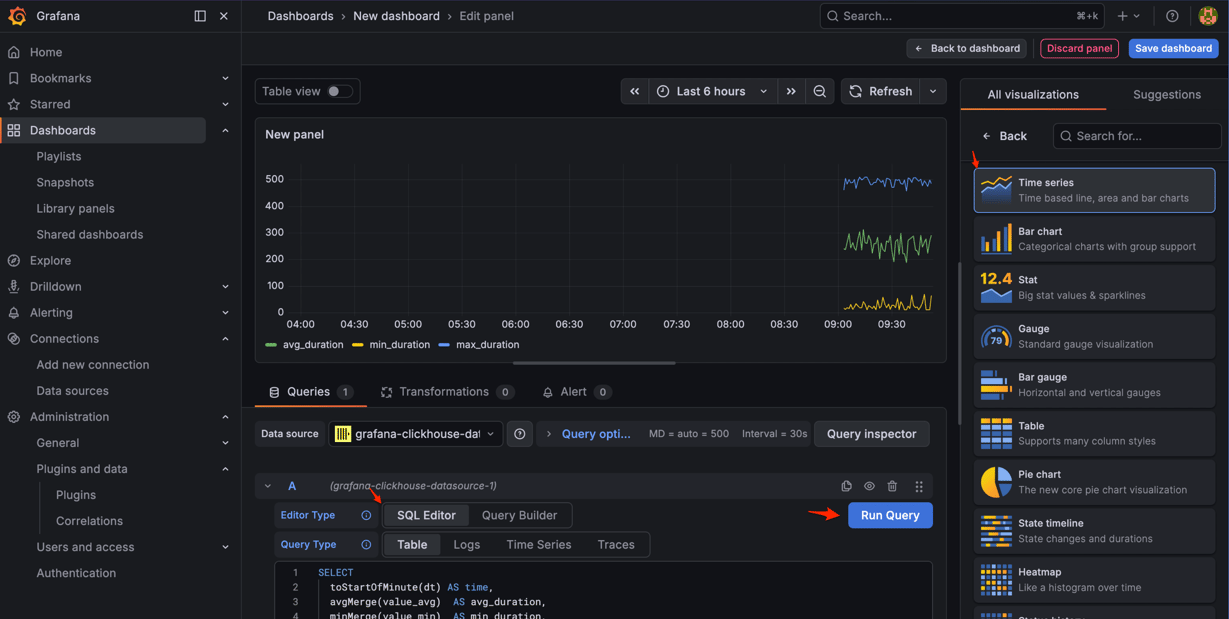

Build your first panel: average request duration

This time-series chart reads from the pre-aggregated metrics table. Because the aggregation states are computed at ingest time, this query is fast even over long time ranges.

1. Create a new dashboard and add a panel.
2. Select your Better Stack data source.
3. Set Query Type to Table.
4. Switch to the SQL editor, paste the query below, and set the visualization to Time series.

SELECT
  toStartOfMinute(dt) AS time,
  avgMerge(value_avg)  AS avg_duration,
  minMerge(value_min)  AS min_duration,
  maxMerge(value_max)  AS max_duration
FROM remote(t123456_your_source_metrics)
WHERE name = 'duration'
  AND dt >= $__fromTime
  AND dt <  $__toTime
GROUP BY time
ORDER BY time ASC

Replace t123456_your_source with your actual source identifier.

The $__fromTime and $__toTime macros are injected by the Grafana ClickHouse plugin and map to the dashboard time range picker. The Merge() functions resolve the partial aggregation states stored in the metrics table; use them whenever querying the metrics table.

You will get three lines (average, minimum, and maximum duration) in a single panel backed by sub-second queries.

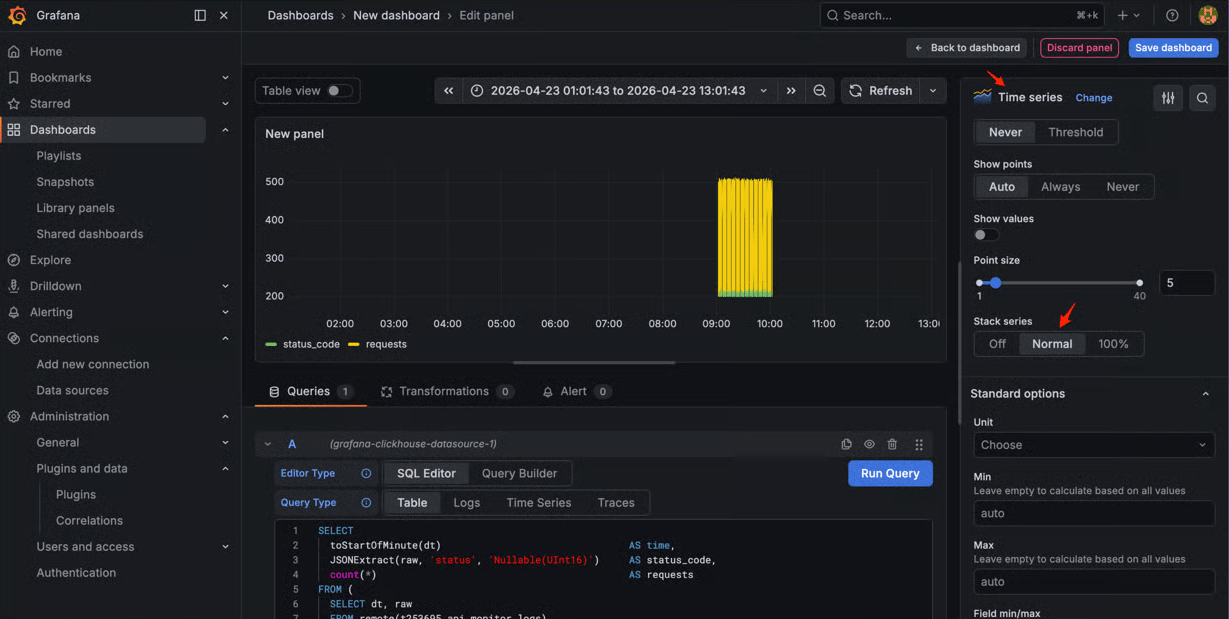

Build a second panel: request volume by status code

Not every signal warrants a permanently defined metric. This chart counts requests per minute directly from the raw logs table, using the wide events tier. It is slower for long windows but useful for attributes you are still exploring.

1. Add another panel and set Query Type to Table.
2. Paste the query below into the SQL editor. The UNION ALL combines hot storage for recent data with cold S3 storage for historical records.

SELECT
  toStartOfMinute(dt)                                AS time,
  JSONExtract(raw, 'status', 'Nullable(UInt16)')     AS status_code,
  count(*)                                           AS requests
FROM (
  SELECT dt, raw
  FROM remote(t123456_your_source_logs)
  UNION ALL
  SELECT dt, raw
  FROM s3Cluster(primary, t123456_your_source_s3)
  WHERE _row_type = 1
)
WHERE dt >= $__fromTime
  AND dt <  $__toTime
  AND status_code IS NOT NULL
GROUP BY time, status_code
ORDER BY time ASC

For time ranges under 24 hours, drop the s3Cluster union to keep latency low:

SELECT
  toStartOfMinute(dt)                                AS time,
  JSONExtract(raw, 'status', 'Nullable(UInt16)')     AS status_code,
  count(*)                                           AS requests
FROM remote(t123456_your_source_logs)
WHERE dt >= $__fromTime
  AND dt <  $__toTime
GROUP BY time, status_code
ORDER BY time ASC

Set the visualization to Time series. Grafana splits the results into separate lines per status code automatically. Set Stack series to Normal for a stacked area chart.

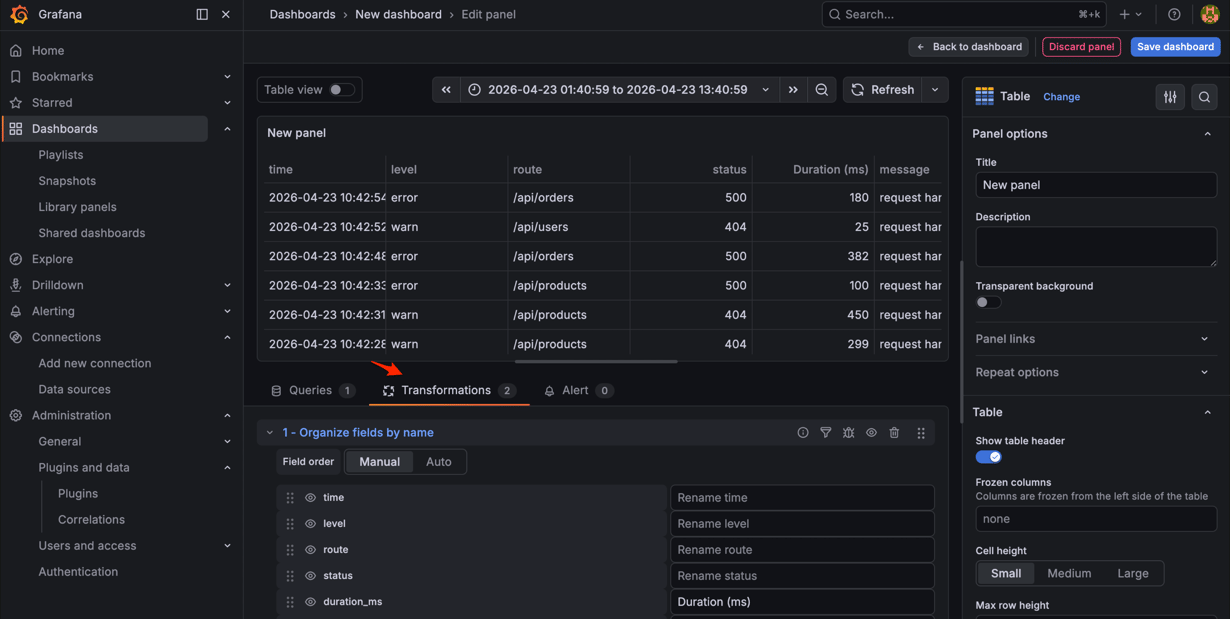

Build a log table

A table panel is the right choice for surfacing individual log entries alongside parsed fields.

1. Add a third panel and set the visualization to Table.
2. Set Query Type to Table.
3. Paste the query below into the SQL editor.

SELECT
  dt                                                      AS time,
  JSONExtract(raw, 'level',    'Nullable(String)')        AS level,
  JSONExtract(raw, 'route',    'Nullable(String)')        AS route,
  JSONExtract(raw, 'status',   'Nullable(UInt16)')        AS status,
  JSONExtract(raw, 'duration', 'Nullable(Float64)')       AS duration_ms,
  JSONExtract(raw, 'message',  'Nullable(String)')        AS message
FROM remote(t123456_your_source_logs)
WHERE dt >= $__fromTime
  AND dt <  $__toTime
  AND JSONExtract(raw, 'level', 'Nullable(String)') IN ('error', 'warn')
ORDER BY dt DESC
LIMIT 200

The LIMIT 200 guard prevents the panel from hitting concurrent query limits. For longer time windows, tighten the WHERE clause or use S3 sampling:

FROM s3Cluster(primary, t123456_your_source_s3, sampling = 0.1)
WHERE _row_type = 1

A sampling factor of 0.1 reads 10% of stored S3 files, usually enough to surface representative error patterns without scanning the full dataset.

In the Transformations tab, add Organize fields by name to rename and reorder columns (for example, changing duration_ms to Duration (ms)). Add Filter data by values to let users drill down by level or route without touching the SQL.

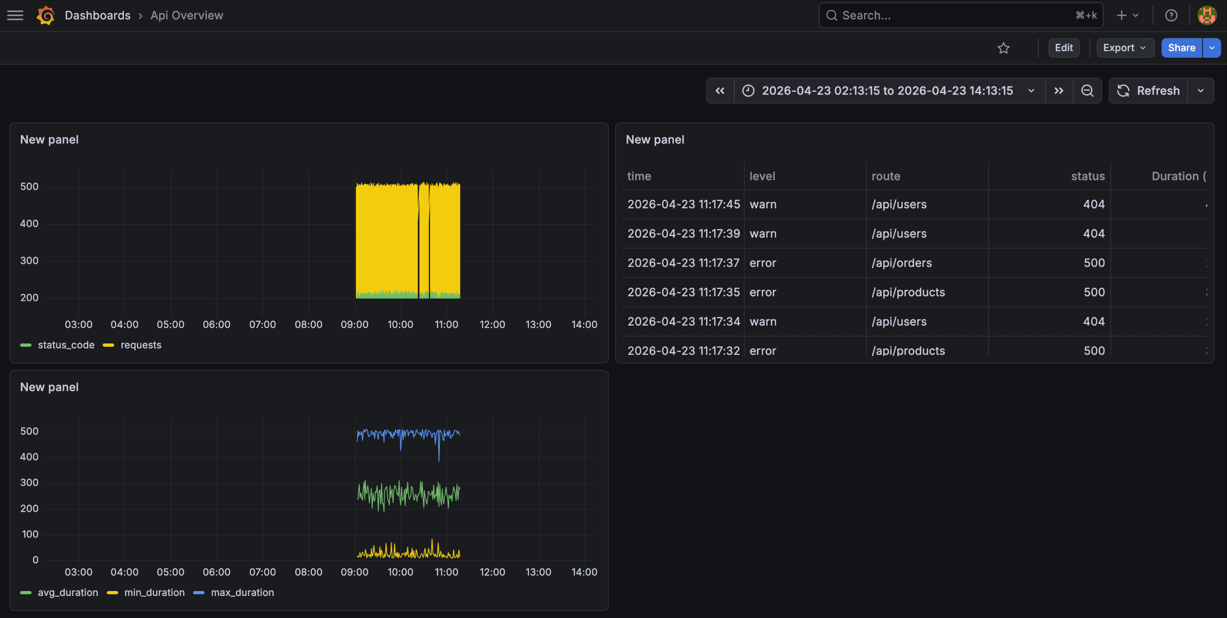

Arrange the three panels on the dashboard canvas like this:
