Koa.jsis an exciting new web framework for Node.js, and is designed with modern async/await features. It's not just great for managing standard HTTP requests; Koa also shines when it comes to adding WebSocket support, making it perfect for building lively real-time applications like instant messaging, live data updates, and collaborative spaces.
Unlike monolithic frameworks, Koa adopts a minimalist approach where WebSocket capabilities are seamlessly integrated through middleware packages like koa-websocket. This design offers a lightweight and modular architecture that scales smoothly, all while keeping the code clear and easy to follow.
This comprehensive tutorial teaches you to implement WebSocket functionality in Koa applications from scratch. You'll explore connection lifecycle management, real-time message distribution, and scalable client handling strategies.
Prerequisites
To develop WebSocket applications with Koa, you'll need Node.js version 14 or higher along with the npm package manager installed on your machine. This tutorial is designed assuming you're already familiar with Koa's middleware concepts and the modern JavaScript ES6+ features like async/await syntax.
Initializing your Koa WebSocket project
In this section, you will scaffold a new Node.js application and install the necessary packages for WebSocket integration, ensuring a structured development environment.
Create your project directory:
mkdir koa-websockets && cd koa-websockets
Initialize a package.json file with default configurations:
npm init -y
Enable ES module imports for modern JavaScript development:
npm pkg set type="module"
Install Koa along with the WebSocket middleware and static file serving capabilities:
npm install koa koa-websocket koa-static
Establish your main server file with foundational Koa setup:
import Koa from 'koa';
import serve from 'koa-static';
import { fileURLToPath } from 'url';
import { dirname, join } from 'path';
const app = new Koa();
const __dirname = dirname(fileURLToPath(import.meta.url));
// Serve static files
app.use(serve(join(__dirname, 'public')));
const PORT = process.env.PORT || 3000;
app.listen(PORT, () => {
console.log(`Server running on http://localhost:${PORT}`);
});
This setup initializes Koa with middleware for serving static files, which deliver browser assets. The configuration uses ES modules with correct path resolution and adheres to Koa's middleware-first architecture.
Next, create a client-side interface to test your WebSocket implementation. Build a public directory and add an HTML test client.
mkdir public && touch public/index.html
Create this WebSocket client interface in public/index.html:
<!DOCTYPE html>
<html>
<head>
<title>Koa WebSocket Demo</title>
<style>
body {
font-family: -apple-system, BlinkMacSystemFont, sans-serif;
margin: 50px;
}
.container {
max-width: 600px;
margin: 0 auto;
}
#messages {
border: 2px solid #e1e5e9;
height: 350px;
overflow-y: scroll;
padding: 15px;
margin-bottom: 15px;
border-radius: 8px;
background: #f8f9fa;
}
.input-group {
display: flex;
gap: 12px;
}
#messageInput {
flex: 1;
padding: 12px;
border: 2px solid #e1e5e9;
border-radius: 6px;
font-size: 16px;
}
#sendButton {
padding: 12px 24px;
background: #0066cc;
color: white;
border: none;
border-radius: 6px;
cursor: pointer;
font-size: 16px;
}
#sendButton:hover {
background: #0052a3;
}
.message {
margin-bottom: 10px;
padding: 8px 12px;
background: white;
border-radius: 6px;
border-left: 4px solid #0066cc;
}
</style>
</head>
<body>
<div class="container">
<h1>Koa WebSocket Demo</h1>
<div id="messages"></div>
<div class="input-group">
<input
type="text"
id="messageInput"
placeholder="Enter your message here..."
/>
<button id="sendButton" onclick="sendMessage()">Send</button>
</div>
</div>
<script>
const ws = new WebSocket("ws://localhost:3000");
const messagesDiv = document.getElementById("messages");
ws.onmessage = function (event) {
const messageElement = document.createElement("div");
messageElement.className = "message";
messageElement.textContent = event.data;
messagesDiv.appendChild(messageElement);
messagesDiv.scrollTop = messagesDiv.scrollHeight;
};
function sendMessage() {
const input = document.getElementById("messageInput");
if (input.value.trim()) {
ws.send(input.value);
input.value = "";
}
}
document
.getElementById("messageInput")
.addEventListener("keydown", function (e) {
if (e.key === "Enter") {
sendMessage();
}
});
</script>
</body>
</html>
This interface establishes a WebSocket connection to your server and provides an intuitive messaging interface. The design includes modern styling, automatic scrolling, and keyboard navigation for enhanced user experience.
Launch your development server to verify the initial setup:
node --watch server.js

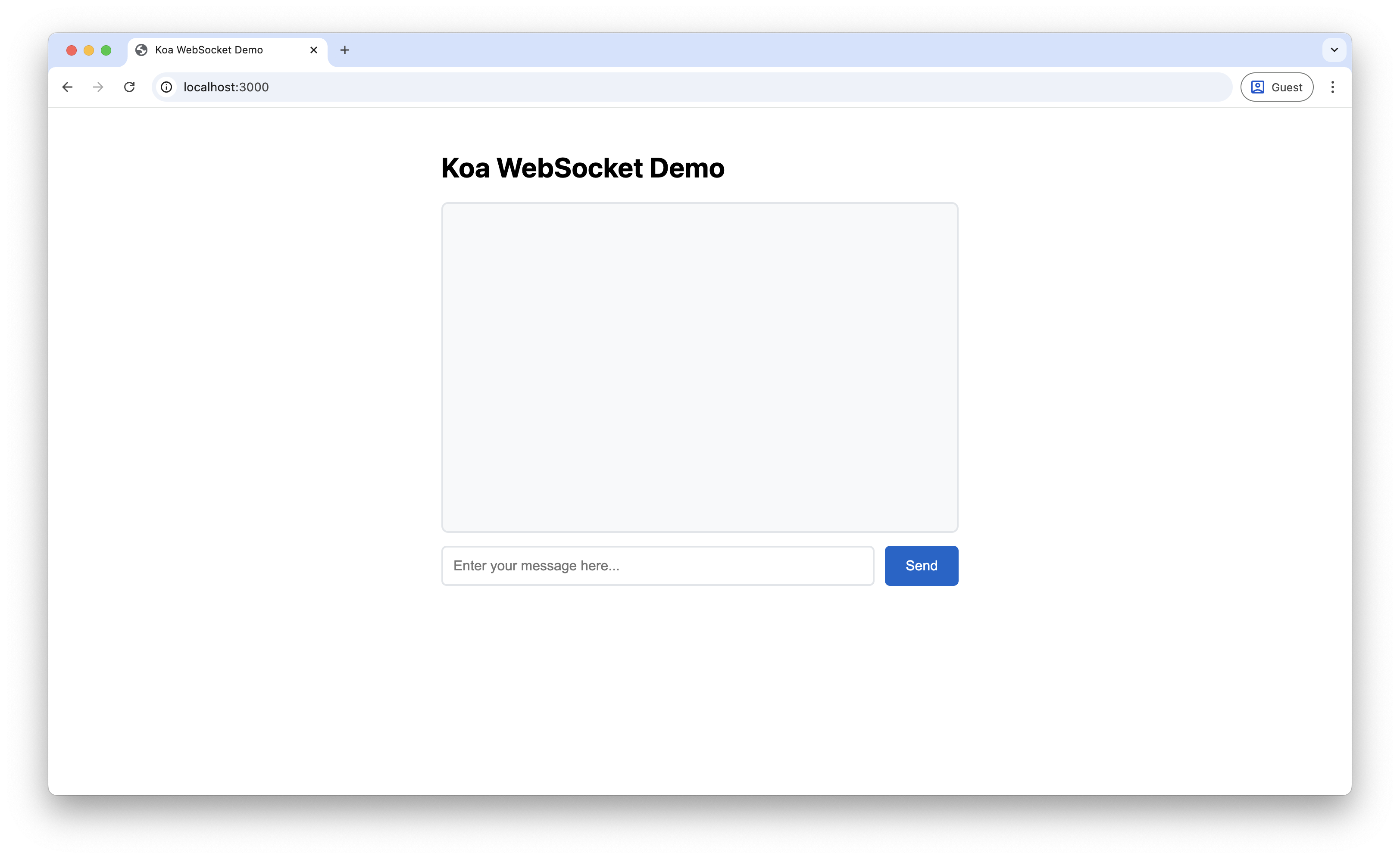

Navigate to http://localhost:3000 to view your demo interface:
The WebSocket connection will fail since we haven't configured the WebSocket middleware yet.
Integrating WebSocket middleware
Let's enhance your Koa server by adding WebSocket capabilities with the koa-websocket middleware. This useful package allows Koa to smoothly manage WebSocket connections alongside standard HTTP requests, making your server more versatile.
Configure the WebSocket middleware, and you'll be ready to create your first connection:
import Koa from 'koa';
import serve from 'koa-static';
import websocket from 'koa-websocket';
import { fileURLToPath } from 'url';
import { dirname, join } from 'path';
const app = websocket(new Koa());
const __dirname = dirname(fileURLToPath(import.meta.url));
// Serve static files
app.use(serve(join(__dirname, 'public')));
// WebSocket middleware
app.ws.use(async (ctx) => {
console.log('WebSocket connection established');
// Send welcome message
ctx.websocket.send('Welcome to Koa WebSocket server!');
// Handle incoming messages
ctx.websocket.on('message', (message) => {
const text = message.toString();
console.log('Received message:', text);
ctx.websocket.send(`Server echo: ${text}`);
});
// Handle connection close
ctx.websocket.on('close', () => {
console.log('WebSocket connection closed');
});
});
const PORT = process.env.PORT || 3000;
app.listen(PORT, () => {
console.log(`Server running on http://localhost:${PORT}`);
});
The websocket(new Koa()) wrapper adds WebSocket support to your Koa app, providing an app.ws property for middleware.
The middleware receives a Koa context with a websocket connection. It sends greetings, echoes messages, and logs connection events, using a middleware pattern consistent with Koa's async/await architecture.

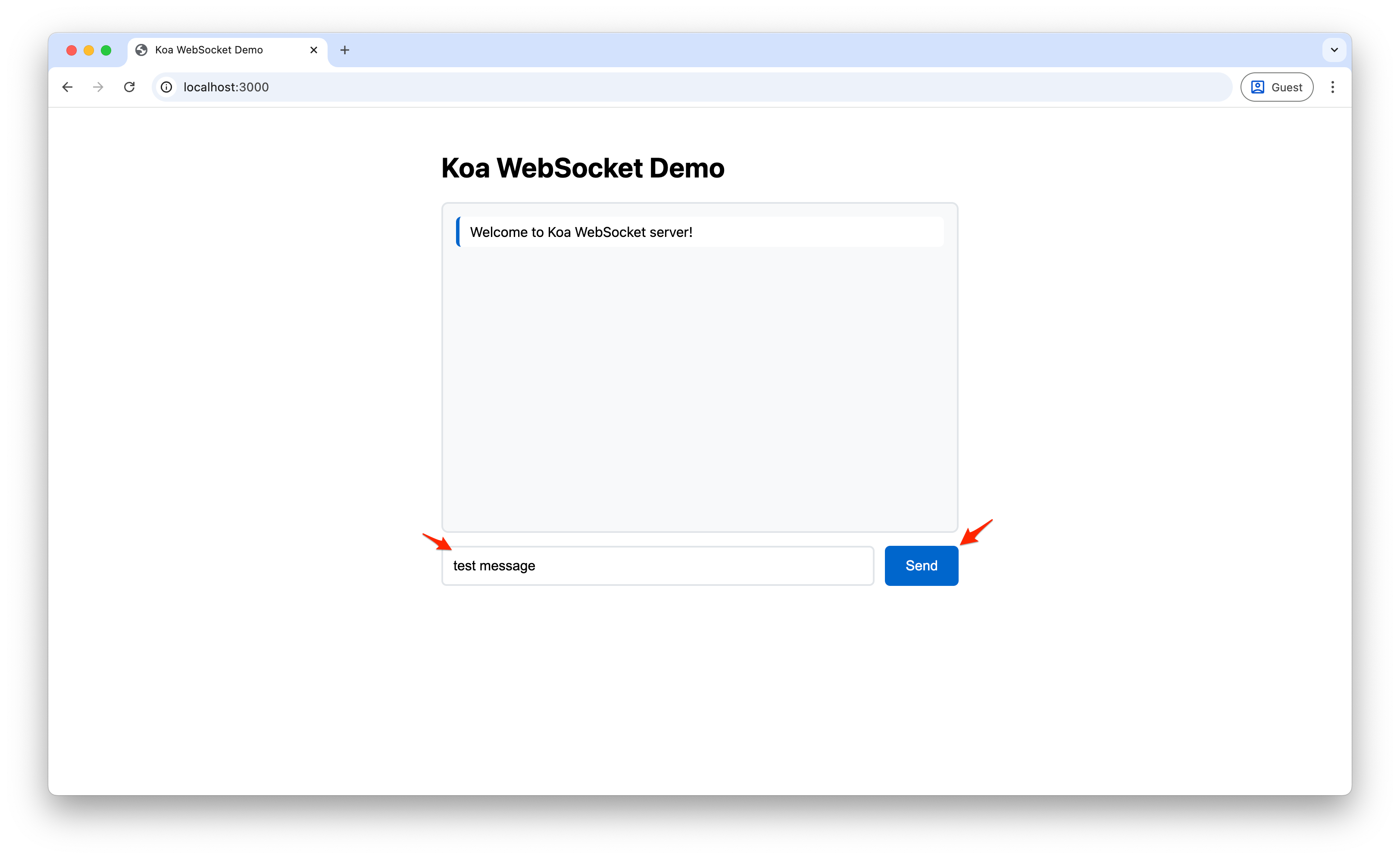

Restart your server and return to http://localhost:3000. Enter a message and press Enter:
You should see your message reflected with a "Server echo:" prefix appearing instantly:
Your Koa WebSocket server is operational. Next, we'll implement comprehensive error handling.
Implementing connection error handling
When developing production WebSocket applications, it's important to have strong error management in place to smoothly handle issues like network disruptions, client disconnections, and runtime exceptions.
While your current setup works well for simple cases, adding more resilience will help ensure everything runs smoothly in real-world environments.
Enhance your WebSocket middleware with comprehensive error handling and connection monitoring:
// ... previous imports ...
// WebSocket middleware
app.ws.use(async (ctx) => {
const clientAddress = ctx.request.ip;
console.log(`WebSocket connection established from ${clientAddress}`);
ctx.websocket.send('Welcome to Koa WebSocket server!');
ctx.websocket.on('message', (message) => {
try {
const text = message.toString();
console.log(`Message from ${clientAddress}:`, text);
// Verify connection is still active
if (ctx.websocket.readyState === ctx.websocket.OPEN) {
ctx.websocket.send(`Server echo: ${text}`);
}
} catch (error) {
console.error('Message processing error:', error);
}
});
// Handle WebSocket errors
ctx.websocket.on('error', (error) => {
console.error(`WebSocket error from ${clientAddress}:`, error);
});
ctx.websocket.on('close', (code, reason) => {
console.log(`Client ${clientAddress} disconnected - Code: ${code}, Reason: ${reason || 'none'}`);
});
});
// ... rest of server setup ...
These improvements add client IP tracking for enhanced debugging and comprehensive error event handling. The message handler now includes connection state validation to prevent transmission to closed connections. The close handler provides detailed diagnostic information including status codes and termination reasons.
Restart your server and test at http://localhost:3000. Closing browser tabs or refreshing pages will now generate detailed diagnostic output:
Restarting 'server.js'
Server running on http://localhost:3000
WebSocket connection established from ::1
Client ::1 disconnected - Code: 1001, Reason:
WebSocket connection established from ::1
This strong error handling sets a dependable foundation for building reliable production WebSocket applications.
Building message broadcasting capabilities
Most real-world WebSocket applications need to distribute messages across multiple connected clients simultaneously. Your current echo server only communicates with individual message senders. Let's implement a broadcasting system that enables rich multi-client interactions.
Create a connection management system for tracking and messaging multiple clients:
// ... previous imports ...
// Connection management
const activeConnections = new Set();
function broadcastMessage(message, excludeConnection = null) {
activeConnections.forEach(connection => {
if (connection !== excludeConnection && connection.readyState === connection.OPEN) {
try {
connection.send(message);
} catch (error) {
console.error('Broadcasting error:', error);
activeConnections.delete(connection);
}
}
});
}
// WebSocket middleware
app.ws.use(async (ctx) => {
const clientAddress = ctx.request.ip;
console.log(`WebSocket connection established from ${clientAddress}`);
// Register connection
activeConnections.add(ctx.websocket);
console.log(`Active connections: ${activeConnections.size}`);
// Send personalized welcome
ctx.websocket.send(`Welcome! There are ${activeConnections.size} users online.`);
// Announce new user to others
broadcastMessage(`A new user joined the chat! (${activeConnections.size} users online)`, ctx.websocket);
ctx.websocket.on('message', (message) => {
try {
const text = message.toString();
console.log(`Message from ${clientAddress}:`, text);
// Broadcast message to all other clients
broadcastMessage(`User message: ${text}`, ctx.websocket);
} catch (error) {
console.error('Message processing error:', error);
}
});
ctx.websocket.on('error', (error) => {
console.error(`WebSocket error from ${clientAddress}:`, error);
});
ctx.websocket.on('close', (code, reason) => {
activeConnections.delete(ctx.websocket);
console.log(`Client ${clientAddress} disconnected - Code: ${code}`);
console.log(`Remaining connections: ${activeConnections.size}`);
// Notify other users about departure
broadcastMessage(`A user left the chat. (${activeConnections.size} users online)`);
});
});
// ... rest of server setup ...
The activeConnections Set maintains references to all live WebSocket connections, while the broadcastMessage function distributes messages to every client except the sender. This implementation includes automatic cleanup that removes failed connections during broadcast attempts.
New connections receive personalized welcome messages showing current user counts, while existing users get join notifications. All user messages are distributed across the entire connection pool, creating an interactive chat environment.

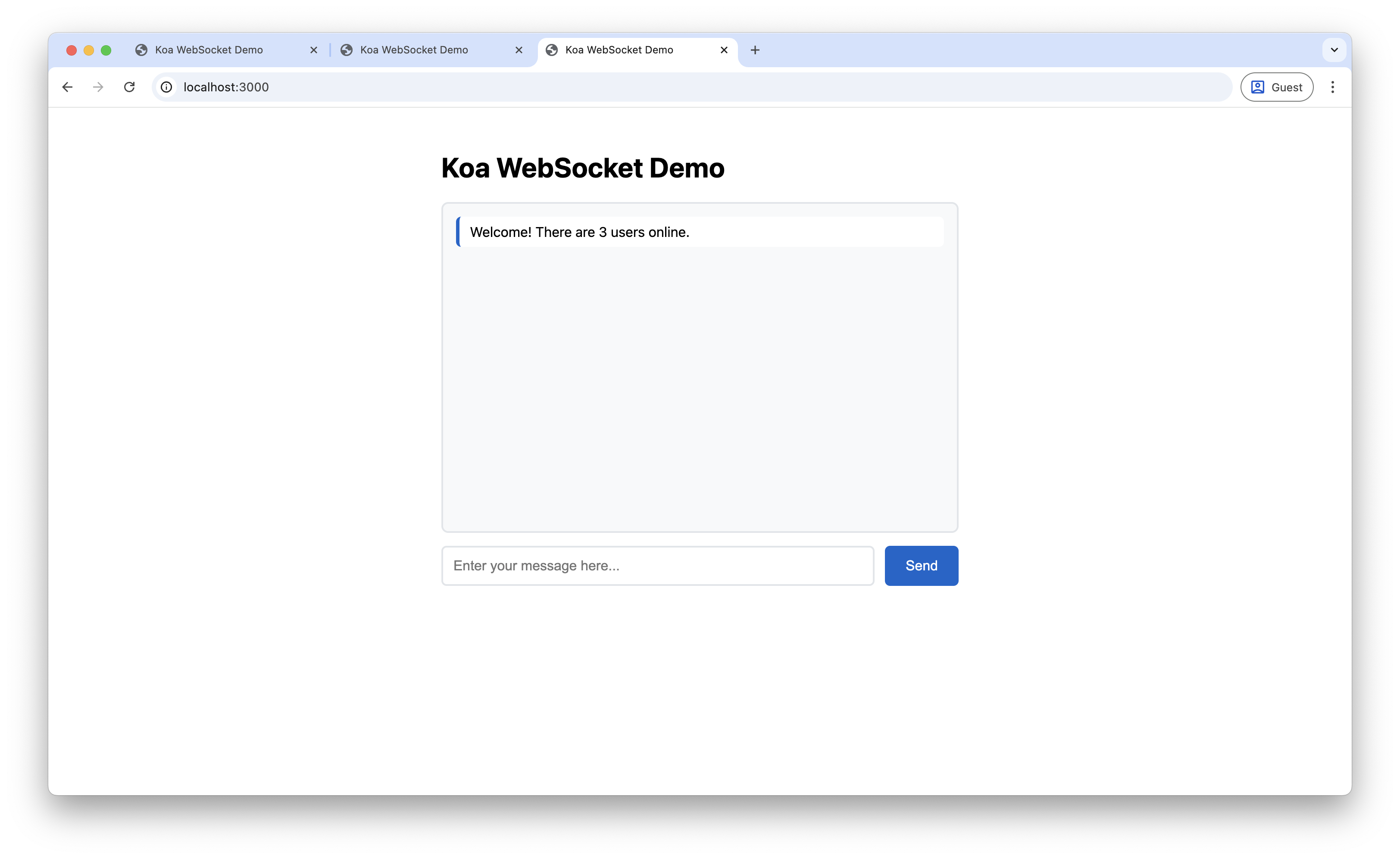

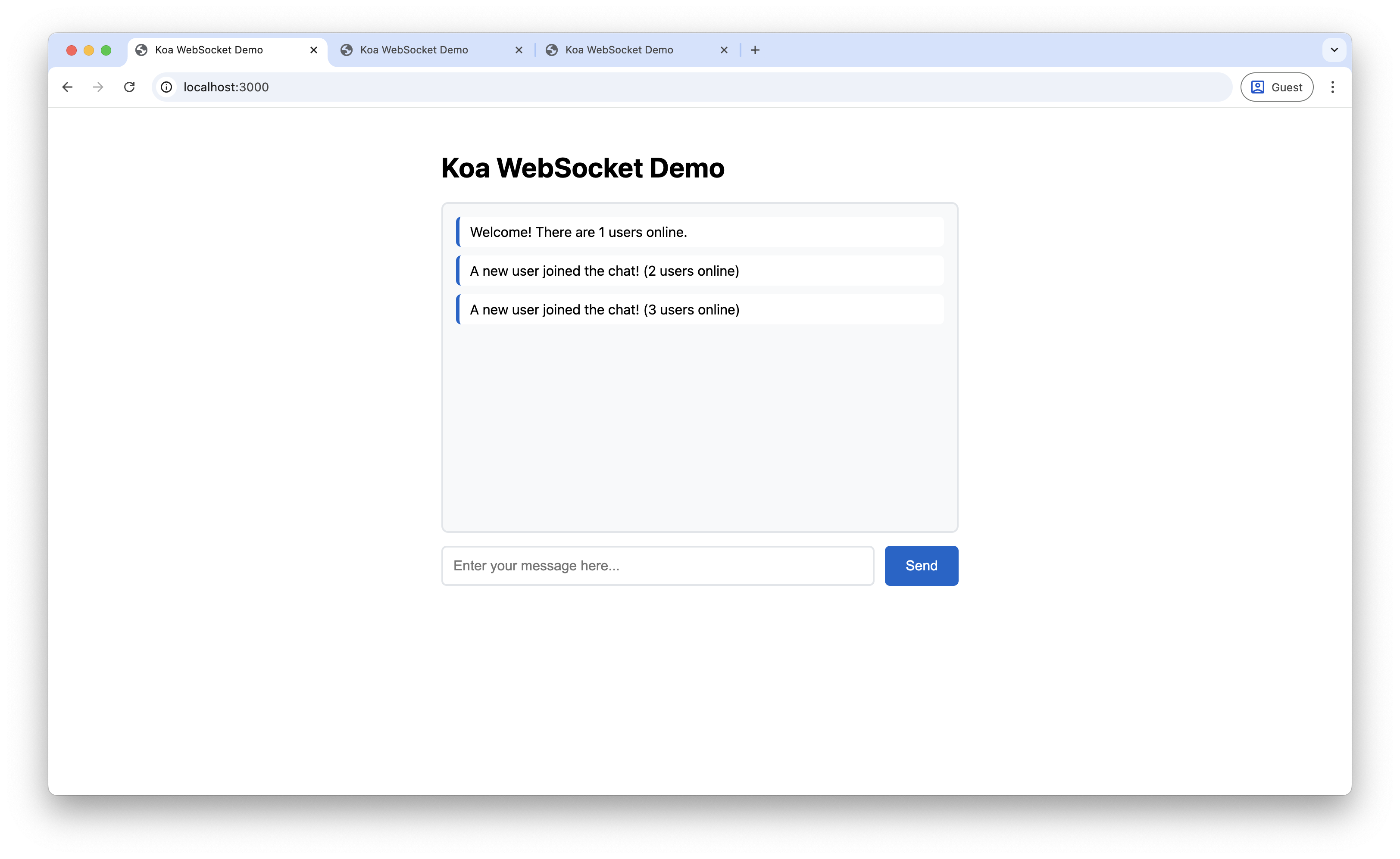

Restart your server and open multiple browser tabs pointing to http://localhost:3000. Observe connection notifications and user counts updating dynamically:
Send a message from any tab and watch it propagate instantly to all other connected clients:
You've successfully built a functional real-time multi-user chat system using Koa WebSockets.
Final thoughts
This guide walked you through building a complete real-time WebSocket application with Koa's middleware approach. You've progressed from a basic echo server to a multi-user platform with error handling and connection monitoring.
For advanced WebSocket patterns and scaling strategies, check out the koa-websocket documentation and Koa's middleware guides. Consider adding authentication, message persistence, and horizontal scaling for your next project.
