How to Set Up Redis for Caching in Node.js

Better Stack Team
Updated on May 5, 2022

Caching is one of the most effective optimizations that you can apply to an application. It involves storing some data in a temporary location called a cache so that it can be retrieved much faster when it is requested in the future. This data is often the result of some earlier computation, API request, or database query.

The main goal of caching is to improve application performance. Since data can often be retrieved much faster from the cache, the need to repeat a network request or database query for the same data is reduced and this can significantly reduce the latency associated with a particular operation. Caching also reduces network costs since less data is transferred, and makes application performance much more reliable and predictable as you're less susceptible to the effects of network congestion, service downtime, load spikes, and other challenges.

In this article, we'll discuss how to set up caching in a Node.js application through Redis, a popular and versatile in-memory database that is often used as a distributed database cache for web applications. It can be used with a wide variety of programming languages and environments, and it has a lot of other uses besides caching.

By following through with this tutorial, you will learn the following aspects of Redis caching in Node.js:

  • How to install and set up Redis for caching.

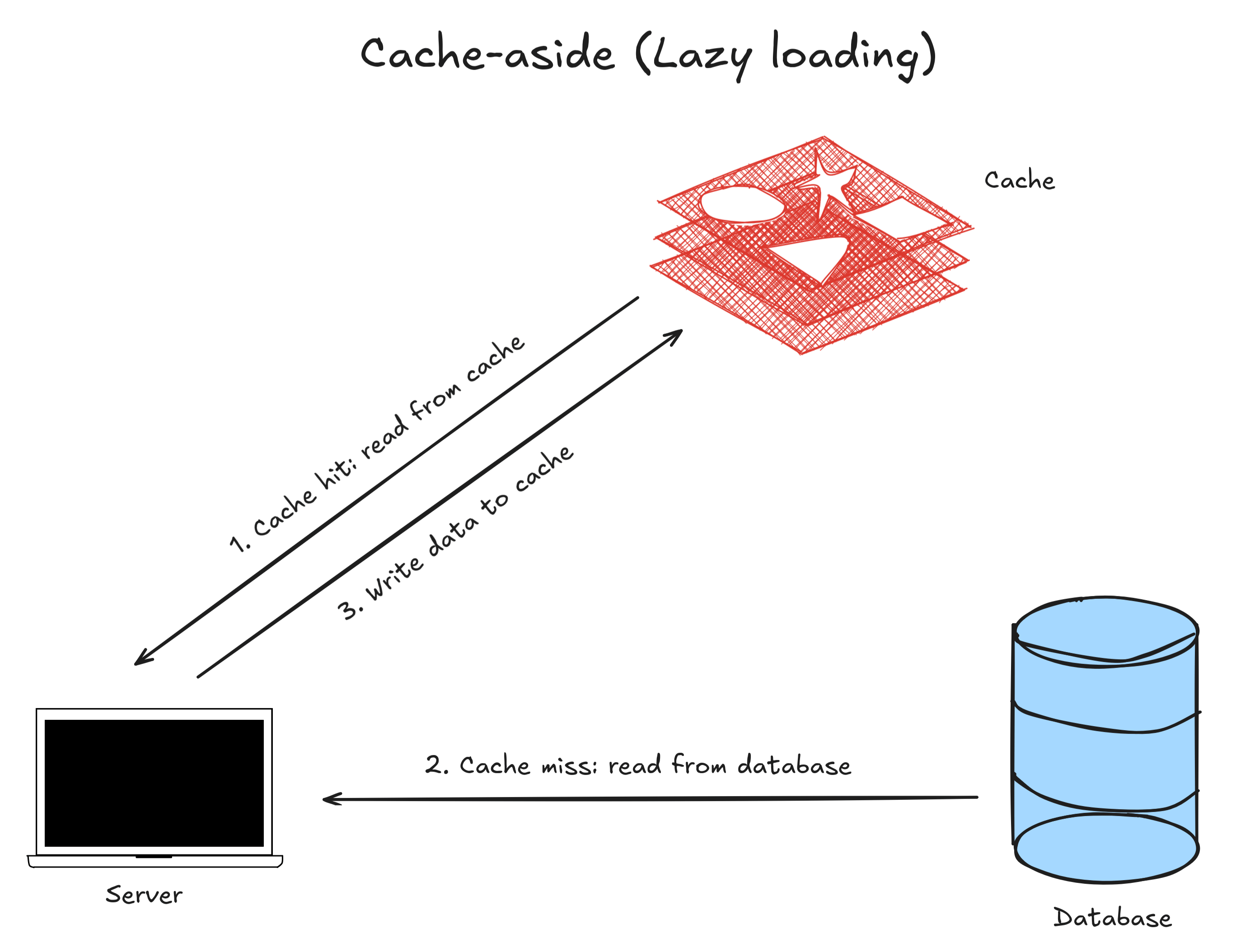

  • How to implement the popular Cache-aside (lazy load) pattern.
  • How to measure the performance of a web application through benchmarking.
  • Techniques to improve the effectiveness of caching.

Prerequisites

Before you proceed with the remainder of this tutorial, ensure that you have met the following requirements:

  • Basic experience with building server applications in Node.js.
  • A recent version of Node.js and npm installed on your computer or server.

Step 1 — Setting up the Node.js application

In this tutorial, we will demonstrate the concept of caching in Node.js by modifying the Hacker News Search application from the earlier tutorial on Express and Pug. You don't need to follow the tutorial to build the application; you can clone it to your machine using the command below:

git clone https://github.com/betterstack-community/hacker-news
Copied!

Once the command exits, change into the newly created hacker-news directory and install the project dependencies through npm:

cd hacker-news
Copied!
npm install
Copied!

Afterward, examine the contents of the server.js file in your text editor.

nano server.js
Copied!

The relevant lines in the file are shown below:

server.js
. . .

async function searchHN(query) {
  const response = await axios.get(
    `https://hn.algolia.com/api/v1/search?query=${query}&tags=story&hitsPerPage=90`
  );
  return response.data;
}

app.get('/search', async (req, res, next) => {
  try {
    const searchQuery = req.query.q;
    if (!searchQuery) {
      res.redirect(302, '/');
      return;
    }

    const results = await searchHN(searchQuery);
    res.render('search', {
      title: `Search results for: ${searchQuery}`,
      searchResults: results,
      searchQuery,
    });
  } catch (err) {
    next(err);
  }
});

. . .
Copied!

The /search route above expects a query which is subsequently passed on to the searchHN() function for querying the Hacker News API provided by Algolia to get the top stories for that search term. Once the JSON response from the API is retrieved, it is used to render an HTML document through the search.pug template in the views folder.

You can test the application by starting the development server through the command below. Note that the server will automatically restart whenever a change is detected in any project files.

npm run dev
Copied!

Afterward, head over to http://localhost:3000 (or http://<your_server_ip>:3000) in your web browser and make a search request for a popular term. You should observe that relevant results from Hacker News are fetched and displayed for your query.

Hacker News Application

Now that our demo application has been set up, let's create and run a benchmark to determine how quickly our application can resolve requests to the /search route so that we can figure out our current performance before we implement caching in an attempt to improve it.

Step 2 — Benchmarking the application with Artillery

In this step, we will utilize the Artillery package to measure our application's performance in its current state so that we can easily quantify the differences after adding caching through Redis. Having a baseline measurement is an essential step before carrying out any performance optimization. It helps you determine if the optimization had the desired effect and if the trade-offs are worth it.

Ensure that you are in the project directory, then install the artillery package globally through npm:

npm install -g artillery
Copied!

Afterward, the artillery command should be accessible. Ensure that running artillery --version yields a version number of 2.0.0 or higher:

artillery --version
Copied!
Output
Telemetry is on. Learn more: https://artillery.io/docs/resources/core/telemetry.html

        ___         __  _ ____
  _____/   |  _____/ /_(_) / /__  _______  __ ___
 /____/ /| | / ___/ __/ / / / _ \/ ___/ / / /____/
/____/ ___ |/ /  / /_/ / / /  __/ /  / /_/ /____/
    /_/  |_/_/   \__/_/_/_/\___/_/   \__  /
                                    /____/


VERSION INFO:

Artillery Core: 2.0.0-12
Artillery Pro:  not installed (https://artillery.io/product)

Node.js: v16.14.0
OS:      linux

Artillery utilizes test definition files to determine the configuration parameters for a test run. They are YAML files that consist of two main sections: config and scenarios. The former specifies settings for the test, such as target URL, HTTP headers, virtual users, requests per user, and more, while the latter describes the actions that each virtual user must take during the test.

Create an artillery.yml file in the root of your project directory and open it in your text editor:

nano artillery.yml
Copied!

Populate the file with the following code:

artillery.yml
config:
  target: "http://localhost:3000"
  phases:
    - duration: 60
      arrivalRate: 10

scenarios:
  - name: "Search HN for Programming content"
    flow:
      - get:
          url: "/search?q=Programming"
Copied!

In the config section, the target is the URL of the server. This phases block describes a load phase that lasts 30 seconds, where 10 new virtual users are created every second. When a virtual user is created, they execute the scenario that is defined in the scenarios block which is making a GET request to the /search route. After all the virtual users have completed their scenarios, the test will complete and a summary of the results will be printed to the console.

Although this test probably isn't representative of a real-world scenario, it will give us valuable data about the performance of the /search endpoint that we can refer back to after carrying out the planned optimizations. You should check out the Artillery docs to discover how to create realistic user flows for your application.

Let's go ahead and execute the artillery.yml script through the command shown below. Ensure that the Hacker News application is running in a separate terminal before executing this command.

artillery run artillery.yml
Copied!

You should observe the following summary at the bottom of the output produced by Artillery.

Output
. . .

All VUs finished. Total time: 1 minute, 1 second

--------------------------------
Summary report @ 12:10:08(+0000)
--------------------------------

http.codes.200: ................................................................ 600
http.request_rate: ............................................................. 10/sec
http.requests: ................................................................. 600
http.response_time:
  min: ......................................................................... 187
  max: ......................................................................... 2534
  median: ...................................................................... 584.2
  p95: ......................................................................... 1002.4
  p99: ......................................................................... 1587.9
http.responses: ................................................................ 600
vusers.completed: .............................................................. 600
vusers.created: ................................................................ 600
vusers.created_by_name.Search HN for Programming content: ...................... 600
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 191.5
  max: ......................................................................... 2539.2
  median: ...................................................................... 596
  p95: ......................................................................... 1002.4
  p99: ......................................................................... 1587.9

The exact numbers will likely differ in your test run, but the following is the explanation of the report above:

  • 10 requests were made to the server every second, and 600 requests in total.
  • All 600 requests were successful (200 OK).
  • The minimum and maximum response times was 187ms and 2534ms respectively.
  • The average response time was 584.2ms.
  • The 95th and 99th percentile numbers are 1002.4ms and 1587.9ms respectively. This means, 95% of the time, the request was fulfilled below 1002.4ms and 99% of the time, it was below 1587.9ms.

Now that we have some quantifiable data on the current performance of the /search route in our Node.js application, let's go ahead and install Redis in the next section.

Step 3 — Installing and setting up Redis

This section will describe how to install and set up Redis on Ubuntu 20.04. If you're on a different operating system, head to the download page to get the latest version for your system. Note that Redis is not officially supported in Windows, but you're able to install and set it up through Windows Subsystem for Linux (WSL) in Windows 10 or later.

Although Redis is already available in the default Ubuntu repositories, installing it from there is somewhat discouraged as the available version is usually not the latest. To ensure that we get the latest stable version, we'll use the official Ubuntu PPA which is maintained by the Redis team.

Run the following command in a new terminal instance to add the repository to the apt index. The local package index should update immediately after adding the repository.

sudo add-apt-repository ppa:redislabs/redis -y
Copied!

Afterward, install the redis package through the command below:

sudo apt install redis
Copied!

Once the command finishes, verify the version of Redis that was installed:

redis-server --version
Copied!
Output
Redis server v=6.2.6 sha=00000000:0 malloc=jemalloc-5.1.0 bits=64 build=9c9e426e2f96cc51

After installing Redis, open its configuration file in your text editor:

sudo nano /etc/redis/redis.conf
Copied!

Inside the file, find the supervised directive and change its value from no to systemd. This directive declares the init system that manages Redis as a service. It's being set to systemd here as that's what Ubuntu uses by default.

/etc/redis/redis.conf
. . .

# If you run Redis from upstart or systemd, Redis can interact with your
# supervision tree. Options:
#   supervised no      - no supervision interaction
#   supervised upstart - signal upstart by putting Redis into SIGSTOP mode
#   supervised systemd - signal systemd by writing READY=1 to $NOTIFY_SOCKET
#   supervised auto    - detect upstart or systemd method based on
#                        UPSTART_JOB or NOTIFY_SOCKET environment variables
# Note: these supervision methods only signal "process is ready."
#       They do not enable continuous liveness pings back to your supervisor.
supervised systemd

. . .
Copied!

Save and close the file after making the changes, then start the Redis service using the command below:

sudo systemctl start redis
Copied!

Go ahead and confirm that the Redis service is running through the following command:

sudo systemctl status redis
Copied!

You should observe the following output:

Output
● redis-server.service - Advanced key-value store
     Loaded: loaded (/lib/systemd/system/redis-server.service; enabled; vendor preset: enabled)
     Active: active (running) since Fri 2022-01-07 10:47:24 UTC; 4s ago
       Docs: http://redis.io/documentation,
             man:redis-server(1)
   Main PID: 793992 (redis-server)
     Status: "Ready to accept connections"
      Tasks: 5 (limit: 1136)
     Memory: 3.0M
     CGroup: /system.slice/redis-server.service
             └─793992 /usr/bin/redis-server 127.0.0.1:6379

Jan 07 10:47:24 ubuntu-20-04 systemd[1]: Starting Advanced key-value store...
Jan 07 10:47:24 ubuntu-20-04 systemd[1]: Started Advanced key-value store.

This indicates that Redis is up and running, and it is set up to automatically start every time the server is rebooted.

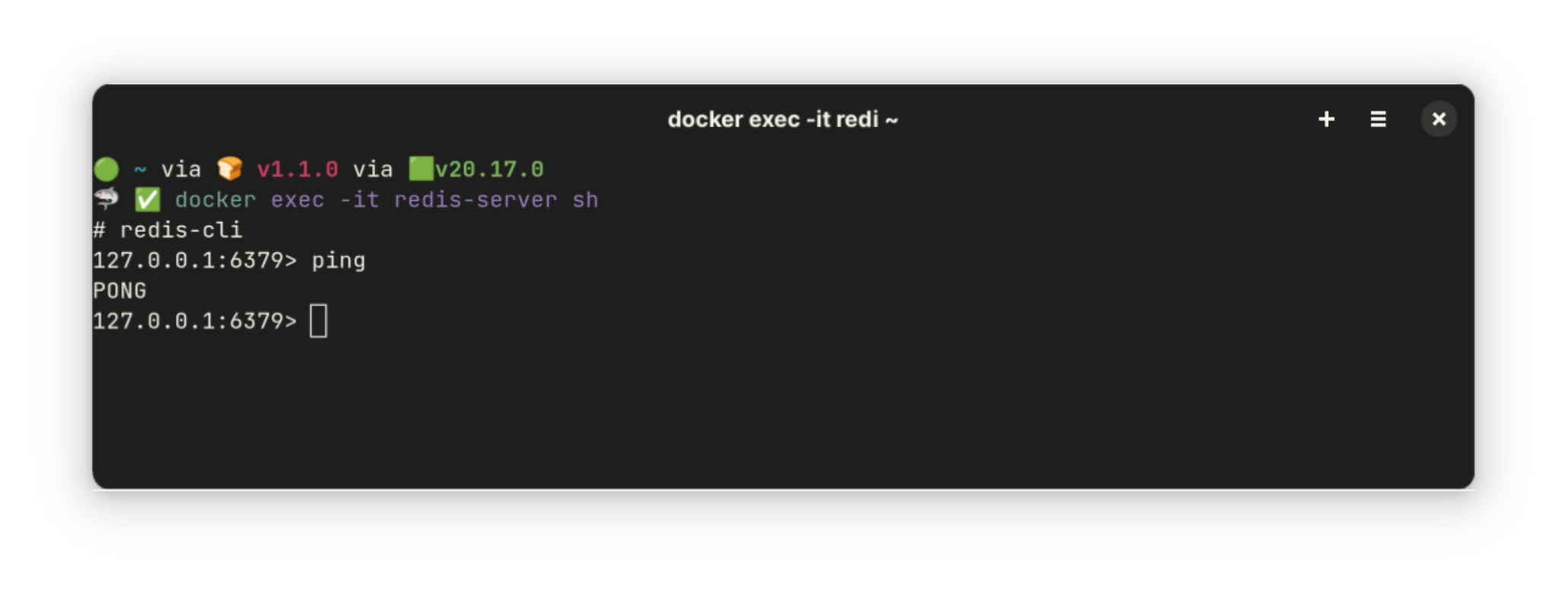

As a final way to confirm that your Redis installation is functioning correctly, launch the redis-cli prompt:

redis-cli
Copied!

In the resulting prompt, enter the ping command. You should receive a PONG output:

127.0.0.1:6379> ping
PONG
Copied!

You can type exit afterwards to exit the redis-cli prompt.

Now that your Redis instance is fully operational, let's go ahead and install the necessary packages for working with Redis in Node.js in the next section.

Step 5 — Installing and configuring the Redis package for Node.js

Utilizing Redis as a caching solution for Node.js applications is made easy through the redis package provided by the core team. Go ahead and install it in your application through the npm as shown below:

npm install redis
Copied!

Once the installation is completed, open the server.js file in your text editor:

nano server.js
Copied!

Import the redis package at the top of the file below the other imports, and create a new Redis client as shown below:

server.js
const express = require('express');
const path = require('path');
const axios = require('axios');
const redis = require('redis');
const redisClient = redis.createClient(6379);
(async () => {
redisClient.on('error', (err) => {
console.log('Redis Client Error', err);
});
redisClient.on('ready', () => console.log('Redis is ready'));
await redisClient.connect();
await redisClient.ping();
})();
. . .
Copied!

The default port for Redis is 6379 so that's what its supplied to the createClient() method. Other configuration options for this method can be accessed through its documentation page. After creating a Redis client, you should listen for at least the ready and error events before proceeding.

Once you save the file, the application will restart, and you will see 'Redis is ready' in the output provided that your Redis instance is up and running.

Output
. . .
[rundev] App server restarted
server-0  | Hacker news server started on port: 3000
server-0  | Redis is ready

In the next section, we'll implement a caching strategy for the /search route in our Hacker News application so that the speed of resolving search queries is greatly improved.

Step 6 — Caching API responses in Redis

In this step, you'll cache the responses for each search term in Redis so that they can be reused for subsequent requests if the exact search term is repeated. We'll utilize the popular Cache-Aside Pattern which specifies that an attempt is made to retrieve the requested data from the cache first before reaching out to the original data source if the item does not exist in the cache. Subsequently, the retrieved data is stored in the cache so that repeated requests for the same data can be resolved more quickly.

When a request is fulfilled by successfully retrieving the requested data from the cache, it is known as a cache hit. If the original data store has to be accessed to fulfill a request, it is known as a cache miss. A good caching strategy will ensure that most requests will result in a cache hit. However, the occasional cache miss cannot be avoided, especially for data that is updated frequently.

Start by opening the server.js file in your text editor:

nano server.js
Copied!

Go ahead and update the /search route as follows:

server.js
app.get('/search', async (req, res, next) => {
  try {
    const searchQuery = req.query.q;
    if (!searchQuery) {
      res.redirect(302, '/');
      return;
    }

    let results = null;

    const key = 'search:' + searchQuery.toLowerCase();

    const value = await redisClient.get(key);
    if (value) {
      results = JSON.parse(value);
      console.log('Cache hit for', key);
    } else {
      console.log('Cache miss for', key);
      results = await searchHN(searchQuery);
      redisClient.setEx(key, 300, JSON.stringify(results));
    }

    res.render('search', {
      title: `Search results for: ${searchQuery}`,
      searchResults: results,
      searchQuery,
    });
  } catch (err) {
    next(err);
  }
});
Copied!

This code uses the Redis client that we created in the previous step to cache and retrieve the JSON response received from the Algolia API. The Redis key consists of a concatenation of the search: prefix and a lowercase version of the search term so that each key is unique to the specified search term. The first step is to use the get() method to check the cache for the specified key. If this key doesn't exist, this method will return null so that you'll know to query the source for the data.

After retrieving the data, you can then use set() or setEx() to store the data in the cache under the key name. The setEx() method is preferred here so that a timeout of five minutes (300 seconds) is set on the key. Therefore, each cached result is reused for a maximum of five minutes before it is expired and refreshed which helps us avoid serving stale results for a specific search term.

Now that you've integrated the Redis library to implement a basic caching strategy, let's go ahead and rerun the earlier benchmark to see if the changes have had the desired effect.

Step 7 — Rerunning the benchmark

Return to the terminal and execute the command below to send virtual users to your server once again:

artillery run artillery.yml
Copied!

You should observe the following results once the command exits:

Output
. . .

All VUs finished. Total time: 1 minute, 1 second

--------------------------------
Summary report @ 21:49:49(+0000)
--------------------------------

http.codes.200: ................................................................ 600
http.request_rate: ............................................................. 10/sec
http.requests: ................................................................. 600
http.response_time:
  min: ......................................................................... 10
  max: ......................................................................... 303
  median: ...................................................................... 16.9
  p95: ......................................................................... 37
  p99: ......................................................................... 54.1
http.responses: ................................................................ 600
vusers.completed: .............................................................. 600
vusers.created: ................................................................ 600
vusers.created_by_name.Search HN for Programming content: ...................... 600
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 20.8
  max: ......................................................................... 348.1
  median: ...................................................................... 26.3
  p95: ......................................................................... 48.9
  p99: ......................................................................... 70.1

Compared to the previous run, we get much lower min and median response times (24ms and 26.3ms respectively), and 95% of all the requests were completed within 48.9ms. This is a massive improvement from earlier numbers (187ms, 584ms, and 1002ms respectively). The response times are much lower in this run because only the first couple of users hit the API directly, while the vast majority of the requests were fulfilled using the cached data.

Aside from the primary benefit of reduced latency and faster response times for users, it also minimizes our costs especially when we're working with a paid API since we can reuse a response several times before it needs to be refreshed. APIs also often have rate limits or downtime so this approach also helps prevent resource starvation.

Now that we've seen an example of how effective caching can be at improving the speed of request completion, let's discuss a few considerations for deciding what to cache and how we can achieve a high cache hit rate in our applications.

Step 8 — Achieving a high cache hit rate

When deciding on a caching strategy for your Node.js application, you need to find the most optimal way to cache data to achieve a high cache hit rate. The ideal candidates for caching are those data that can be reused for several requests before it needs to be updated. If the data changes frequently such that it cannot be reused for a subsequent request, then it is not a good candidate for caching.

In the above example, the results for a search term for Hacker News is unlikely to change significantly within five minutes so it makes sense to keep reusing the response from the Hacker News API for that duration of time. Depending on the sensitivity of the data, you can potentially cache it for more extended periods or even forever if the data is never going to change and thus can be reused indefinitely.

Another consideration for caching data is how frequently it is requested. Data that is not requested often should probably not be cached even if it can be reused. This is because cache storage is usually limited so you want it only to be used for frequently accessed resources in your application's hotspots.

The cache-aside pattern discussed and implemented above is just one of many patterns that you can employ for caching. Here's a brief overview of some other patterns that you can investigate further:

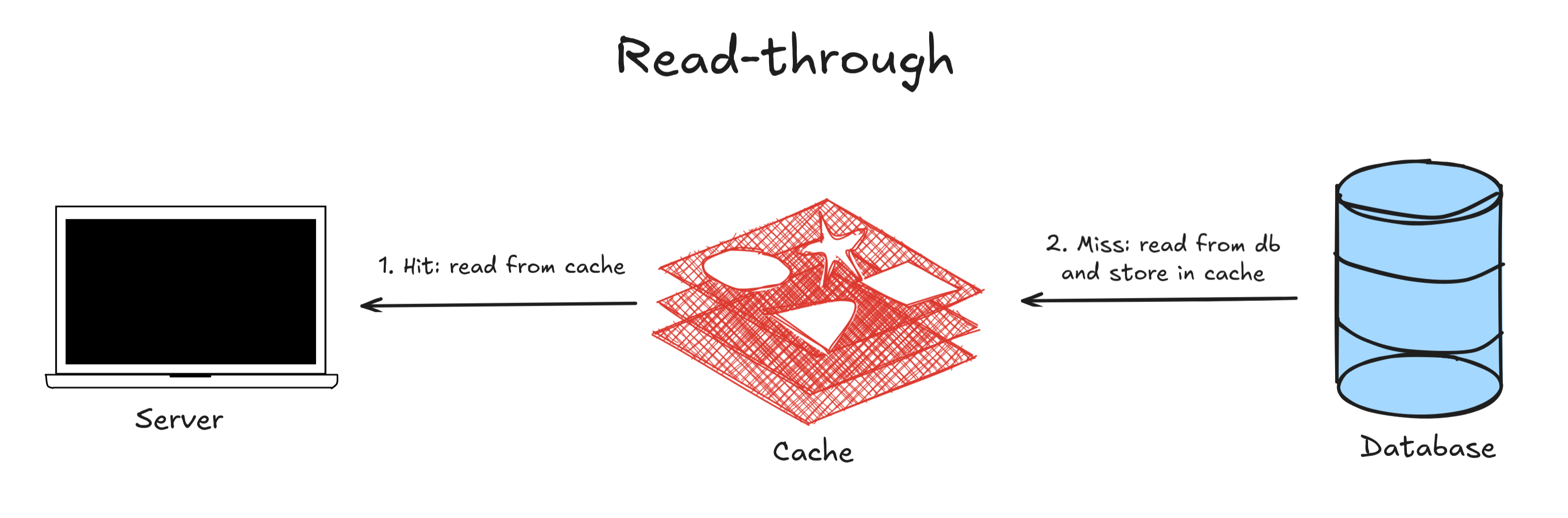

  • Read-through pattern: data is always read from the cache. When there's a cache miss, the data is loaded from the data source, stored in the cache, and returned to the application.

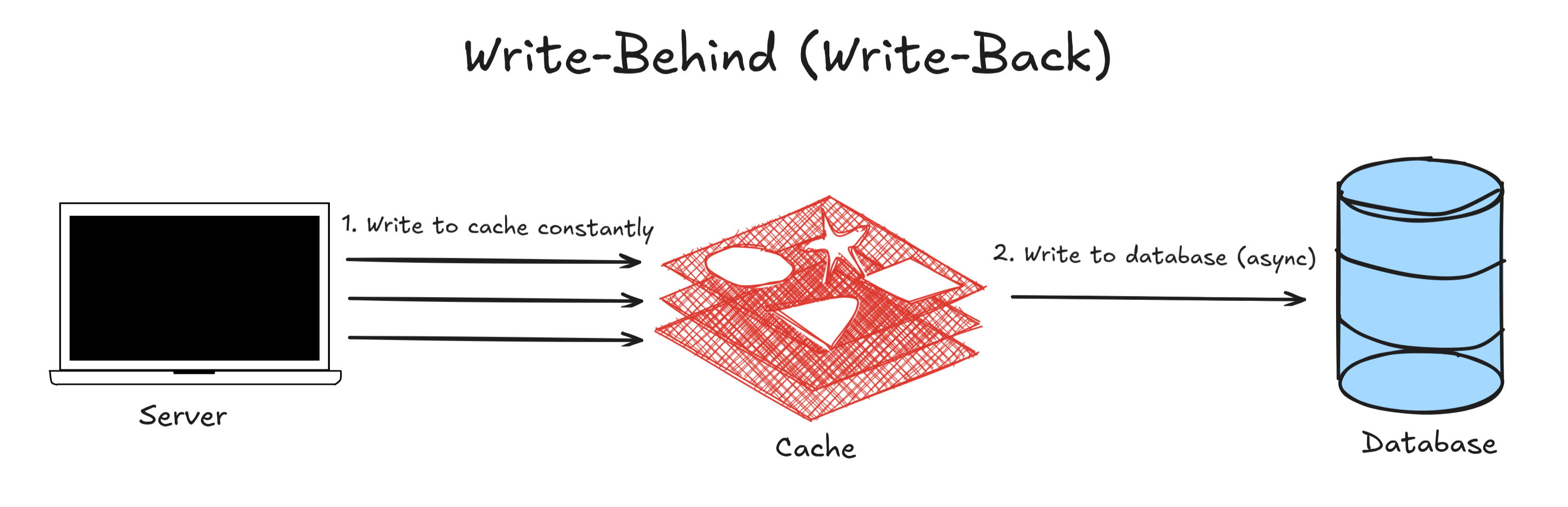

  • Write-behind (Write-back) pattern: data is always written to the cache first before it is updated in the data store sometime afterward.

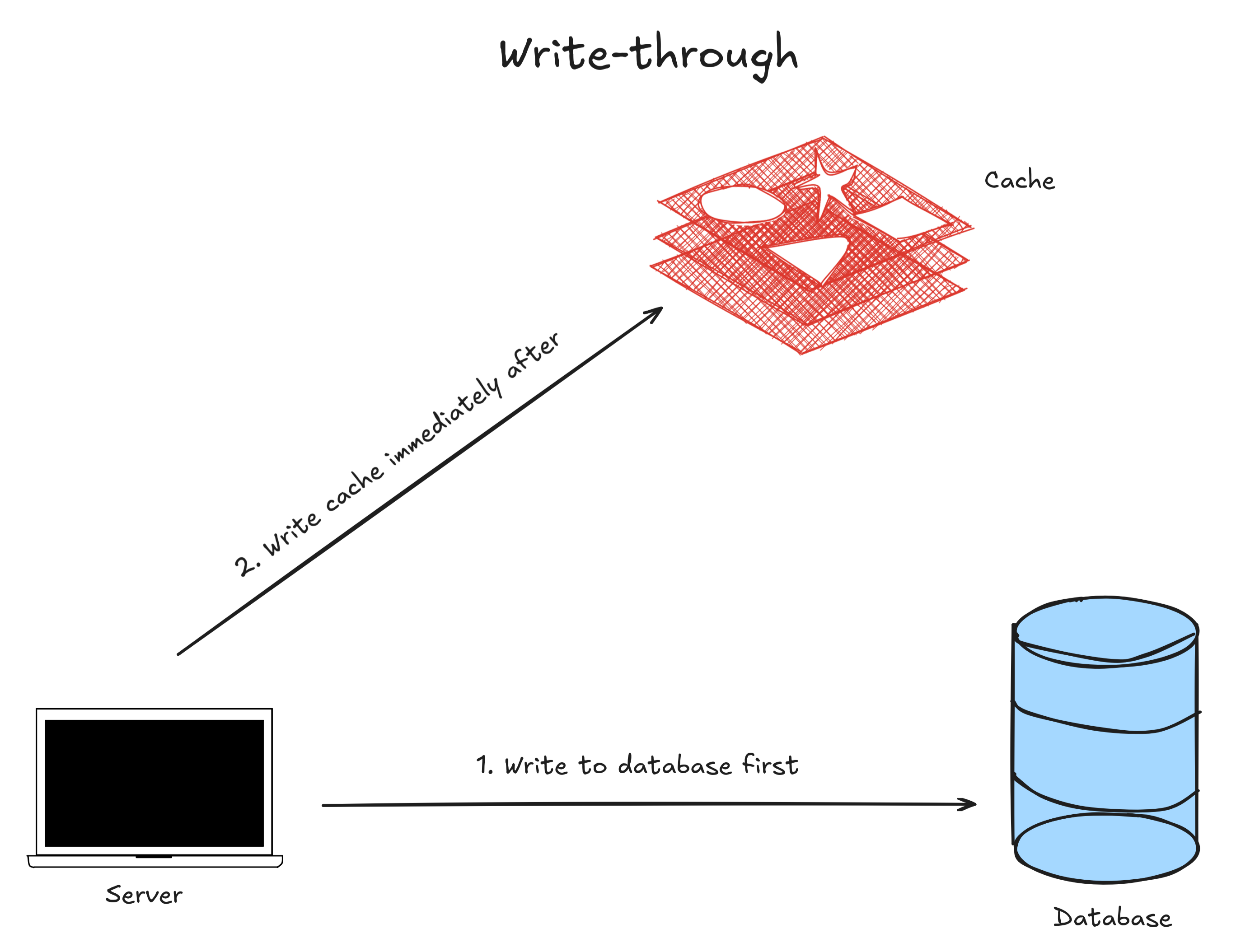

  • Write-through pattern: similar to Write-behind, but data store updates are made synchronously in the same transaction so that the cached data is never stale.
  • Refresh-ahead pattern: frequently accessed cached data is refreshed before they expire so that data staleness is minimized or eliminated entirely. It is commonly used in latency-sensitive workloads.

Before we wrap up this tutorial, let's discuss another important aspect of caching that you should be aware of.

Step 9 — Maintaining the cache

There are only two hard things in Computer Science: cache invalidation and naming things. -- Phil Karlton

Cache invalidation and cache eviction are important considerations when implementing a caching strategy in your application. The former deals with how cache entries are refreshed or removed when they go stale, while the latter is solely about removing items from the cache regardless of whether they are stale or not.

Cache invalidation

In the example used for this tutorial, we're using a Time To Live (TTL) value to invalidate our cached objects after five minutes. When an application attempts to read an expired key, it is treated as though the key is not found and the original data store is queried once again. This approach guarantees that even if the cached value goes stale, it won't be stale for more than five minutes. Depending on the data being cached, the tolerance for staleness can be lower or higher. For example, a trending news stories site might tolerate only a few seconds of staleness, but Covid-19 statistics may only need to be updated once or twice per day.

Cache eviction

Cache eviction refers to a policy by which older items are removed from the cache as newer ones are added. Since cache storage is usually limited compared to the primary data store, having such a policy will ensure that only relevant items are present in the cache at all times. We won't be able to cover the different eviction policies in this article, but you should investigate the following: Least Recently Used (LRU), Least Frequently Used (LFU), Most Recently Used (MRU), First In First Out (FIFO).

Conclusion

In this article, we discussed the what and why of caching in Node.js, then demonstrated how to benchmark an endpoint to measure its performance before applying any optimizations. Subsequently, we set up Redis and integrated it with our Node.js application before implementing the cache-aside pattern for caching API responses. We then repeated the benchmark to illustrate how caching can measurably improve application performance before rounding off with a discussion on some important caching concepts to be aware of.

The entire code used in this tutorial can be downloaded from GitHub. Thanks for reading, and happy coding!

Centralize all your logs into one place.
Analyze, correlate and filter logs with SQL.
Create actionable
dashboards with Grafana.
Share and comment with built-in collaboration.
Got an article suggestion? Let us know
Next article
How to Deploy, Manage and Scale Node.js Apps with PM2
Learn the most important PM2 features and how to use them to deploy, manage, and scale your Node.js applications in production
Licensed under CC-BY-NC-SA

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
