Monitoring Node.js Apps with OpenTelemetry Metrics

This tutorial provides a concise guide to implementing OpenTelemetry metrics within your Node.js applications. We'll cover the essentials of setting up the OpenTelemetry SDK, working with fundamental metric types (Counter, UpDownCounter, Gauge, and Histogram), and instrumenting your code to automatically capture HTTP metrics.

You'll also learn how to customize data aggregation, efficiently collect and filter metrics, and ultimately send this data to an OpenTelemetry Collector for routing to a backend of your choice. This hands-on approach will equip you with the knowledge and skills to leverage OpenTelemetry for enhanced observability and performance analysis in your Node.js applications.

Let's get started!

Prerequisites

Before proceeding with this tutorial, it will be helpful to review the basics of metrics in OpenTelemetry.

Step 1 — Setting up the demo project

Let's start by setting up the demo project, a basic Fastify "Hello World" server. Clone the GitHub repository to your machine:

git clone https://github.com/betterstack-community/otel-metrics-nodejs

Then navigate to the project directory:

cd otel-metrics-nodejs

The project uses Docker Compose, defined in docker-compose.yml, to set up two services:

services:
  app:
    build:
      context: .
      target: ${NODE_ENV}
    container_name: nodejs-metrics-demo
    environment:
      PORT: ${PORT}
      LOG_LEVEL: ${LOG_LEVEL}
      OTEL_SERVICE_NAME: ${OTEL_SERVICE_NAME}
      OTEL_EXPORTER_OTLP_ENDPOINT: ${OTEL_EXPORTER_OTLP_ENDPOINT}
    env_file:
      - ./.env
    ports:
      - 8000:8000
    networks:
      - nodejs-metrics-demo-network
    volumes:
      - .:/node/app

  collector:
    container_name: nodejs-metrics-demo-collector
    image: otel/opentelemetry-collector:latest
    volumes:
      - ./otelcol.yaml:/etc/otelcol/config.yaml
    networks:
      - nodejs-metrics-demo-network

networks:
  nodejs-metrics-demo-network:

• app: This service runs the application on port 8000. It uses nodemon for live reloading on file changes.

• collector: This service runs the OpenTelemetry Collector and configures it using the otelcol.yaml file.

Before launching the services, rename the .env.example file to .env. This file contains basic configuration settings for the application:

NODE_ENV=development
PORT=8000
OTEL_SERVICE_NAME=nodejs-metrics-demo
LOG_LEVEL=info
OTEL_EXPORTER_OTLP_ENDPOINT=http://nodejs-metrics-demo-collector:4318

mv .env.example .env

To launch both services, execute this command:

docker compose up

You should see output similar to the following:

. . .
nodejs-metrics-demo            | > otel-metrics-nodejs@1.0.0 dev
nodejs-metrics-demo            | > nodemon main.js
nodejs-metrics-demo            |
nodejs-metrics-demo            | [nodemon] 3.1.7
nodejs-metrics-demo            | [nodemon] to restart at any time, enter `rs`
nodejs-metrics-demo            | [nodemon] watching path(s): *.*
nodejs-metrics-demo            | [nodemon] watching extensions: js,mjs,cjs,json
nodejs-metrics-demo            | [nodemon] starting `node main.js`
nodejs-metrics-demo            | {"level":30,"time":1730991149200,"pid":32,"hostname":"f1dce9ace51f","msg":"Server listening at http://127.0.0.1:8000"}
nodejs-metrics-demo            | {"level":30,"time":1730991149201,"pid":32,"hostname":"f1dce9ace51f","msg":"Server listening at http://192.168.32.3:8000"}
. . .

To test the application, send a request to the root endpoint from a different terminal:

curl http://localhost:8000

The response should be:

Hello world

Now that the services are up and running, let's go ahead and set up the OpenTelemetry SDK in the next step.

Step 2 — Initializing the OpenTelemetry SDK

Before you can instrument your application with OpenTelemetry, install the required packages:

npm install @opentelemetry/api @opentelemetry/resources @opentelemetry/sdk-metrics @opentelemetry/semantic-conventions

This installs the following OpenTelemetry SDK components:

• @opentelemetry/api: Provides the Node.js implementation of OpenTelemetry APIs.
• @opentelemetry/sdk-metrics: Implements the OpenTelemetry Metrics SDK for Node.js.
• @opentelemetry/sdk-node: This package provides the full OpenTelemetry SDK for Node.js.
• @opentelemetry/semantic-conventions: This package implements OpenTelemetry semantic conventions.
• @opentelemetry/resources: Enables the creation and representation of OpenTelemetry resources.
• @opentelemetry/instrumentation: This package provides a Scope type to signal the source of telemetry data.

Next, initialize a MeterProvider to manage metrics within your application. This step is crucial; otherwise, OpenTelemetry defaults to a no-operation mode, and no data is collected.

Create an otel.js file at the project root with the following code to set up the OpenTelemetry SDK:

[otel.js]
import { Resource } from "@opentelemetry/resources";
import {
    ConsoleMetricExporter,
    MeterProvider,
    PeriodicExportingMetricReader,
} from "@opentelemetry/sdk-metrics";
import { NodeSDK, metrics } from "@opentelemetry/sdk-node";
import {
    ATTR_SERVICE_NAME,
    ATTR_SERVICE_VERSION,
} from "@opentelemetry/semantic-conventions";

const resource = Resource.default().merge(
    new Resource({
        [ATTR_SERVICE_NAME]: process.env.OTEL_SERVICE_NAME,
        [ATTR_SERVICE_VERSION]: "0.1.0",
    }),
);

const metricReader = new PeriodicExportingMetricReader({
    exporter: new ConsoleMetricExporter(),

    // Default is 60000ms (60 seconds). Set to 3 seconds for demonstrative purposes only.
    exportIntervalMillis: 3000,
});

const sdk = new NodeSDK({
    resource,
    metricReader,
});

process.on("beforeExit", async () => {
    await sdk.shutdown();
});

sdk.start();

This code configures a metrics system for your Node.js application using OpenTelemetry. It defines a resource to identify your application, specifying its name and version. A metricReader is created, set to export metrics to the console every three seconds for demonstration purposes. Finally, a NodeSDK() is configured with the defined metricReader and resource, and initialized.

Now, modify your main.js file to incorporate the OpenTelemetry setup:

import "./otel.js";
import Fastify from "fastify";

. . .

This imports the otel.js file, initializing the OpenTelemetry SDK within your application.

With this foundation in place, you can proceed to automatically instrument the Fastify server to collect metrics.

Step 3 — Automatically instrument HTTP server metrics

OpenTelemetry offers automatic instrumentation for popular libraries, saving you time and allowing you to concentrate on metrics specific to your business logic. Since this application uses the Fastify server, you'll utilize the corresponding instrumentation package: @opentelemetry/instrumentation-fastify.

If you're using a different framework (such as Express), you can find the appropriate instrumentation library in the OpenTelemetry Registry.

Install the Fastify instrumentation along with the generic HTTP instrumentation:

npm install @opentelemetry/instrumentation-http @opentelemetry/instrumentation-fastify

Then, update your otel.js file:

import { FastifyInstrumentation } from "@opentelemetry/instrumentation-fastify";
import { HttpInstrumentation } from "@opentelemetry/instrumentation-http";
import { Resource } from "@opentelemetry/resources";

. . .

const sdk = new NodeSDK({
    resource,
    metricReader,
    instrumentations: [new HttpInstrumentation(), new FastifyInstrumentation()],
});

. . .

These packages automatically add both metric and trace instrumentation for the http and fastify packages. Since you haven't set up a trace provider yet, traces will default to a no-op implementation.

After modifying the code, the server will automatically restart. Send a request to the root endpoint next:

curl http://localhost:8000

Hello world

You'll observe the following output in your console:

{
  descriptor: {
    name: 'http.server.duration',
    type: 'HISTOGRAM',
    description: 'Measures the duration of inbound HTTP requests.',
    unit: 'ms',
    valueType: 1,
    advice: {}
  },
  dataPointType: 0,
  dataPoints: [
    {
      attributes: {. . .},
      startTime: [ 1731050420, 601000000 ],
      endTime: [ 1731050423, 231000000 ],
      value: {
        min: 4.938558,
        max: 4.938558,
        sum: 4.938558,
        buckets: {
          boundaries: [
               0,    5,    10,   25,
              50,   75,   100,  250,
             500,  750,  1000, 2500,
            5000, 7500, 10000
          ],
          counts: [
            0, 1, 0, 0, 0, 0,
            0, 0, 0, 0, 0, 0,
            0, 0, 0, 0
          ]
        },
        count: 1
      }
    }
  ]
}
{
  descriptor: {
    name: 'http.client.duration',
    type: 'HISTOGRAM',
    description: 'Measures the duration of outbound HTTP requests.',
    unit: 'ms',
    valueType: 1,
    advice: {}
  },
  dataPointType: 0,
  dataPoints: [
    {
      attributes: { 'http.method': 'POST', 'net.peer.name': 'localhost' },
      startTime: [ 1731062189, 890000000 ],
      endTime: [ 1731062197, 316000000 ],
      value: {
        min: 5.970701,
        max: 5.970701,
        sum: 5.970701,
        buckets: {
          boundaries: [
               0,    5,    10,   25,
              50,   75,   100,  250,
             500,  750,  1000, 2500,
            5000, 7500, 10000
          ],
          counts: [
            0, 0, 1, 0, 0, 0,
            0, 0, 0, 0, 0, 0,
            0, 0, 0, 0
          ]
        },
        count: 1
      }
    }
  ]
}

Currently, only two metrics are automatically instrumented:

1. http.server.duration: A histogram measuring the duration of inbound HTTP requests, with data grouped into buckets for analyzing response times.
2. http.client.duration: A histogram measuring the duration of bound HTTP requests.

In the next steps, you'll we'll look at creating custom metrics specific to your needs.

Step 4 — Creating a Counter metric

To demonstrate the creation of a Counter metric, let's track the cumulative number of HTTP requests received by the server.

Edit your main.js file to include the new metric setup:

import "./otel.js";
import { metrics } from "@opentelemetry/api";
import Fastify from "fastify";

const meter = metrics.getMeter(process.env.OTEL_SERVICE_NAME);

const httpRequestCounter = meter.createCounter("http.server.requests", {
    description: "Total number of HTTP requests received.",
    unit: "{requests}",
});

const fastifyApp = Fastify({
    logger: true,
});

fastifyApp.get("/", (req, reply) => {
    httpRequestCounter.add(1);
    reply.send("Hello World!");
});

const address = await fastifyApp.listen({
    host: "0.0.0.0",
    port: process.env.PORT || "8000",
});

This code snippet introduces a custom counter metric to your application.

First, it obtains a meter instance using metrics.getMeter(process.env.OTEL_SERVICE_NAME). This meter is associated with your service name, providing context for the metrics it generates.

Then, it defines a counter metric named http.server.requests with the description "Total number of HTTP requests received". This counter will track the cumulative number of HTTP requests handled by your server.

Inside the route handler for the root path, the counter is incremented each time a new request is received.

The server will automatically restart after you save these changes. Send another request to the server's root:

curl http://localhost:8000

You'll now see the new counter metric in the console output:

{
  descriptor: {
    name: 'http.server.requests',
    type: 'COUNTER',
    description: 'Total number of HTTP requests received.',
    unit: '{requests}',
    valueType: 1,
    advice: {}
  },
  dataPointType: 3,
  dataPoints: [
    {
      attributes: {},
      startTime: [ 1731062906, 735000000 ],
      endTime: [ 1731062907, 834000000 ],
      value: 1
    }
  ]
}

This output shows the http.server.requests counter metric with a value of 1, indicating that one HTTP request has been processed since the server started. The startTime and endTime fields represent the time interval over which this count was recorded.

Step 5 — Creating an UpDownCounter metric

An UpDownCounter metric is used to track values that can both increase and decrease. This makes it well-suited for monitoring things like the current number of active requests being handled by your server. Here, you'll implement an UpDownCounter to keep track of these in-progress requests.

Modify your main.js file to incorporate this new metric:

import "./otel.js";
import { metrics } from "@opentelemetry/api";
import Fastify from "fastify";

const meter = metrics.getMeter(process.env.OTEL_SERVICE_NAME);

const httpRequestCounter = meter.createCounter("http.server.requests", {
    description: "Total number of HTTP requests received.",
    unit: "{requests}",
});
const activeRequestUpDownCounter = meter.createUpDownCounter(
    "http.server.active_requests",
    {
        description: "Number of in-flight requests.",
        unit: "{requests}",
    },
);

const fastifyApp = Fastify({
    logger: true,
});

fastifyApp.get("/", async (req, reply) => {
    httpRequestCounter.add(1);
    activeRequestUpDownCounter.add(1);
    await new Promise((resolve) => setTimeout(resolve, 5000));
    reply.send("Hello World!");
    activeRequestUpDownCounter.add(-1);
});

const address = await fastifyApp.listen({
    host: "0.0.0.0",
    port: process.env.PORT || "8000",
});

In this code, activeRequestUpDownCounter is your new UpDownCounter. When the server receives a request, this counter increases by one; when a response is sent, it decreases by one.

This provides a real-time view of the number of requests currently being processed. To make this behavior more visible, a simulated delay of 5 seconds is introduced using new Promise() to keep requests active for a longer period.

After saving the file, generate some traffic to the server's root endpoint. You can use a tool like wrk for this:

wrk -t 10 -c400 -d 10s --latency "http://localhost:8000"

This command simulates a high volume of traffic with 10 threads and 400 connections sustained over 10 seconds.

While the load test is running, you'll observe the http.server.active_requests metric fluctuating, reflecting the number of requests currently in progress. Once the wrk command finishes, this value will eventually return to 0.

{
  descriptor: {
    name: 'http.server.active_requests',
    type: 'UP_DOWN_COUNTER',
    description: 'Number of in-flight requests.',
    unit: '{requests}',
    valueType: 1,
    advice: {}
  },
  dataPointType: 3,
  dataPoints: [
    {
      attributes: {},
      startTime: [ 1731064111, 178000000 ],
      endTime: [ 1731064165, 514000000 ],
      value: 400
    }
  ]
}

This output displays the http.server.active_requests metric, which reached a value of 400 during the load test. This indicates that, at its peak, the server was concurrently handling 400 requests. This will eventually go down to 0 when the command exits.

Step 6 — Creating a Guage metric

A Gauge metric in OpenTelemetry is used to capture measurements at a specific point in time. Unlike counters, which accumulate values over time, gauges reflect the current state of a metric. This is ideal for tracking values like memory usage, CPU utilization, or temperature, which fluctuate continuously.

In this step, you'll create a Gauge metric to monitor the memory usage of your Node.js process. You'll use the ObservableGauge instrument, as the memory measurement isn't directly tied to a specific event but needs to be observed periodically.

Here's the code to set up the gauge:

const memoryUsageObservableGuage = meter.createObservableGauge(
    "system.memory.heap",
    {
        description: "Memory usage of the allocated heap objects.",
        unit: "By",
    },
);
memoryUsageObservableGuage.addCallback((result) => {
    result.observe(process.memoryUsage().heapUsed);
});

const fastifyApp = Fastify({
    logger: true,
});

. . .

This code defines an ObservableGauge named system.memory.heap to track heap memory usage. The addCallback function provides the logic for observing the metric. Inside the callback, process.memoryUsage().heapUsed retrieves the current heap memory usage, and result.observe() reports this value to OpenTelemetry.

Since the metrics are configured to be collected every 3 seconds (as defined in otel.js), this callback function, and thus the memory measurement, will also execute every 3 seconds.

You'll then see output like this in your console:

{
  descriptor: {
    name: 'system.memory.heap',
    type: 'OBSERVABLE_GAUGE',
    description: 'Memory usage of the allocated heap objects.',
    unit: 'By',
    valueType: 1,
    advice: {}
  },
  dataPointType: 2,
  dataPoints: [
    {
      attributes: {},
      startTime: [ 1731077051, 834000000 ],
      endTime: [ 1731077051, 834000000 ],
      value: 14233384
    }
  ]
}

This output shows the system.memory.heap gauge reporting a value of 14233384 bytes, which represents the heap memory used at that specific moment. You'll notice that the startTime and endTime are identical because gauge measurements represent a snapshot in time.

Step 7 — Creating a Histogram metric

Histograms are a powerful tool for understanding the distribution of values in your application. They group measurements into buckets, allowing you to see how often values fall within certain ranges. This is particularly useful for metrics like the duration of operations, where you might want to know the percentage of requests that take longer than a specific time.

In OpenTelemetry, creating a histogram is done using the meter.createHistogram() method:

import "./otel.js";
import { PerformanceObserver, performance } from "node:perf_hooks";
import { metrics } from "@opentelemetry/api";
import Fastify from "fastify";

. . .
const requestDurHistogram = meter.createHistogram(
    "http.client.request.duration",
    {
        description: "The duration of an outgoing HTTP request.",
        unit: "s",
        advice: {
            explicitBucketBoundaries: [
                0.005, 0.01, 0.025, 0.05, 0.075, 0.1, 0.25, 0.5, 0.75, 1, 2.5, 5, 7.5, 10,
            ],
        },
    },
);

const fastifyApp = Fastify({
    logger: true,
});

const observer = new PerformanceObserver((list) => {
    for (const entry of list.getEntries()) {
        if (entry.initiatorType === "fetch") {
            requestDurHistogram.record(entry.duration / 1000, {
                url: entry.name,
            });
        }
    }

    performance.clearResourceTimings();
});

observer.observe({ entryTypes: ["resource"] });

fastifyApp.get("/", async (req, reply) => {
    httpRequestCounter.add(1);
    activeRequestUpDownCounter.add(1);
    await new Promise((resolve) => setTimeout(resolve, 5000));
    reply.send("Hello World!");
    activeRequestUpDownCounter.add(-1);
});

fastifyApp.get("/posts", async (_request, reply) => {
    const response = await fetch("https://jsonplaceholder.typicode.com/posts");
    reply.send(await response.json());
});

This code defines a histogram named http.client.request.duration to measure the time taken for outgoing HTTP requests. It also configures explicit bucket boundaries, allowing you to categorize request durations into specific ranges.

To capture the duration of HTTP requests made using the fetch API, a PerformanceObserver() is used. This observer listens for resource entries, which include network requests. When a fetch request completes, the observer records the request duration in the histogram along with the URL of the request.

Now, when you make a request to the /posts endpoint, which fetches data from an external API, the observer will capture the request duration and record it in the histogram:

curl http://localhost:8000/posts

This will generate output similar to the following:

{
  descriptor: {
    name: 'http.client.request.duration',
    type: 'HISTOGRAM',
    description: 'The duration of an HTTP request.',
    unit: 's',
    valueType: 1,
    advice: {
      explicitBucketBoundaries: [
        0.005, 0.01, 0.025, 0.05,
        0.075,  0.1,  0.25,  0.5,
         0.75,    1,   2.5,    5,
          7.5,   10
      ]
    }
  },
  dataPointType: 0,
  dataPoints: [
    {
      attributes: { url: 'https://jsonplaceholder.typicode.com/posts' },
      startTime: [ 1731096474, 842000000 ],
      endTime: [ 1731096477, 526000000 ],
      value: {
        min: 1.0245768009999991,
        max: 1.0245768009999991,
        sum: 1.0245768009999991,
        buckets: {
          boundaries: [
            0.005, 0.01, 0.025, 0.05,
            0.075,  0.1,  0.25,  0.5,
             0.75,    1,   2.5,    5,
              7.5,   10
          ],
          counts: [
            0, 0, 0, 0, 0, 0,
            0, 0, 0, 0, 1, 0,
            0, 0, 0
          ]
        },
        count: 1
      }
    }
  ]
}

This output shows the http.client.request.duration histogram capturing the duration of the request to https://jsonplaceholder.typicode.com/posts. The value field provides details about the distribution:

• min: The minimum observed duration.
• max: The maximum observed duration.
• sum: The total duration of all observed requests.
• buckets: The number of requests falling into each predefined bucket.
• count: The total number of requests observed.

This histogram data gives you insights into the distribution of request durations, helping you identify performance bottlenecks and optimize your application.

Step 8 — Sending metrics data to an OpenTelemetry backend

After configuring your application to gather metrics, the next crucial step is to send this valuable data to an OpenTelemetry backend. This backend will enable you to analyze, visualize, and gain insights from your metrics. A standard and efficient method is to utilize the OpenTelemetry Collector.

This component acts as an intermediary, receiving metrics from your application, processing them, and then forwarding them to the backend of your choice. This approach provides flexibility, as the Collector can seamlessly integrate with a wide range of backend systems. In this step, we'll send the collected metrics to Better Stack.

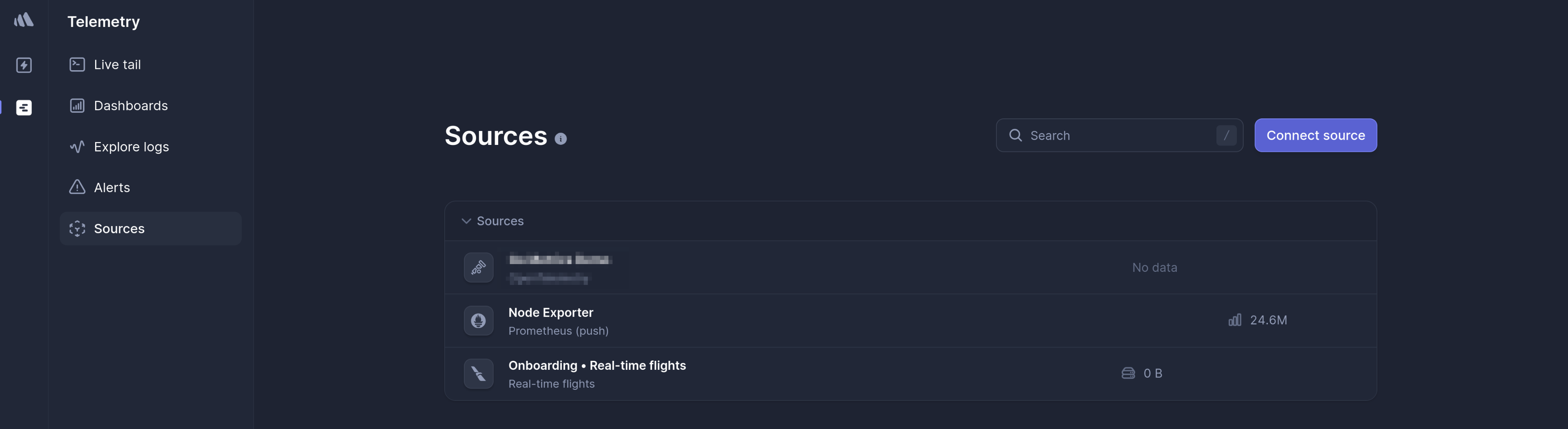

Begin by creating a free Better Stack account. Once you're logged in, navigate to the Telemetry dashboard. In the Sources menu, select Connect source:

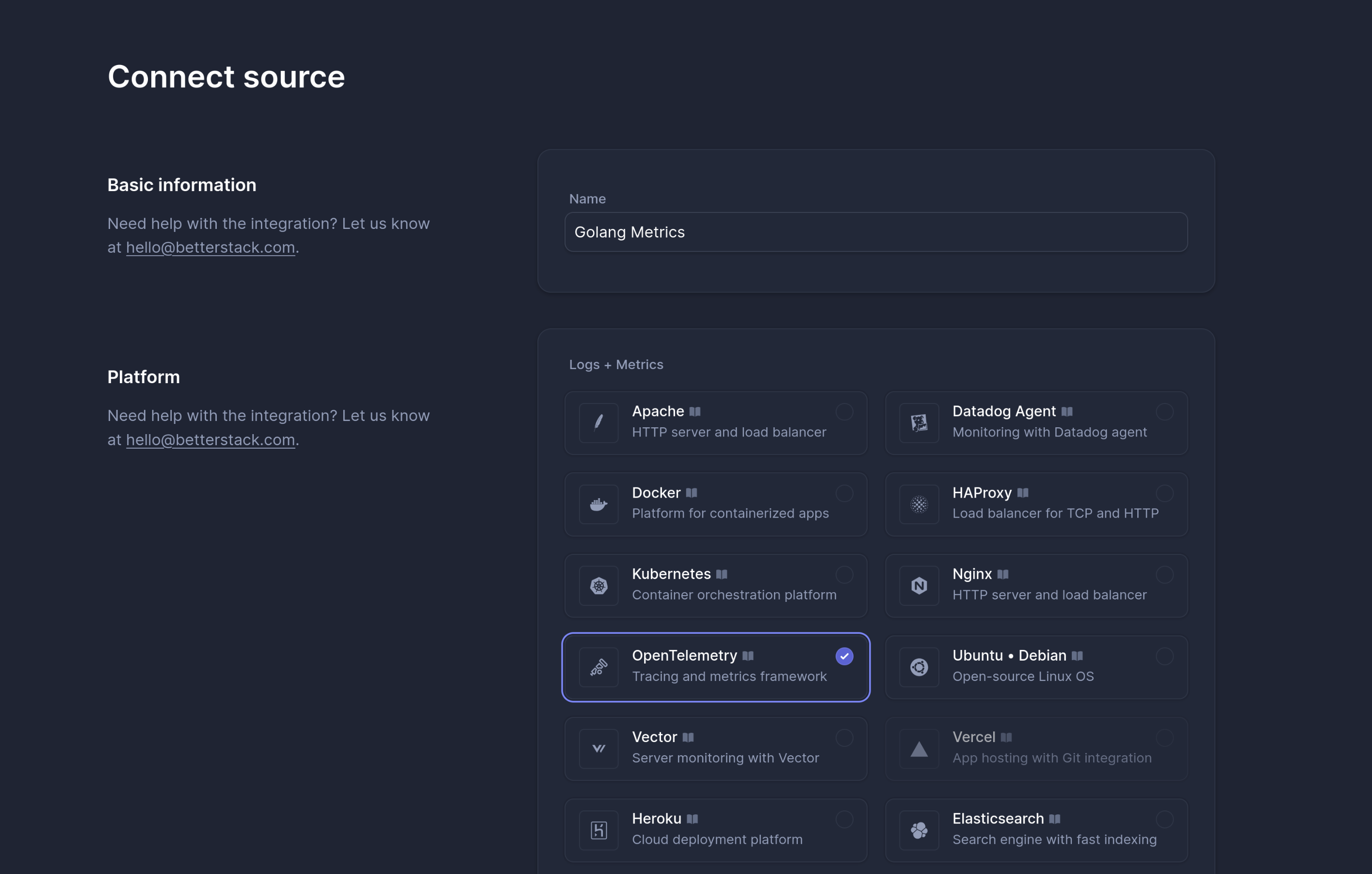

Give your source a descriptive name like Node.js Metrics Demo and choose OpenTelemetry as the platform. Then, click Create source:

This will take you to a page displaying details about your newly created source. You'll need the source token from this page to configure the OpenTelemetry Collector:

If you scroll down, you'll see a message indicating that Better Stack is waiting to receive metrics:

Now, switch back to your code editor and open the otelcol.yaml file. Locate the <source_token> placeholder and replace it with the token you copied from Better Stack:

receivers:
  otlp:
    protocols:
      http:
        endpoint: otel-metrics-demo-collector:4318

processors:
  attributes/betterstack:
    actions:
      - key: better_stack_source_token
        value: <source_token>
        action: insert
  batch:

exporters:
  prometheusremotewrite/betterstack:
    endpoint: https://in-otel.logs.betterstack.com/metrics

service:
  pipelines:
    metrics:
      receivers: [otlp]
      processors: [batch, attributes/betterstack]
      exporters: [prometheusremotewrite/betterstack]

Next, install the @opentelemetry/exporter-metrics-otlp-http package, which allows your Node.js application to send metrics via HTTP:

npm install --save @opentelemetry/exporter-metrics-otlp-http

After the installation, modify your otel.js file to use this exporter:

import { OTLPMetricExporter } from "@opentelemetry/exporter-metrics-otlp-http";

. . .

const metricReader = new PeriodicExportingMetricReader({
    exporter: new OTLPMetricExporter(),

    // Default is 60000ms (60 seconds). Set to 3 seconds for demonstrative purposes only.
    exportIntervalMillis: 3000,
});

. . .

This configuration tells your application to send metrics to the HTTP endpoint specified by the OTEL_EXPORTER_OTLP_ENDPOINT environment variable, which is set to http://nodejs-metrics-demo-collector:4318.

To apply these changes, restart your Docker Compose services:

docker compose restart

Once the containers have restarted, trigger some activity in your application to generate metrics. You can simply send a request to the server's root endpoint:

curl http://localhost:8000

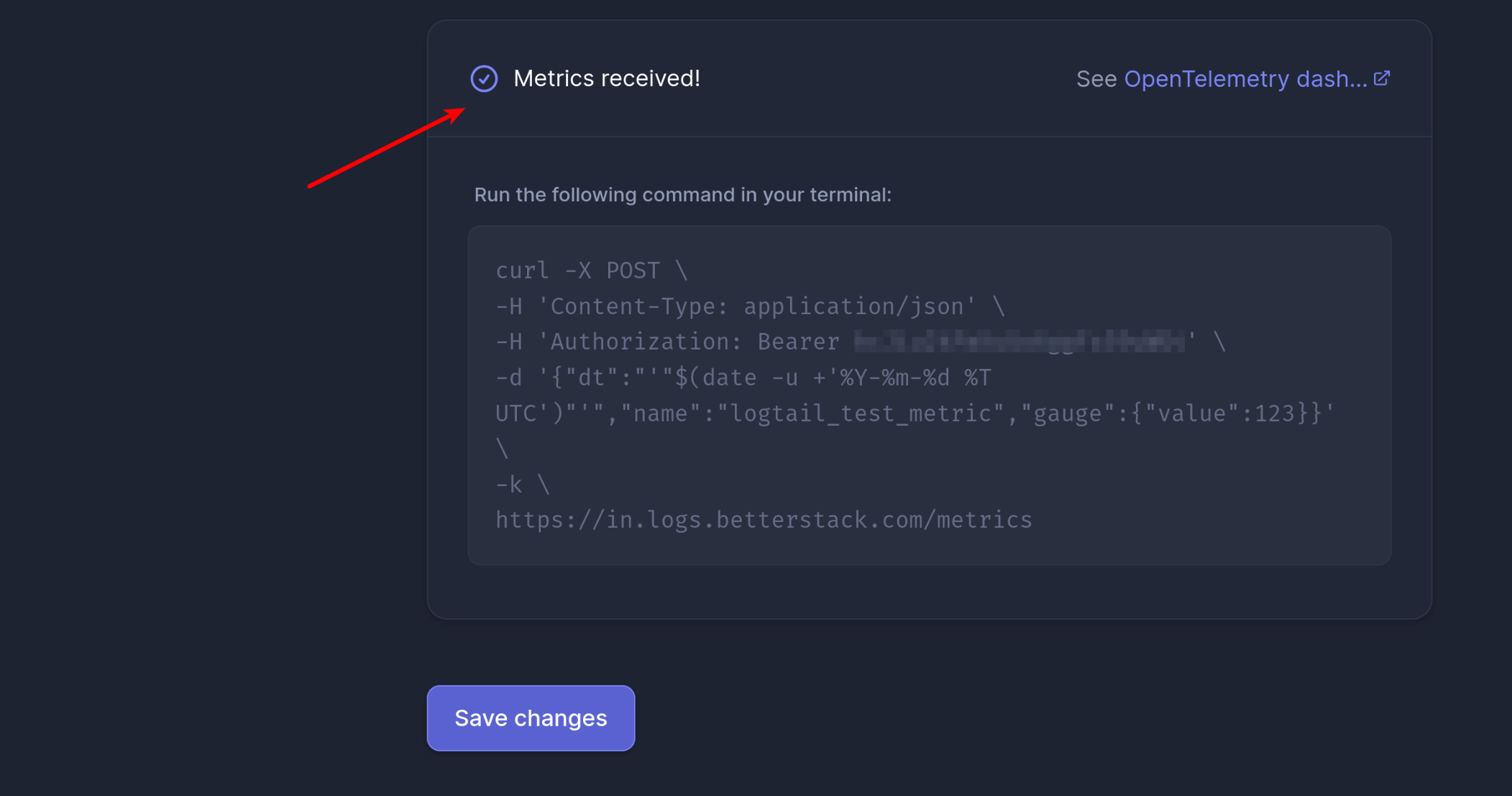

Return to your Better Stack dashboard and you should see a "Metrics received" message, confirming that your application's metrics are now being successfully ingested by Better Stack.

You can now explore Better Stack's built-in OpenTelemetry dashboards to visualize and analyze your metrics. We'll delve into more advanced visualization and analysis techniques in a future tutorial.

Final thoughts

This tutorial provided a comprehensive overview of implementing OpenTelemetry metrics in your Node.js applications. We covered the key aspects of setting up the OpenTelemetry SDK, instrumenting your application to capture valuable metrics, and efficiently managing the collected data. By routing your metrics through the OpenTelemetry Collector, you gain the flexibility to send them to various backend systems for analysis and visualization.

OpenTelemetry empowers you to build more resilient and performant applications by providing a unified framework for distributed tracing, metrics, and logs. This observability enables you to gain deep insights into your application's behavior and make data-driven decisions to optimize its performance and enhance user experience.

As you continue your OpenTelemetry journey, consider exploring distributed tracing to understand the flow of requests within your application or configuring custom processors in the OpenTelemetry Collector to tailor data processing to your specific needs.

Happy monitoring!

Article by

Ayooluwa Isaiah

Ayo is the Head of Content at Better Stack. His passion is simplifying and communicating complex technical ideas effectively. His work was featured on several esteemed publications including LWN.net, Digital Ocean, and CSS-Tricks. When he’s not writing or coding, he loves to travel, bike, and play tennis.

Got an article suggestion? Let us know

Next article

Practical Logging for PHP Applications with OpenTelemetry

Learn how to use the OpenTelemetry framework to instrument your PHP applications with code that gathers log data for observability pipelines

→

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
