Python Monitoring with Prometheus (Beginner's Guide)

This article provides a detailed guide on integrating Prometheus metrics into your Python application.

It explores key concepts, including instrumenting your application with various metric types, monitoring HTTP request activity, and exposing metrics for Prometheus to scrape.

The complete source code for this tutorial is available in this GitHub repository.

Let's get started!

Prerequisites

• Prior experience with Python and Flask, along with a recent version of Python installed.
• Familiarity with Docker and Docker Compose.
• Basic understanding of how Prometheus works.

Step 1 — Setting up the demo project

To demonstrate Prometheus instrumentation in Python applications, let's set up a simple "Hello World" Flask application along with the Prometheus server.

First, clone the repository to your local machine and navigate into the project directory:

git clone https://github.com/betterstack-community/prometheus-python

cd prometheus-python

Here's the Flask application you'll be instrumenting:

from flask import Flask
from dotenv import load_dotenv
import os

load_dotenv()

app = Flask(__name__)

@app.route('/metrics')
def metrics():
    return '', 200

@app.route('/')
def hello():
    return 'Hello world!'

if __name__ == '__main__':
    port = int(os.getenv('PORT', '8000'))
    print(f'Starting HTTP server on port {port}')
    try:
        app.run(host='0.0.0.0', port=port, debug=True)
    except Exception as e:
        print(f'Server failed to start: {e}')
        exit(1)

This app exposes two endpoints: / returns a simple with "Hello world!" message, and /metrics endpoint that will eventually expose the instrumented metrics.

This project also includes a compose.yaml file, which defines two services:

services:
  app:
    build:
      context: .
    environment:
      PORT: ${PORT}
    env_file:
      - ./.env
    ports:
      - 8000:8000
    volumes:
      - .:/app

  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
      - prometheus_data:/prometheus
    command:
      - --config.file=/etc/prometheus/prometheus.yml
      - --storage.tsdb.path=/prometheus
      - --web.console.libraries=/etc/prometheus/console_libraries
      - --web.console.templates=/etc/prometheus/consoles
      - --web.enable-lifecycle
    expose:
      - 9090
    ports:
      - 9090:9090

volumes:
  prometheus_data:

The app service is the Flask application running on port 8000, while prometheus configures a Prometheus server to scrape the Flask app via the prometheus.yml file:

global:
  scrape_interval: 10s

scrape_configs:
  - job_name: flask-app
    static_configs:
      - targets:
          - app:8000

Before starting the services, rename .env.example to .env. This file contains the application's PORT setting:

PORT=8000

Rename it with:

mv .env.example .env

Then launch both services in detached mode with:

docker compose up -d

You should see output similar to this:

[+] Running 3/3
 ✔ Network prometheus-python_default  Created                    0.8s
 ✔ Container prometheus               Started                    1.3s
 ✔ Container app                      Started                    1.3s

To confirm that the Flask application is running, send a request to the root endpoint:

curl http://localhost:8000

This should return:

Hello world

To verify that Prometheus is able to access the exposed /metrics endpoint, visit http://localhost:9090/targets in your browser:

With everything up and running, you're ready to integrate Prometheus in your Python application in the next step.

Step 2 — Installing the Prometheus Client

Before instrumenting your Flask application with Prometheus, you need to install the official Prometheus client for Python applications.

Open your requirements.txt file and include the latest version of the prometheus_client package:

Flask==3.1.0
python-dotenv==1.0.1
prometheus_client

Then rebuild the app service by running the command below to ensure that the prometheus_client dependency is installed:

docker compose up -d --build app

Once the app service restarts, you may integrate Prometheus into your application by modifying main.py as follows:

from flask import Flask
from prometheus_client import generate_latest, CONTENT_TYPE_LATEST
from dotenv import load_dotenv
import os

load_dotenv()

app = Flask(__name__)

@app.route('/metrics')
def metrics():
    """ Exposes application metrics in a Prometheus-compatible format. """
    return generate_latest(), 200, {'Content-Type': CONTENT_TYPE_LATEST}

. . .

This modification introduces the prometheus_client package and its generate_latest() function, which collects and returns metrics in a format that Prometheus can scrape.

Once you've saved the file, visit http://localhost:8000/metrics in your browser or use curl to see the default Prometheus metrics:

curl http://localhost:8000/metrics

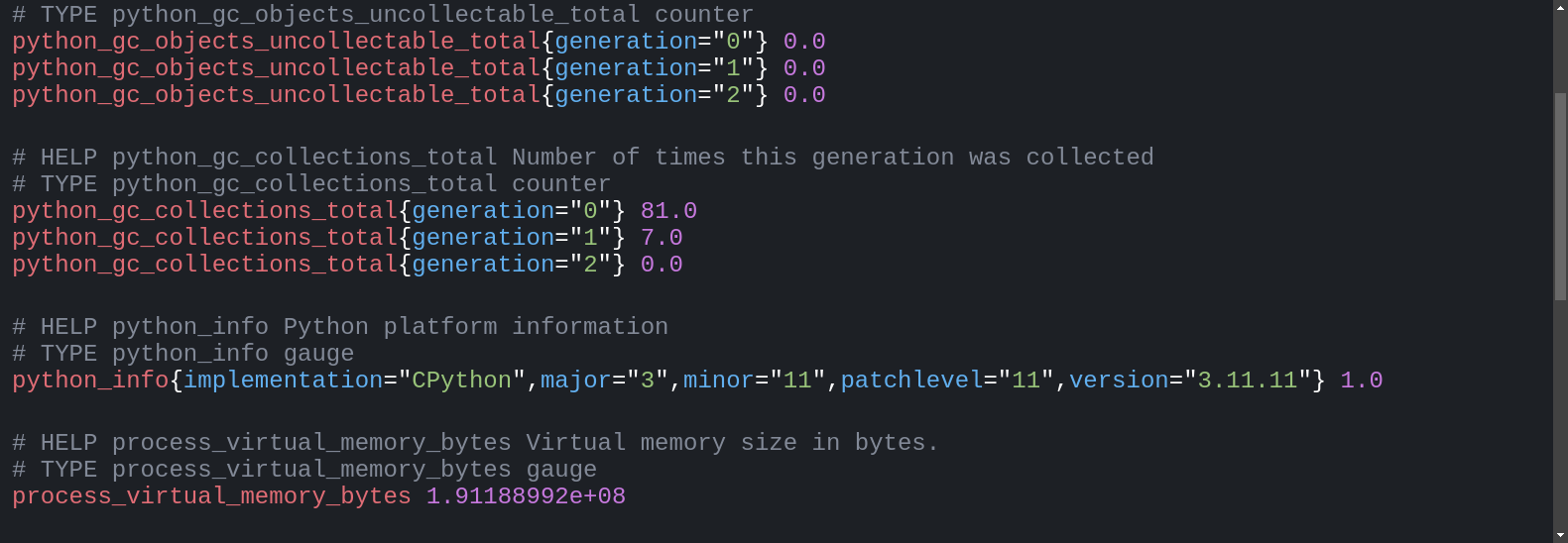

By default, Prometheus uses a global registry that automatically includes standard Python runtime and process-level metrics:

# HELP python_gc_objects_collected_total Objects collected during gc
# TYPE python_gc_objects_collected_total counter
python_gc_objects_collected_totalgeneration0 492.0
python_gc_objects_collected_totalgeneration1 325.0
python_gc_objects_collected_totalgeneration2 0.0
# HELP python_gc_objects_uncollectable_total Uncollectable objects found during GC
# TYPE python_gc_objects_uncollectable_total counter
python_gc_objects_uncollectable_totalgeneration0 0.0
python_gc_objects_uncollectable_totalgeneration1 0.0
python_gc_objects_uncollectable_totalgeneration2 0.0
. . .

If you want to disable these and expose only specific metrics, you need to create a custom registry:

from flask import Flask
from prometheus_client import CollectorRegistry, generate_latest, CONTENT_TYPE_LATEST
from dotenv import load_dotenv
import os

load_dotenv()

app = Flask(__name__)

# Create a custom registry
registry = CollectorRegistry()

@app.route('/metrics')
def metrics():
    """ Exposes only explicitly registered metrics. """
    return generate_latest(registry), 200, {'Content-Type': CONTENT_TYPE_LATEST}

. . .

Since no custom metrics are registered yet, the /metrics endpoint will return an empty response now. If you'd like to retain the default metrics, you can import and register all default collectors as follows:

from flask import Flask
from prometheus_client import (
    CollectorRegistry,
    generate_latest,
    CONTENT_TYPE_LATEST,
    platform_collector,
    process_collector,
    gc_collector,
)
from dotenv import load_dotenv
import os

load_dotenv()

app = Flask(__name__)

registry = CollectorRegistry()

# Add default collectors to your registry
gc_collector.GCCollector(registry=registry)
platform_collector.PlatformCollector(registry=registry)
process_collector.ProcessCollector(registry=registry)

. . .

With these modifications, the default metrics will be exposed along with any custom metrics you register later on.

In the following sections, you will instrument the application with different metric types, including Counters, Gauges, Histograms, and Summaries.

Step 3 — Instrumenting a Counter metric

Let's start with a fundamental metric that tracks the total number of HTTP requests made to the server. Since this value always increases, it is best represented as a Counter.

Edit your main.py file to include counter instrumentation:

from flask import Flask, request
from prometheus_client import (
    CollectorRegistry,
    generate_latest,
    CONTENT_TYPE_LATEST,
    Counter,
)
from dotenv import load_dotenv
import os

load_dotenv()

app = Flask(__name__)

# Create a custom registry
registry = CollectorRegistry()

# Create a counter metric
http_requests_total = Counter(
    "http_requests_total",
    "Total number of HTTP requests received",
    ["status", "path", "method"],
    registry=registry,
)


@app.after_request
def after_request(response):
    """Increment counter after each request"""
    http_requests_total.labels(
        status=str(response.status_code), path=request.path, method=request.method
    ).inc()
    return response

. . .

This implementation creates a Counter metric named http_requests_total with labels for status code, path, and HTTP method. It uses Flask's after_request() hook to automatically count all HTTP requests by incrementing the counter after each request is processed and capturing the actual response status.

If you refresh http://localhost:8000/metrics several times, you'll see output like:

# HELP http_requests_total Total number of HTTP requests received
# TYPE http_requests_total counter
http_requests_total{method="GET",path="/metrics",status="200"} 2.0
# HELP http_requests_created Total number of HTTP requests received
# TYPE http_requests_created gauge
http_requests_created{method="GET",path="/metrics",status="200"} 1.7397329609938126e+09

For each counter metric in your application, Prometheus Python client creates two metrics:

1. The actual counter (http_requests_total)
2. A creation timestamp gauge (http_requests_created)

If you want to disable this behavior, you can use the disable_created_metrics() function:

from flask import Flask, request
from prometheus_client import (
    CollectorRegistry,
    generate_latest,
    CONTENT_TYPE_LATEST,
    Counter,
    disable_created_metrics,
)
from dotenv import load_dotenv
import os

load_dotenv()

disable_created_metrics()

app = Flask(__name__)

registry = CollectorRegistry()

With this setup, you'll no longer see the _created metrics for all counters:

curl http://localhost:8000/metrics

# HELP http_requests_total Total number of HTTP requests received
# TYPE http_requests_total counter
http_requests_total{method="GET",path="/metrics",status="200"} 9.0
http_requests_total{method="GET",path="/",status="200"} 2.0

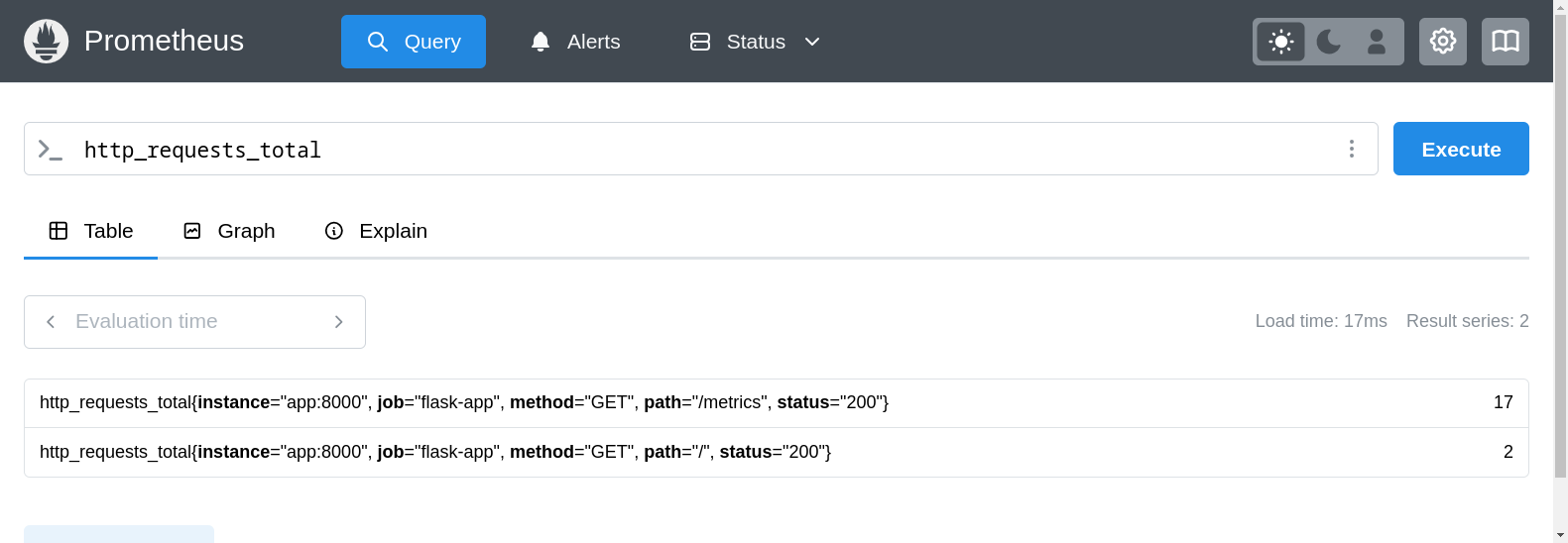

You can view your metrics in the Prometheus client by heading to http://localhost:9090. Then type http_requests_total into the query box and click Execute to see the raw values:

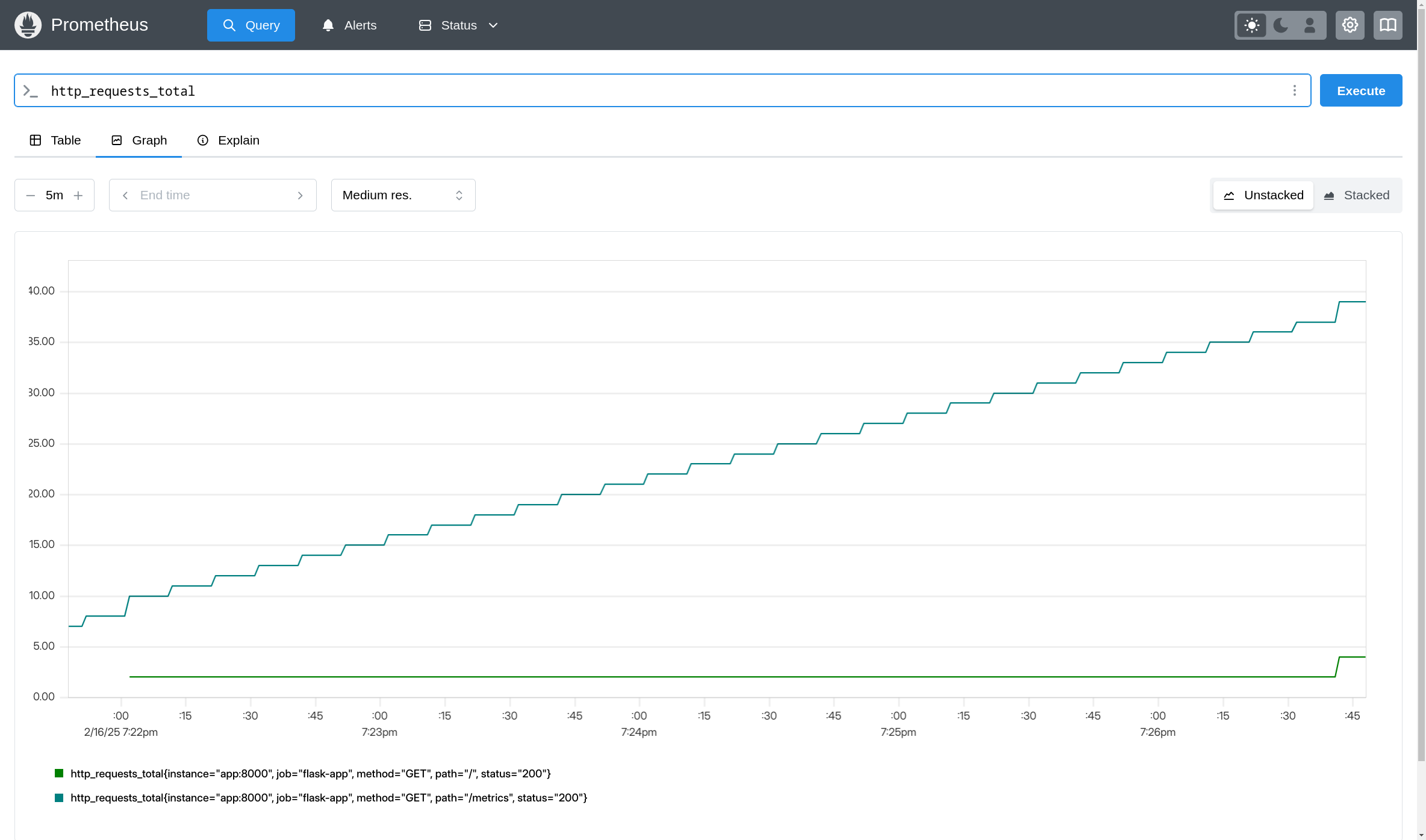

You can switch to the Graph tab to visualize the counter increasing over time:

In the next section, we'll explore how to instrument a Gauge metric!

Step 4 — Instrumenting a Gauge metric

A Gauge represents a value that can fluctuate up or down, making it ideal for tracking real-time values such as active connections, queue sizes, or memory usage.

In this section, we'll use a Prometheus Gauge to monitor the number of active requests being processed by the service.

Modify your main.py file to include the following:

from flask import Flask, request
from prometheus_client import (
    CollectorRegistry,
    generate_latest,
    CONTENT_TYPE_LATEST,
    Counter,
    Gauge,
    disable_created_metrics,
)
from dotenv import load_dotenv
import os

. . .

# Define a Gauge metric for tracking active HTTP requests
active_requests_gauge = Gauge(
    "http_active_requests",
    "Number of active connections to the service",
    registry=registry
)

@app.before_request
def before_request():
    """Track start of request processing"""
    active_requests_gauge.inc()

@app.after_request
def after_request(response):
    """Increment counter after each request"""
    http_requests_total.labels(
        status=str(response.status_code), path=request.path, method=request.method
    ).inc()
    active_requests_gauge.dec()
    return response


. . .

The active_requests_gauge metric is created using Gauge() to track the number of active HTTP requests at any given moment.

In the before_request() hook, the gauge is incremented when a new request starts processing. In after_request(), the gauge is decremented when the request is completed.

To observe the metric, you can add some random delay to the / route as follows:

. . .
import os
import time
import random

. . .

@app.route("/")
def hello():
    delay = random.uniform(1, 5)  # Random delay between 1 and 5 seconds
    time.sleep(delay)
    return "Hello world!"

. . .

Then use a load testing tool like wrk to generate requests to the / route:

wrk -t 10 -c 100 -d 1m --latency "http://localhost:8000"

Visiting the /metrics endpoint on your browser will show something like:

. . .
# HELP http_active_requests Number of active connections to the service
# TYPE http_active_requests gauge
http_active_requests 101.0

This indicates that there are currently 101 active requests being processed by your service.

You can also view the changing gauge values over time in Prometheus's Graph view at http://localhost:9090:

Tracking absolute values

If you need a Gauge that tracks absolute but fluctuating values, you can set the value directly instead of incrementing or decrementing it.

For example, to track the current memory usage of the Flask application, you can define a gauge and use it to record the current memory usage of the process like this:

. . .
import threading
import resource

. . .

# Define a Gauge metric for tracking memory usage
memory_usage_gauge = Gauge(
    "memory_usage_bytes",
    "Current memory usage of the service in bytes",
    ["hostname"],
    registry=registry,
)

def collect_memory_metrics():
    """Background thread to collect memory metrics"""
    while True:
        memory = resource.getrusage(resource.RUSAGE_SELF).ru_maxrss
        # Multiply by 1024 since maxrss is in KB on Unix
        memory_usage_gauge.labels(hostname="host1.domain.com").set(memory * 1024)
        time.sleep(1)


metrics_thread = threading.Thread(target=collect_memory_metrics, daemon=True)
metrics_thread.start()

. . .

The collect_memory_metrics() function runs in a background thread to continuously update the memory_usage_gauge metric every second. Here, set() is used instead of inc/dec to set absolute values.

Here's the output you'll see in your /metrics endpoint:

# HELP memory_usage_bytes Current memory usage of the service in bytes
# TYPE memory_usage_bytes gauge
memory_usage_bytes{hostname="host1.domain.com"} 3.4422784e+07

Next up, you'll instrument a Histogram metric to track HTTP request latency.

Step 5 — Instrumenting a Histogram metric

Histograms are useful for tracking the distribution of measurements, such as HTTP request durations. In Python, creating a Histogram metric is straightforward with the Histogram class from prometheus_client.

Modify your main.py file to include the following:

from flask import Flask, request
from prometheus_client import (
    CollectorRegistry,
    generate_latest,
    CONTENT_TYPE_LATEST,
    Counter,
    Gauge,
    Histogram,
    disable_created_metrics,
)

. . .

# Define a Histogram metric for request duration
latency_histogram = Histogram(
    "http_request_duration_seconds",
    "Duration of HTTP requests",
    ["status", "path", "method"],
    registry=registry,
)

@app.before_request
def before_request():
    """Track start of request processing"""
    active_requests_gauge.inc()
    request.start_time = time.time()


@app.after_request
def after_request(response):
    """Increment counter after each request"""
    http_requests_total.labels(
        status=str(response.status_code), path=request.path, method=request.method
    ).inc()
    active_requests_gauge.dec()
    duration = time.time() - request.start_time
    latency_histogram.labels(
        status=str(response.status_code), path=request.path, method=request.method
    ).observe(duration)
    return response

. . .

The latency_histogram metric is created to track the duration of each request to the server. With such a metric, you can:

• Track response time distributions,
• Calculate percentiles (like p95, p99),
• Identify slow endpoints,
• Monitor performance trends over time.

Before a request is processed, the middleware stores the request start time. After the request completes, the middleware calculates the total duration and records it in the histogram.

After saving the file and refreshing the application a few times, visiting http://localhost:8000/metrics will display the recorded histogram data:

# HELP http_request_duration_seconds Duration of HTTP requests
# TYPE http_request_duration_seconds histogram
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.005"} 0
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.01"} 0
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.025"} 4
. . .
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="+Inf"} 154
http_request_duration_seconds_sum{method="GET",path="/",status="200"} 68.487667757
http_request_duration_seconds_count{method="GET",path="/",status="200"} 154

Let's understand what this output means:

• Each _bucket line represents the number of requests that took less than or equal to a specific duration. For example, le="0.025"} 4 means four requests completed within 25 milliseconds.
• The _sum value is the total of all observed durations.
• The _count value is the total number of observations.

The histogram uses these default buckets (in seconds):

[0.005, 0.01, 0.025, 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 10, +Inf]

If these buckets don't suit your needs, you can specify custom ones:

latency_histogram = Histogram(
    'http_request_duration_seconds',
    'Duration of HTTP requests',
    ['status', 'path', 'method'],
    buckets=[0.1, 0.5, 1, 2.5, 5, 10],  # Custom buckets in seconds
    registry=registry
)

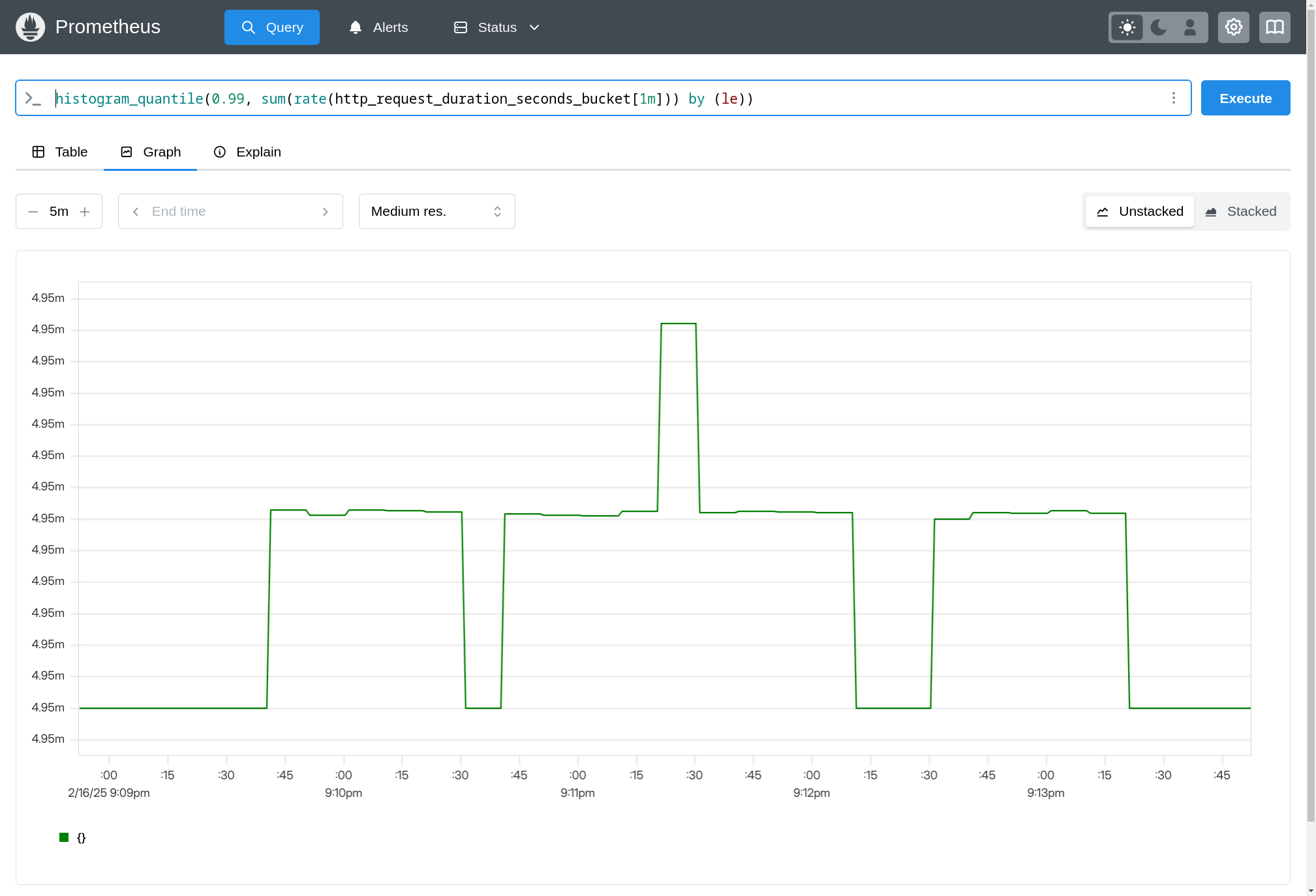

The real power of histograms comes when analyzing them in Prometheus. For example, to calculate the 99th percentile latency over a 1-minute window you can use:

histogram_quantile(0.99, sum(rate(http_request_duration_seconds_bucket[1m])) by (le))

This query will show you the response time that 99% of requests fall under, which is more useful than averages for understanding real user experience.

With the histogram metric successfully instrumented, the next step is to explore how to track additional insights using a Summary metric.

Step 6 — Instrumenting a Summary metric

A Summary metric in Prometheus is useful for capturing pre-aggregated quantiles, such as the median, 95th percentile, or 99th percentile, while also providing overall counts and sums for observed values.

Unlike a histogram, which allows aggregation across instances on the Prometheus server, a Summary metric calculates quantiles directly on the client side. This makes it valuable when quantile calculations need to be performed independently per instance without relying on Prometheus for aggregation.

To set up a Summary metric for monitoring request latency, update your main.py file as follows:

from flask import Flask, request
from prometheus_client import (
    CollectorRegistry,
    generate_latest,
    CONTENT_TYPE_LATEST,
    Counter,
    Gauge,
    Histogram,
    Summary,
    disable_created_metrics,
)
from dotenv import load_dotenv
import os
import time
import random
import requests

. . .

posts_latency_summary = Summary(
    "post_request_duration_seconds",
    "Duration of requests to https://jsonplaceholder.typicode.com/posts",
    ["method"],
    registry=registry,
)


. . .

@app.route("/posts")
def get_posts():
    start_time = time.time()

    try:
        response = requests.get("https://jsonplaceholder.typicode.com/posts")
        response.raise_for_status()
    except requests.RequestException as e:
        return str(e), 500
    finally:
        # Record the request duration in the summary
        duration = time.time() - start_time
        posts_latency_summary.labels(method="GET").observe(duration)

    return response.json()
. . .

The posts_latency_summary metric tracks the duration of requests to an external API. In the /posts endpoint, the start time of the request is recorded before sending a GET request to the API.

Once the request completes, the duration is calculated and recorded in the Summary metric using posts_latency_summary.observe(duration).

After saving the your changes, add the requests package to your requirements.txt file as follows:

Flask==3.1.0
python-dotenv==1.0.1
prometheus_client
requests

Then rebuild the app service with:

docker compose up -d --build app

Once the service is up, send requests to the /posts endpoint using a tool like wrk to generate latency data:

wrk -t 1 -c 5 -d 10s --latency "http://localhost:8000/posts"

The metrics endpoint will show output like:

# HELP post_request_duration_seconds Duration of requests to https://jsonplaceholder.typicode.com/posts
# TYPE post_request_duration_seconds summary
post_request_duration_seconds_count{method="GET"} 35.0

Unfortunately, the prometheus_client package does not currently support quantiles which makes this output useless. To fix this, you may use the prometheus-summary package instead. It is fully compatible with native client Summary class and adds support of configurable quantiles:

Flask==3.1.0
python-dotenv==1.0.1
prometheus_client
requests
prometheus-summary

from prometheus_summary import Summary # Use this Summary class instead
. . .

Once you rebuild the app service and send some load to the /posts endpoint once again, you will now see the post_request_duration_seconds metric with the following precomputed quantiles:

# HELP post_request_duration_seconds Duration of requests to https://jsonplaceholder.typicode.com/posts
# TYPE post_request_duration_seconds summary
post_request_duration_seconds{method="GET",quantile="0.5"} 0.3418126106262207
post_request_duration_seconds{method="GET",quantile="0.9"} 0.35525965690612793
post_request_duration_seconds{method="GET",quantile="0.99"} 0.49892544746398926
post_request_duration_seconds_count{method="GET"} 25.0
post_request_duration_seconds_sum{method="GET"} 8.648272037506104

The median request time is about 341 milliseconds (0.341 seconds), 90% of requests complete within 355 milliseconds (0.355 seconds), and 99% complete within 498 milliseconds (0.498 seconds).

If you'd like to customize the quantiles, you can provide the invarients argument with quantile-precision pairs. The default is:

((0.50, 0.05), (0.90, 0.01), (0.99, 0.001))

posts_latency_summary = Summary(
    "post_request_duration_seconds",
    "Duration of requests to https://jsonplaceholder.typicode.com/posts",
    ["method"],
    invariants=((0.50, 0.05), (0.75, 0.02), (0.90, 0.01), (0.95, 0.005), (0.99, 0.001)),
    registry=registry,
)

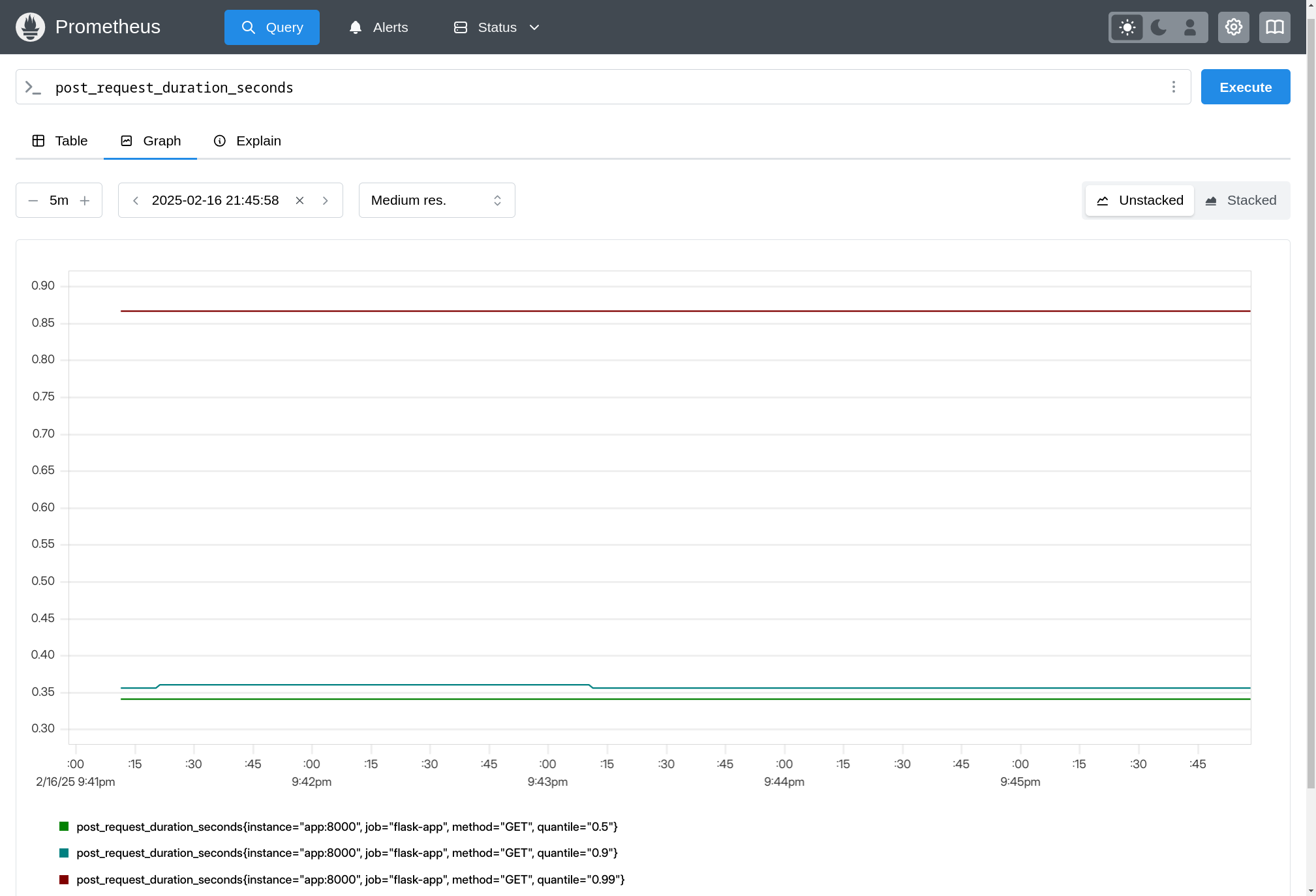

In the Prometheus web interface, entering the metric name will display recorded latency values:

Final thoughts

In this tutorial, we explored setting up and using Prometheus metrics in a Python application.

We covered how to define and register different types of metrics - counters for tracking cumulative values, gauges for fluctuating measurements, histograms for understanding value distributions, and summaries for calculating client-side quantiles.

To build on this foundation, you might want to:

• Set up Prometheus Alertmanager to create alerts based on your metrics.
• Connect your metrics to Grafana or Better Stack for powerful visualization and dashboarding.
• Explore PromQL to write more sophisticated queries for analysis.

Don't forget to see the final code used in this tutorial on GitHub.

Thanks for reading, and happy monitoring!

Got an article suggestion? Let us know

Next article

PHP and Laravel Monitoring with Prometheus

→

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
