A Practical Guide to Prometheus Metric Types

Ayooluwa Isaiah
Updated on November 28, 2024

Prometheus metrics are numerical representations of the state or behavior of a system that are collected over time to enable monitoring and alerting.

These metrics are stored as time-series data, meaning that each metric is associated with a timestamp and can be queried to analyze changes and trends.

Metrics are typically exposed by applications on HTTP endpoints (typically /metrics), and scraped periodically by Prometheus. This pull-based model ensures that Prometheus has control over data collection frequency and consistency.

Prometheus metric types

Prometheus offers four core metric types to capture diverse system behaviors:

  1. Counters for tracking ever-increasing values, like the total number of exceptions thrown.
  2. Gauges for measuring fluctuating values, such as current CPU usage.
  3. Histograms for observing the distribution of values within predefined buckets.
  4. Summaries for calculating quantiles (percentiles) of observed values.

Each metric can be enriched with labels, which are key-value pairs that allow you to distinguish metrics by attributes like HTTP method, response code, or server region.

By pairing metrics with visualization and alerting tools, you can quickly see how well your systems are functioning at a glance, and get alerted when an issue arises.

Screenshot of a Better Stack Node Exporter Dashboard

In this article, we'll explore the significance of Prometheus metrics in detail and discuss how use them to monitor, visualize, and alert on the performance of your services and infrastructure.

Let's dive right in.

Understanding the Prometheus data model

Each time series in Prometheus has a unique fingerprint composed of:

  • Name: A descriptive name like http_requests_total or cpu_usage_seconds_total (see naming guidelines here).
  • Labels: Key-value pairs that provide context and allow you to filter and aggregate data across multiple dimensions.
  • Timestamp: The time at which the data point was collected.
  • Value: The actual numerical value of the metric at that timestamp.

To use metrics in Prometheus, you need to instrument your code to record a value whenever the event you're tracking occurs, and use PromQL to analyze, visualize, and set alerts on your collected metrics.

Let's go right ahead and explore each metric type in detail with practical use cases to help you understand their applications.

The Counter

In Prometheus, a Counter represents a single, cumulative value that can only monotonically increase over time, except when it resets to zero.

You can think of a counter metric like a running tally that never decreases. It tracks the total count of something, such as the number of HTTP requests received by a service.

Each new request increases the counter, providing a cumulative record of all requests ever received, and this ever-growing count helps you understand the overall volume of activity over time.

Let's illustrate how it works with a JavaScript example:

server.js
import express from "express";
import promClient from "prom-client";

const app = express();

// 1. Create a counter to track the total number of HTTP requests
const httpRequestsCounter = new promClient.Counter({
    name: "http_requests_total",
    help: "Total number of HTTP requests received",
    labelNames: ["method", "route", "status"], // Labels add dimensions for querying the metric
});

// 2. Middleware to instrument HTTP requests
app.use((req, res, next) => {
    // Increment the counter for each request
    res.on("finish", () => {
        httpRequestsCounter
            .labels(req.method, req.route ? req.route.path : req.path, res.statusCode)
            .inc();
    });
    next();
});

The promClient.Counter() method defines the http_requests_total metric for tracking the total number of incoming HTTP requests. A description is provided via the help property, and the labelNames property allows the metric to be grouped by dimensions for later querying.

To increment the counter each time a request is received to any route, it is placed within a middleware function that is executed on each request, associated with the appropriate label values, and incremented with the inc() method.

This produces a http_requests_total metric that looks like this when you visit your metrics endpoint:


# HELP http_requests_total Total number of HTTP requests received
# TYPE http_requests_total counter
http_requests_total{method="GET",route="/metrics",status="200"} 3
http_requests_total{method="GET",route="/docs",status="404"} 1
http_requests_total{method="POST",route="/user/create",status="200"} 2
http_requests_total{method="GET",route="/",status="200"} 4

You can also increment counters by more than 1, which is useful for counting aggregated values, or if the rate of change is more than 1:


counter.inc(5) // defaults to 1 if unspecified

Once a counter metric is being scraped by Prometheus, you can enter its name into the expression input field and execute the query:

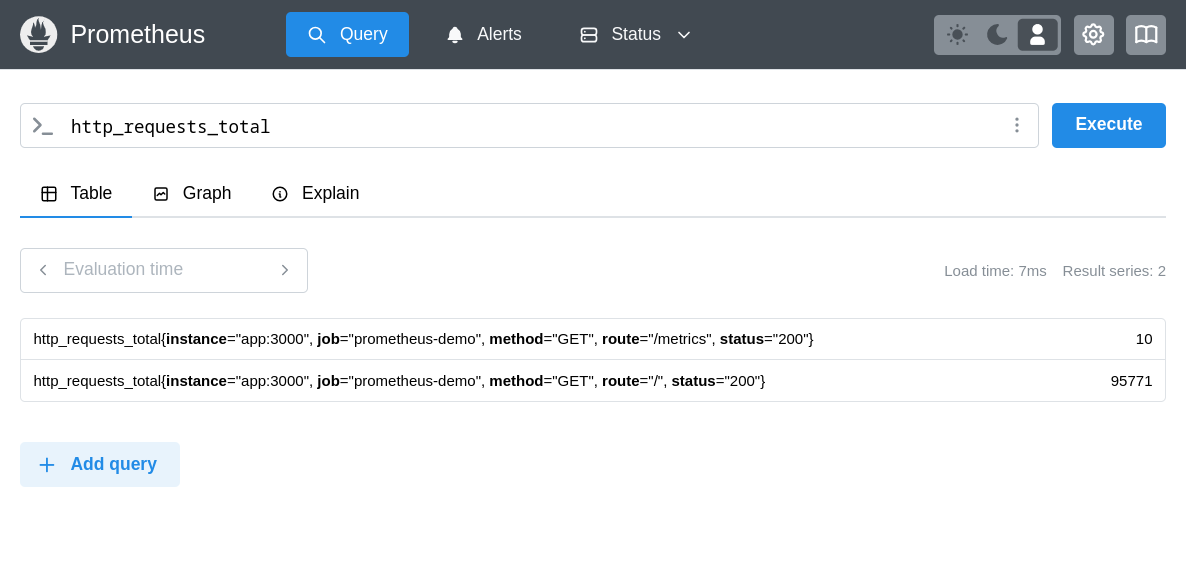

Screenshot of the http_requests_total metric in Prometheus

If you switch to the graph tab, you'll notice that the counter continues to increase. It will always continue this way as long as the server is processing HTTP requests.

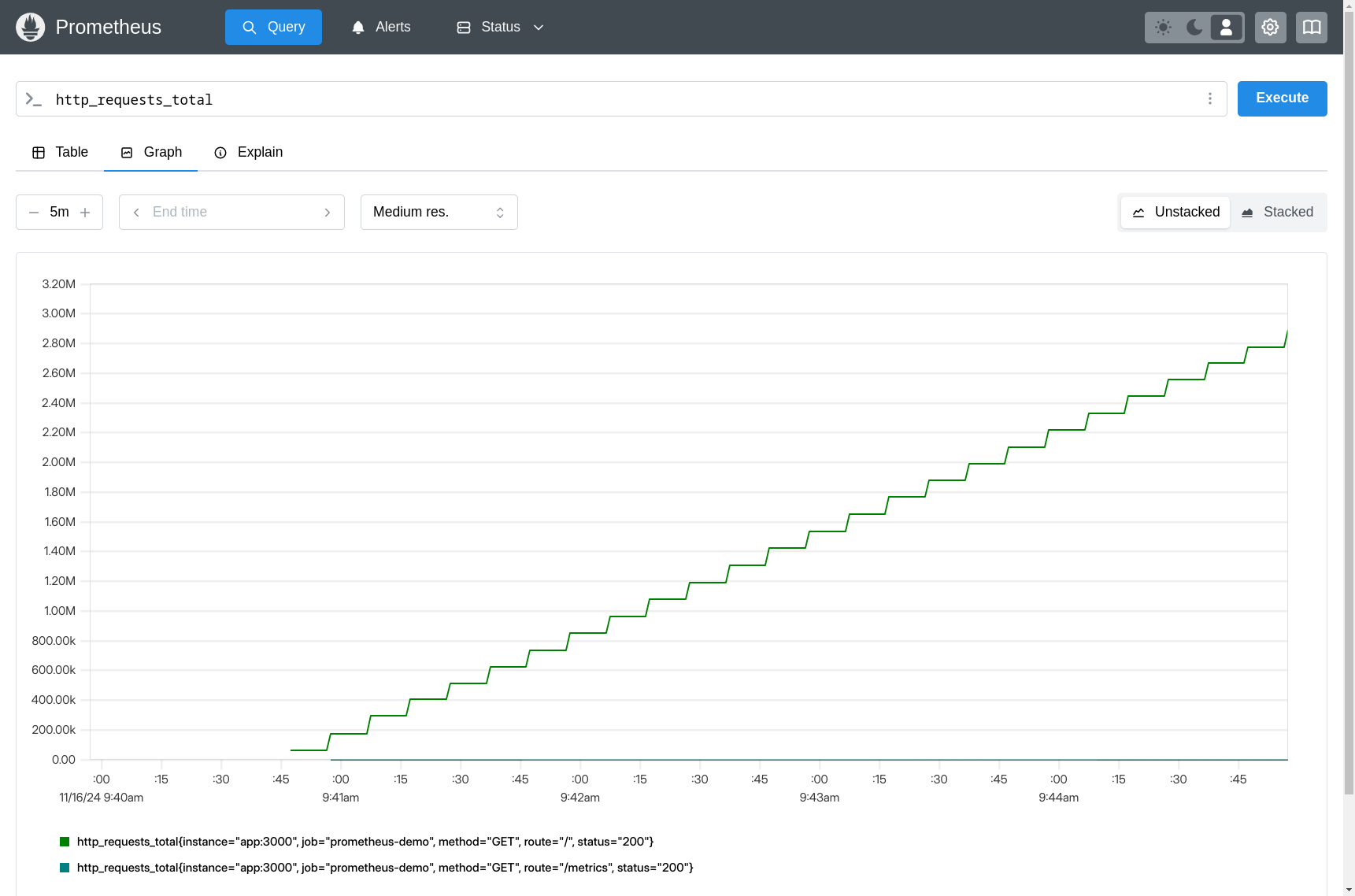

The cumulative total of a metric in Prometheus

The cumulative total number of a metric is usually not very interesting. It's often more useful to see the total increase in a counter metric's value over a specific time period (such as the last five minutes). You can do this with increase():


increase(http_requests_total[5m])

The increase() function in Prometheus

Prometheus doesn't always have data points perfectly aligned with the start and end of your time window. It often needs to extrapolate the values at the boundaries which can lead to the fractional results shown above.

Another useful way to query counters is to find the rate at which they increase. This allows you to see how quickly events are happening over time, which is often more informative than just the raw count.


rate(http_requests_total[5m])

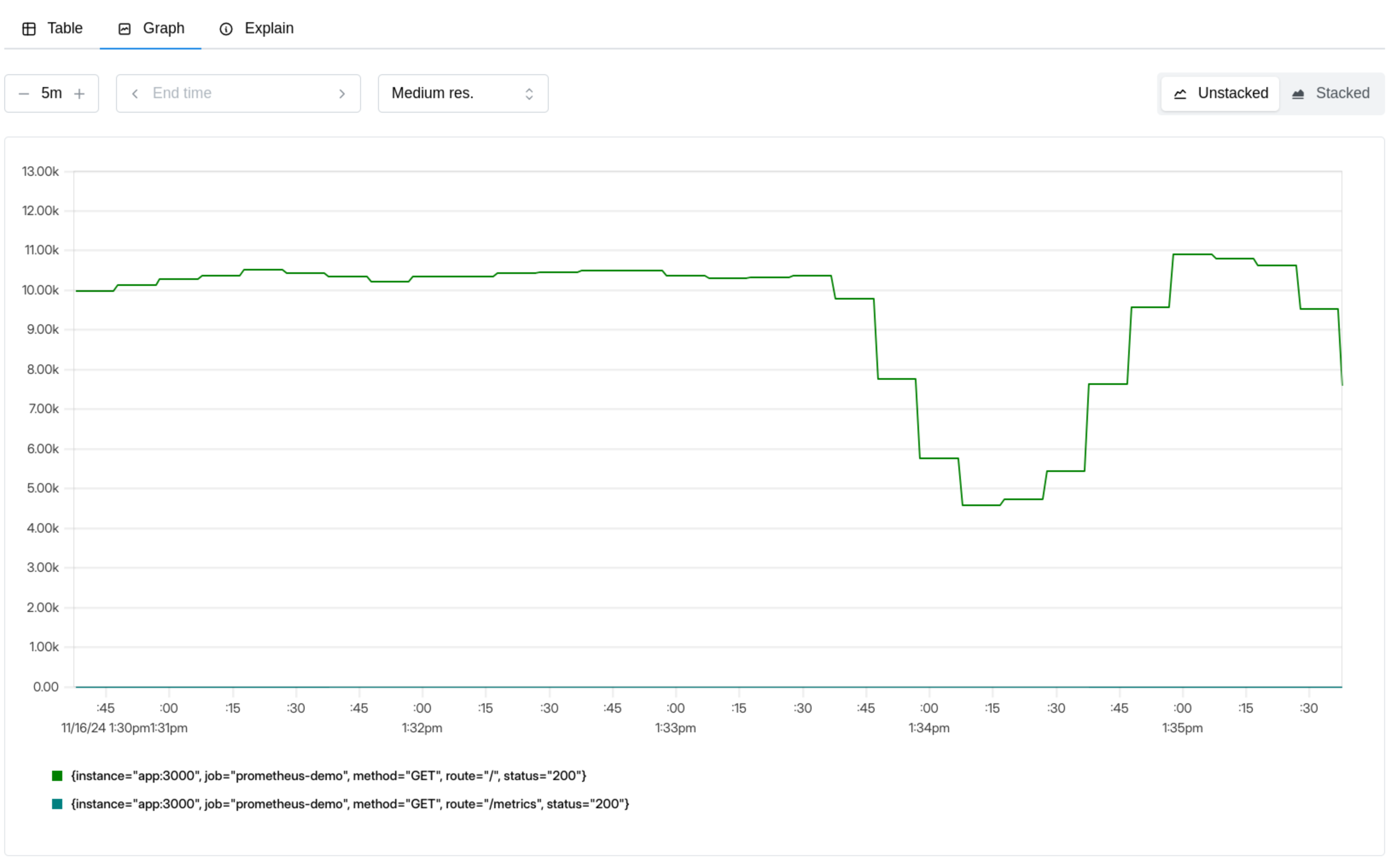

The rate of the HTTP metric

This graph clearly shows how the metric has changed over the past five minutes. Initially, the requests held steady, then experienced a sudden drop of 50%. Following a brief recovery, the requests began a consistent decline once again.

With either function, you can use labels to isolate the specific attributes you're interested in:


rate(http_requests_total{status="500"}[1h])

increase(http_requests_total{route="/login"}[15m])

You can also query counters with PromQL aggregators (like sum(), avg(), max()) to analyze counters across multiple instances or labels, such as viewing the top routes by request count over a given period:


topk(5, sum(http_requests_total[10m]) by (route))

The top 5 routes by request count in Prometheus

Since counters inherently increase, alerts should focus on significant changes in their rate of increase such as:

  • Unexpected drops in the rate of processed jobs in a queue which might indicate an issue with a scheduled task.
  • Sudden spikes in error rates, especially when it exceeds your error budget.
  • When the rate of transaction failures exceeds a safe threshold.

Let's look at the Gauge metric next.

The Gauge

Gauges offer a snapshot of a system's current state. Unlike counters, where the rate of change is what you care about, gauges focus on the present value, which can fluctuate up and down.

You can think of it like the battery level on your phone or laptop which decreases with use and increases when charged.

Gauges are ideal for tracking things like:

  • The number of logged-in users.
  • The conversion rate of a desired action.
  • Current CPU or memory usage of a process.
  • The size of a job queue or pending tasks

In your instrumentation, you have three primary ways to interact with a gauge metric. You can nudge it up and down with inc() and dec() respectively:

server.js
// 1. Create a gauge to track the current number of active connections
const activeConnectionsGauge = new promClient.Gauge({
    name: "http_active_connections",
    help: "Current number of active HTTP connections",
});

app.use((req, res, next) => {
    // Increment the gauge when a request starts
activeConnectionsGauge.inc();
// Decrement the gauge when the request finishes res.on("finish", () => {
activeConnectionsGauge.dec();
}); next(); });

Or you can set it manually to an exact value with set():

server.js
import express from "express";
import promClient from "prom-client";

const app = express();
const PORT = 3000;

const register = new promClient.Registry();

// Create a gauge to track memory usage
const memoryUsageGauge = new promClient.Gauge({
  name: 'node_memory_usage_bytes',
  help: 'Memory usage of the Node.js process in bytes',
  labelNames: ['type'],
});

// Register the gauge with the Prometheus registry
register.registerMetric(memoryUsageGauge);

// Function to update the memory usage gauge
const updateMemoryMetrics = () => {
  const memoryUsage = process.memoryUsage();
memoryUsageGauge.set({ type: 'rss' }, memoryUsage.rss); // Resident Set Size
memoryUsageGauge.set({ type: 'heapTotal' }, memoryUsage.heapTotal); // Total heap size
memoryUsageGauge.set({ type: 'heapUsed' }, memoryUsage.heapUsed); // Used heap size
memoryUsageGauge.set({ type: 'external' }, memoryUsage.external); // External memory
}; // Update memory metrics every 5 seconds setInterval(updateMemoryMetrics, 5000);

Either way, you'll get a gauge metric that looks like this:

Output
# HELP http_server_active_connections Current number of active HTTP connections
# TYPE http_server_active_connections gauge
http_server_active_connections 15

# HELP node_memory_usage_bytes Memory usage of the Node.js process in bytes
# TYPE node_memory_usage_bytes gauge
node_memory_usage_bytes{type="rss"} 52428800
node_memory_usage_bytes{type="heapTotal"} 21495808
node_memory_usage_bytes{type="heapUsed"} 12582912
node_memory_usage_bytes{type="external"} 1048576

The output above indicates that there are currently 15 active HTTP connections to the server and provides a breakdown of the current memory usage by type. The values are already meaningful so you don't need to do any further work besides interpret them correctly in their respective context.

In the Prometheus interface, you can query a gauge metric to see the recorded values over time which is usually what you're most interested in:

Example of a gauge metric in Prometheus

PromQL also provides several other functions for working with gauges. For example, you can visualize historical trends by using the avg_over_time() function:


avg_over_time(node_memory_usage_bytes[5m])

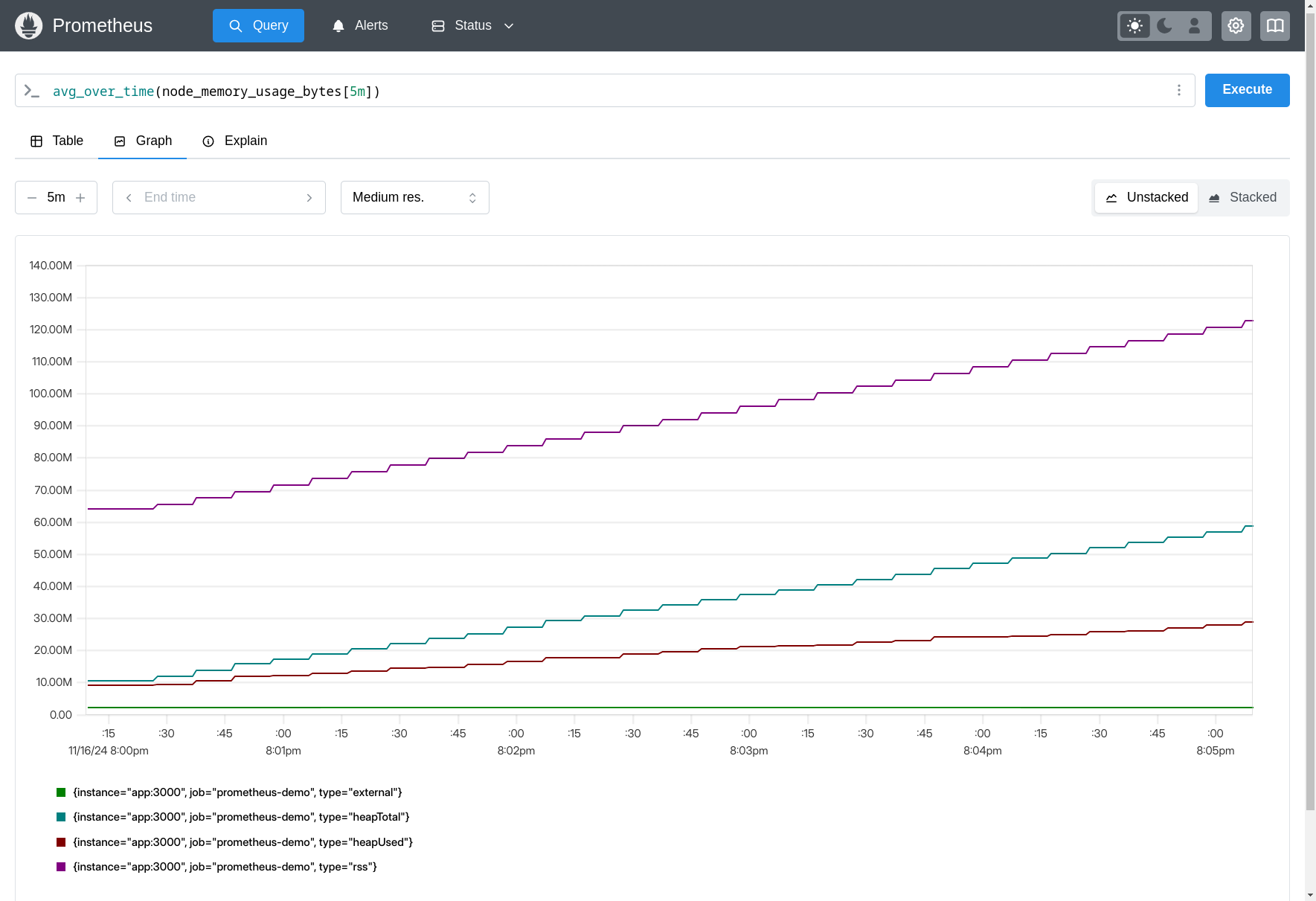

Average over time of a gauge metric in Prometheus

You can also reveal the highest and lowest values of the gauge recorded over a time period with max_over_time() and min_over_time() respectively.


max_over_time(http_server_active_connections[1d])

min_over_time(http_server_active_connections[1d])

There's also quantile_over_time() which provides a statistical view of your data to help you understand its distribution and focus on specific parts of it.

For example, you can query the 0.95 quantile (95th percentile) memory usage over the last five minutes with:


quantile_over_time(0.95, node_memory_usage_bytes[5m])

Or you can compute the median value to understand typical behavior without being skewed by extreme outliers:


quantile_over_time(0.50, node_memory_usage_bytes[5m])

One thing to note with gauges is that they can be affected by Prometheus' scraping interval. Since Prometheus only captures snapshots of the metric at each scrape, rapid fluctuations in gauge values might be missed.

For example, if your application's memory usage spikes briefly between scrapes. Prometheus might only record the lower values before and after the spike which could be misleading when looking at your metric charts.

The Histogram

The Histogram metric is a powerful way to understand the distribution of values in your measurements. It works by dividing a range of values, such as HTTP response times, into predefined "buckets" and counting how many observations fall into each bucket.

For instance, histograms enable you to track the 95th or 99th percentile to identify outlier requests that disproportionately impact load times.

By addressing these slowest requests, you can ensure that even the most delayed elements load within an acceptable timeframe, improving overall user experience.

Here's how to instrument a histogram metric in JavaScript:

server.js
// Create a histogram to track request durations
const httpRequestDurationHistogram = new promClient.Histogram({
    name: "http_request_duration_seconds",
    help: "Histogram of HTTP request durations in seconds",
});

app.use((req, res, next) => {
    const end = httpRequestDurationHistogram.startTimer(); // Start the timer

    res.on("finish", () => {
        end(); // Stop the timer and record the duration
    });

    next();
});

Or you can use the observe() method:


const httpRequestDurationHistogram = new promClient.Histogram({
    name: "http_request_duration_seconds",
    help: "Histogram of HTTP request durations in seconds",
});

app.use((req, res, next) => {
    const start = performance.now(); // Start high-resolution timer

    res.on("finish", () => {
        const elapsedTime = (performance.now() - start) / 1000; // Calculate elapsed time
httpRequestDurationHistogram.observe(elapsedTime);
}); next(); });

Either way, you'll get an http_request_duration_seconds metric that looks like this:


# HELP http_request_duration_seconds Histogram of HTTP request durations in seconds
# TYPE http_request_duration_seconds histogram
http_request_duration_seconds_bucket{le="0.005"} 11
http_request_duration_seconds_bucket{le="0.01"} 11
http_request_duration_seconds_bucket{le="0.025"} 11
http_request_duration_seconds_bucket{le="0.05"} 11
http_request_duration_seconds_bucket{le="0.1"} 11
http_request_duration_seconds_bucket{le="0.25"} 35
http_request_duration_seconds_bucket{le="0.5"} 77
http_request_duration_seconds_bucket{le="1"} 77
http_request_duration_seconds_bucket{le="2.5"} 77
http_request_duration_seconds_bucket{le="5"} 77
http_request_duration_seconds_bucket{le="10"} 77
http_request_duration_seconds_bucket{le="+Inf"} 77
http_request_duration_seconds_sum 19.730312268000002
http_request_duration_seconds_count 77

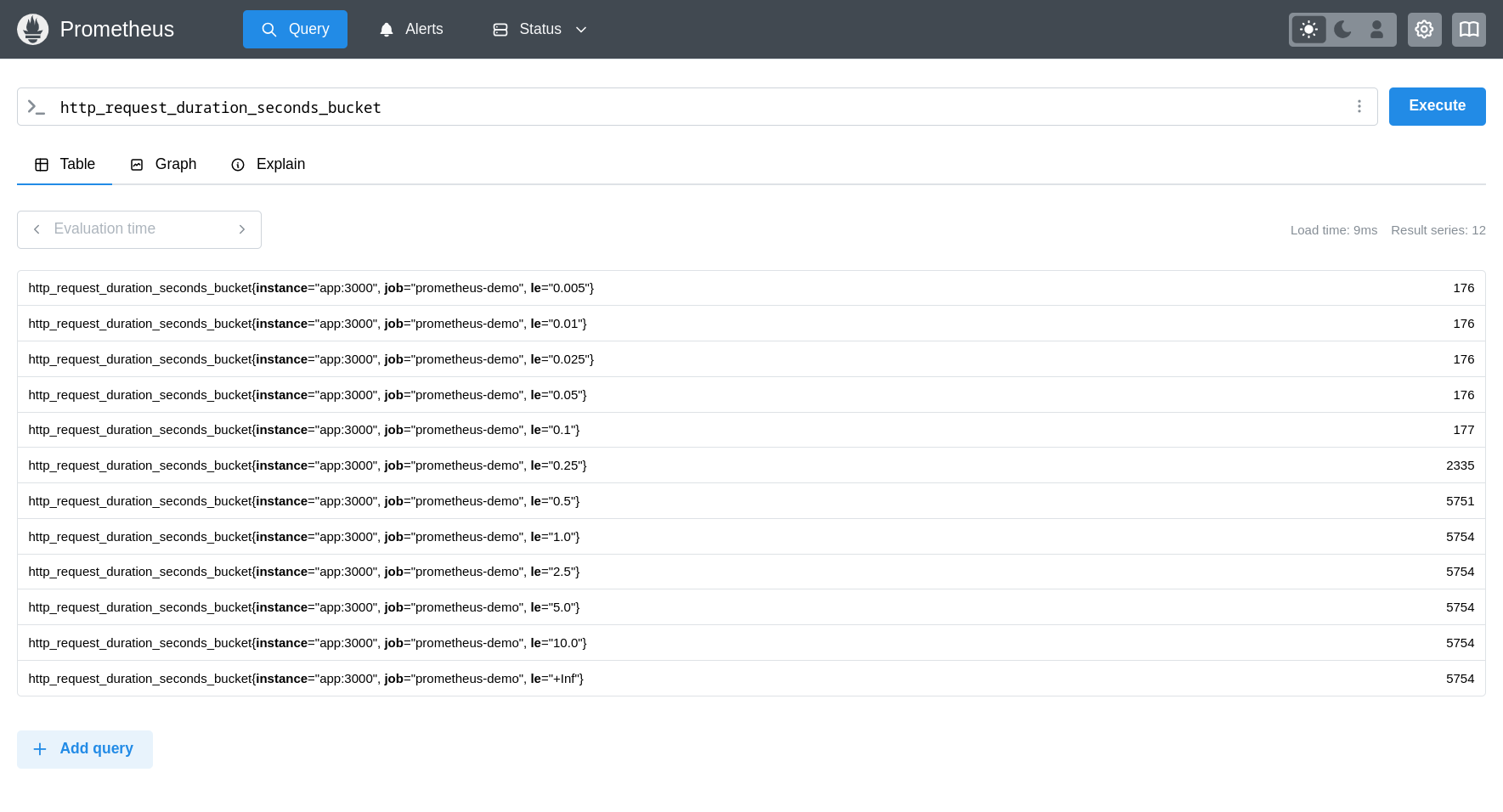

Screenshot of basic histogram metric query in Prometheus

A histogram metric consists of the following three components:

  1. Several buckets, which are exposed as counters with a _bucket suffix in the metric name. These buckets have a le (less than or equal) label that specifies the upper bound of the bucket.

  2. A counter that accumulates the sum of all observed values (represented by the _sum suffix).

  3. A counter that tracks the total number of recorded observations (represented by a _count suffix)

The above tells us that 77 requests were measured in total (http_request_duration_seconds_count), with a combined duration of 19.73 seconds (http_request_duration_seconds_sum).

The buckets show the distribution of these requests: 11 requests took less than or equal to 0.25 seconds, 35 took less than or equal to 0.5 seconds, and the remaining 31 took longer, with the majority falling below 1 second.

You will notice that the default buckets for a Histogram metric range from 5 milliseconds to 10 seconds to capture typical web application latencies. It also includes +Inf to ensure that all values are captured, including those that exceed the largest bucket:


[0.005, 0.01, 0.025, 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 10, +Inf]

However, you can customize these buckets if needed. Note that if your buckets are too small or too large, they won't accurately capture the distribution of your data.


const httpRequestDurationHistogram = new promClient.Histogram({
    name: "http_request_duration_seconds",
    help: "Histogram of HTTP request durations in seconds",
buckets: [0.1, 0.5, 1, 2.5, 5, 10], // Define the bucket ranges
});

With PromQL, you can run several types of queries on Prometheus histograms to gain insights into the distribution of your data.

Since each individual _bucket, _sum, and _count metric are all counters, you can use any PromQL function that works with counters such as rate() or increase():


rate(http_request_duration_seconds_bucket[1m]) / rate(http_request_duration_seconds_bucket[1m])

More importantly though, the histogram_quantile() function can calculate quantiles from histograms or even aggregations of histograms. For example, you can estimate the 95th percentile (0.95 quantile) of request durations over the last five minutes with:


histogram_quantile(0.95, sum(rate(http_request_duration_seconds_bucket[5m])) by (le))

This tells you the value below which 95% of the request durations fall:

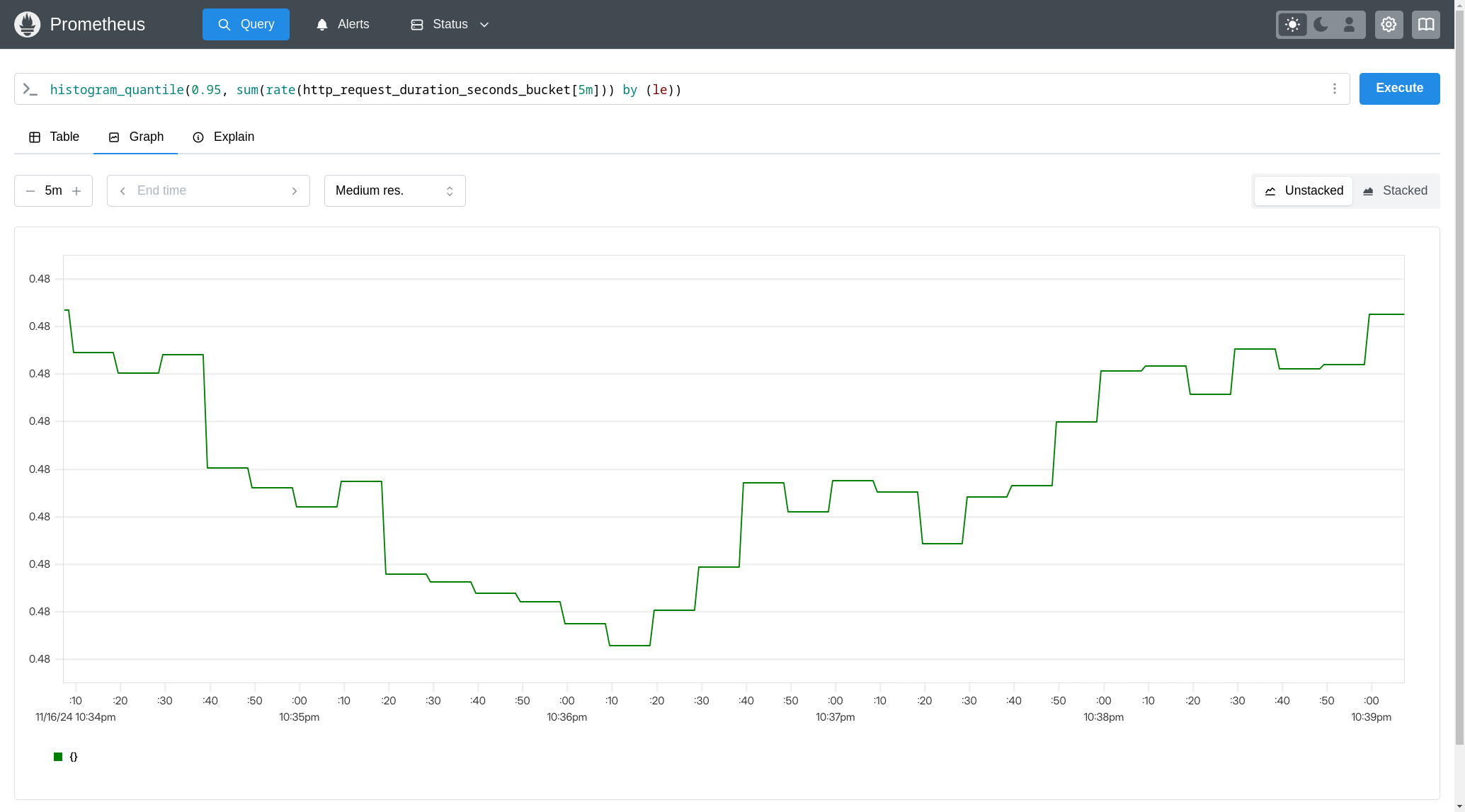

Using histogram_quantile to inspect buckets

These are just a few examples of how you can query histogram metrics with Prometheus. You can combine these functions and use labels to create more complex queries aggregated across multiple dimensions.

Just be aware that calculating quantiles from histograms can be computationally-intensive. To address this, Prometheus provides recording rules, which allow you to pre-calculate common percentiles for improved query performance.

Also, keep in mind that calculating a percentile is not meaningful with fewer than 100 samples. It's best to work with a large sample size to ensure statistical significance and reduce the impact of outliers.

A brief note on native histograms

Prometheus v2.40 introduced experimental support for native histograms. Unlike the classic histograms discussed above, a native histogram represent data using a single time series.

It dynamically adjusts the number of buckets while also recording the sum and count of observations, providing significantly higher resolution with far greater efficiency in query performance and resource usage.

As of the v3.0 release, native Histograms are still experimental and not yet enabled by default. To use this feature, you'll need to start Prometheus with the --enable-feature=native-histograms flag.

The Summary

Summaries are similar to histograms in that they track the distribution of observations, like request latency or response sizes. The major difference is that summaries calculate and expose quantiles directly on the client side, while histograms calculate quantiles on the server side with the histogram_quantile() function.

For instance, when monitoring a database query, you can use a summary to track the 95th percentile of query execution times. If the 95th percentile is 150ms, 95% of the queries were completed in less than 150ms, while the remaining 5% took longer.

Instrumenting a summary metric is similar to a histogram. Its primary method is observe(), to which you pass the size of the event:

server.js
const apiRequestDurationSummary = new promClient.Summary({
    name: "api_request_duration_seconds",
    help: "Summary of API request durations in seconds",
    labelNames: ["url"],
});

const observer = new PerformanceObserver((list) => {
    for (const entry of list.getEntries()) {
        if (entry.initiatorType === "fetch") {
apiRequestDurationSummary
.labels(entry.name)
.observe(entry.duration / 1000);
} } performance.clearResourceTimings(); }); observer.observe({ entryTypes: ["resource"] });

In the above snippet, the api_request_duration_seconds metric tracks request duration metrics recorded in the Node.js performance timeline. It specifically focuses on values recorded into the timeline by the fetch() API and observes each reported duration as it is entered while associating the URL as a label for later filtering.

The result is a summary metric that looks like this:


# HELP api_request_duration_seconds Summary of API request durations in seconds
# TYPE api_request_duration_seconds summary
api_request_duration_seconds{quantile="0.01",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds{quantile="0.05",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds{quantile="0.5",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds{quantile="0.9",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds{quantile="0.95",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds{quantile="0.99",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds{quantile="0.999",url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds_sum{url="https://jsonplaceholder.typicode.com/posts"} 0.5889730749999998
api_request_duration_seconds_count{url="https://jsonplaceholder.typicode.com/posts"} 1

api_request_duration_seconds{quantile="0.01",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds{quantile="0.05",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds{quantile="0.5",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds{quantile="0.9",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds{quantile="0.95",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds{quantile="0.99",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds{quantile="0.999",url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds_sum{url="https://covid-api.com/api/reports/total"} 1.8197589250000001
api_request_duration_seconds_count{url="https://covid-api.com/api/reports/total"} 1

api_request_duration_seconds{quantile="0.01",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds{quantile="0.05",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds{quantile="0.5",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds{quantile="0.9",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds{quantile="0.95",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds{quantile="0.99",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds{quantile="0.999",url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds_sum{url="https://ipinfo.io/json"} 0.45094010100000015
api_request_duration_seconds_count{url="https://ipinfo.io/json"} 1

Like histograms, summaries capture the distribution of the recorded values. In addition to the total number of observations (_count) and the sum of all observed values (_sum), they also calculate quantiles over a sliding time window.

For example, the 0.9-quantile indicates that 90% of the observed requests to https://jsonplaceholder.typicode.com/posts completed in less than 0.501 seconds, while the same quantile https://covid-api.com/api/reports/total is 1.819 seconds.

The default quantiles include 0.01, 0.05, 0.5, 0.9, 0.95, 0.99, and 0.999. However, you can customize these with a percentiles array:


const apiRequestDurationSummary = new promClient.Summary({
    name: "api_request_duration_seconds",
    help: "Summary of API request durations in seconds",
percentiles: [0.01, 0.1, 0.9, 0.99],
labelNames: ["url"], });

Generally, you don't want latency metrics to reflect the entire runtime of an application but rather focus on a meaningful time interval. To achieve this, a configurable sliding window is often used:


const apiRequestDurationSummary = new promClient.Summary({
    name: "api_request_duration_seconds",
    help: "Summary of API request durations in seconds",
    labelNames: ["url"],
maxAgeSeconds: 600, // 10 minutes
ageBuckets: 5,
});

The maxAgeSeconds option defines how long a bucket can retain data before it resets, while ageBuckets determines the number of buckets within the sliding window. Together, these properties ensure your data remains relevant and reflects recent performance.

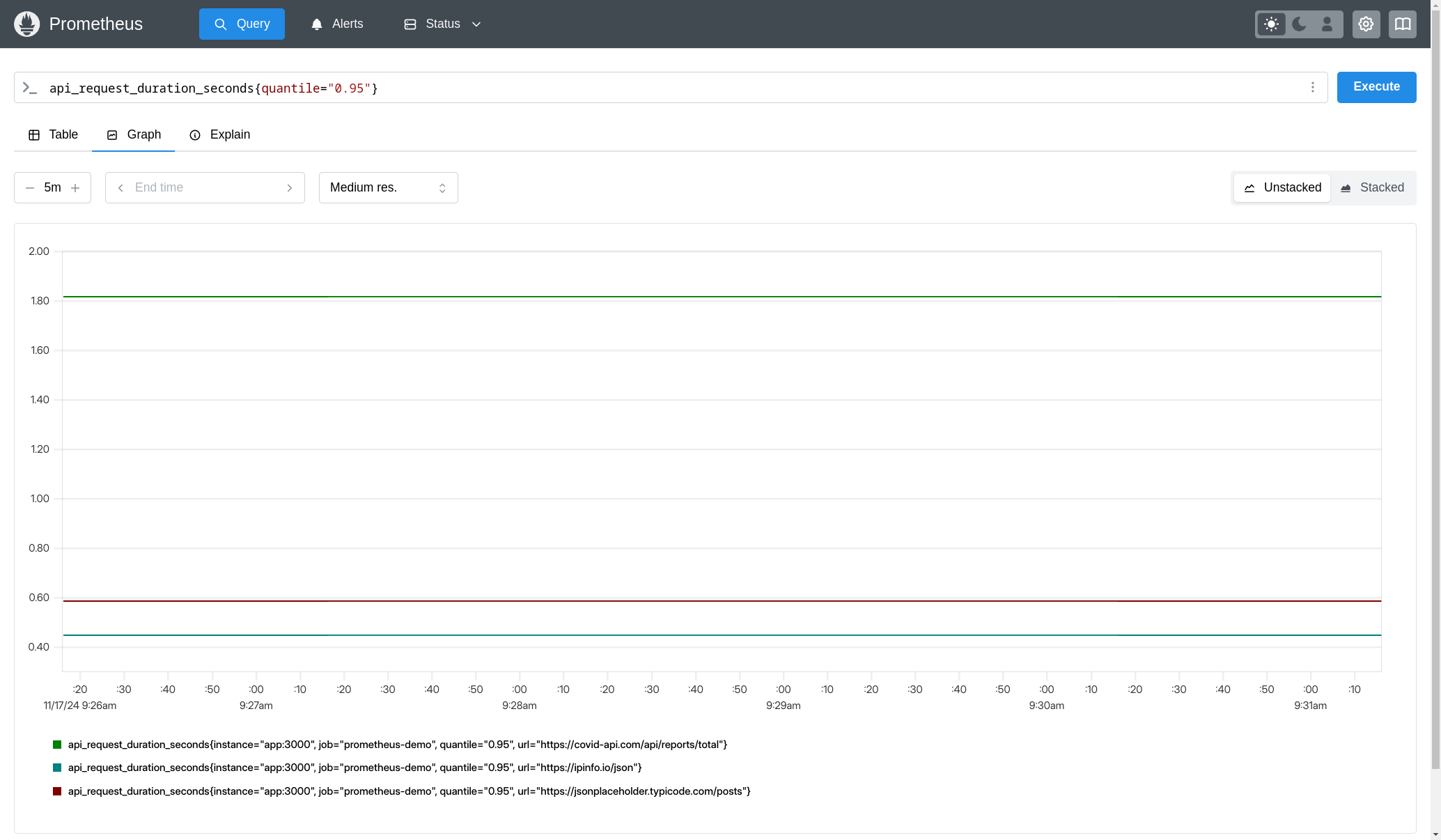

In PromQL, the most useful way to query a summary metric is by directly accessing the precomputed quantiles, such as the median (50th percentile) or the 95th percentile. You can then set alerts to trigger if a specific quantile exceeds a certain threshold.


api_request_duration_seconds{quantile="0.95"}

Querying summary metrics in Prometheus

You can also calculate the per-second rate of change of the 99th percentile over a time period with:


rate(api_request_duration_seconds{quantile="0.99"}[5m])

Although you cannot aggregate quantiles from different instances, you can use the sum() and count() functions to calculate the total number of observations and their cumulative sum across all instances. This allows you to analyze trends and compute averages across a distributed system.

When to use histograms and when to use summaries

Histograms are generally preferred in most monitoring scenarios for their flexibility and ability to aggregate data.

Summaries, on the other hand, shine best when you need more accurate percentiles or when averages are sufficient for your analysis.

The table below summarizes the differences between the two metric types:

Aspect Histograms Summaries
Quantile calculation On the server side with histogram_quantile() On the client side, precomputed and exposed
Aggregation across instances Supported with PromQL (e.g., sum(rate(...))) Not aggregatable, aggregation may produce invalid results
Flexibility Allows ad-hoc quantile calculation and time range adjustment Requires preconfigured quantiles and time window
Performance Lightweight client-side; server processes quantiles Higher client-side cost due to streaming quantile calculation
Error margin Determined by bucket size Configurable in terms of quantile accuracy

In general, use histograms when:

  • You need to aggregate quantiles across multiple instances.
  • You want the flexibility to calculate different quantiles or use different time windows later on.
  • You are monitoring system-wide Service Level Objectives (SLOs).

Use summaries when:

  • You are monitoring a single instance or service.
  • You need high precision for specific quantiles with low server-side overhead.
  • Aggregation is not required or practical.

Collecting and visualizing Prometheus metrics with Better Stack

Prometheus is a powerful monitoring tool, but it can struggle to keep up as your systems grow.

It traditionally runs on a single server, collecting data from various endpoints. When you have many services, this central server can become overwhelmed.

Organizations often turn to solutions like federated architectures or external databases to overcome this, but it adds more complexity and can be quite costly to manage.

Better Stack offers a simpler, more scalable approach that makes it easy to gain insights into your systems without the headaches of scaling and managing your own Prometheus infrastructure.

For the cost of a fancy coffee, you can have Better Stack manage a billion data points for you, visualize them in low-latency dashboards, and alert you when things go wrong. Self-hosting Prometheus just doesn't make sense anymore.

Give it a try today with a completely free account, which includes 2 billion ingested metric data points with a 30-day retention.

Thanks for reading, and happy monitoring!

Author's avatar
Article by
Ayooluwa Isaiah
Ayo is the Head of Content at Better Stack. His passion is simplifying and communicating complex technical ideas effectively. His work was featured on several esteemed publications including LWN.net, Digital Ocean, and CSS-Tricks. When he’s not writing or coding, he loves to travel, bike, and play tennis.
Got an article suggestion? Let us know
Next article
Effective Alerting with Prometheus Alertmanager
A practical guide to Alertmanager, covering setup, grouping, inhibition, and techniques to reduce alert fatigue and streamline incident response
Licensed under CC-BY-NC-SA

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

Make your mark

Join the writer's program

Are you a developer and love writing and sharing your knowledge with the world? Join our guest writing program and get paid for writing amazing technical guides. We'll get them to the right readers that will appreciate them.

Write for us
Writer of the month
Marin Bezhanov
Marin is a software engineer and architect with a broad range of experience working...
Build on top of Better Stack

Write a script, app or project on top of Better Stack and share it with the world. Make a public repository and share it with us at our email.

community@betterstack.com

or submit a pull request and help us build better products for everyone.

See the full list of amazing projects on github
