A Beginner's Guide to Docker Compose

Docker Docker Compose
Mercy Bassey
Updated on November 20, 2024

Docker Compose is a tool used for defining and managing multi-container Docker applications, automating the process of building, running, and linking multiple services like web servers, databases, and caching services.

It simplifies running complex applications by allowing you to start all necessary services with a single command, ensuring proper sequence and communication between them.

Docker Compose operates in two modes: standalone mode and Docker Swarm mode, each with unique features. This guide focuses primarily on the standalone mode, covering installation, basic setup, and usage for deploying full stack applications.

Prerequisites

To follow along in this tutorial, ensure that you meet the following requirements:

  • You should have a good understanding of Docker and its various commands.
  • You should be proficient in using the Linux command-line interface.

Please note, all the commands in this article have been tested and verified on a fresh installation of Ubuntu 22.04.

Step 1 — Setting up a demo application

To effectively grasp the concepts we'll explore in this guide, we'll prepare a full-stack application to illustrate the functionality of Docker Compose.

In this tutorial, you'll engage with a Todo List application built using Vue.js. This application interacts with a Node.js API, which subsequently manages data in a MongoDB database.

Start by forking the GitHub repository available at this link. After forking, clone the repository to your local system using the following Git command:


git clone git@github.com:betterstack-community/docker-compose-tutorial.git

Next, navigate into the repository and open it in your preferred code editor with these commands:


cd docker-compose

code .

This repository consists of two main directories: frontend and backend. The former houses a VueJS application, while the latter directory includes a Node.js API.

Verify the contents of the repository by running:


tree
Output
.
├── backend
│   ├── Dockerfile
│   ├── index.js
│   ├── Models
│   │   └── Todo.js
│   ├── package.json
│   └── package-lock.json
└── frontend
    ├── Dockerfile
    ├── index.html
    ├── package.json
    ├── package-lock.json
    ├── public
    │   └── favicon.ico
    ├── README.md
    ├── src
    │   ├── App.vue
    │   ├── components
    │   │   └── TodoList.vue
    │   ├── index.css
    │   └── main.js
    └── vite.config.js

6 directories, 16 files

The demo application operates as follows:

  • The Node.js server establishes endpoints for creating, listing, updating, and deleting todo items. It also connects to a MongoDB database for storing these items.

  • The Vue.js application utilizes the Todo API endpoints to perform create, list, update, and delete operations on Todos.

  • Both the frontend and backend directories contain a Dockerfile, which includes instructions for building the respective application images.

Next, you'll install Docker and Docker Compose.

Step 2 — Installing Docker and Docker Compose

To utilize Docker and Docker Compose in your project, you need to install them first. You can install Docker through Docker Desktop or Docker Engine. Depending on your operating system, follow the appropriate links for installing Docker Desktop:

Before proceeding to the next section, confirm that both Docker and Docker Compose are installed using the commands below:


docker --version
Output
Docker version 24.0.6, build ed223bc

docker compose version
Output
Docker Compose version v2.21.0

Step 3 — Configuring Docker Compose

Docker Compose uses a YAML file with a declarative syntax to define the components of your application, including services, configurations, and dependencies. This file specifies container images, environment variables, network settings, and volume mounts.

Typically, Docker Compose searches for a file named docker-compose.yml in the current directory. If you use a different name, you must point to it using the -f or --file flag in Docker Compose commands.

Begin by creating a docker-compose.yml file at your project's root directory with the following configuration:

docker-compose.yml
version: '3.8'

services:

  frontend:
    build: ./frontend
    ports:
      - "5173:80"
    networks:
      - my-network
    depends_on:
      - backend

  backend:
    build: ./backend
    ports:
      - "3000:3000"
    networks:
      - my-network
    depends_on:
      - database

  database:
    image: mongo
    volumes:
      - mongodb_data:/data/db
    networks:
      - my-network


networks:
  my-network:

volumes:
  mongodb_data:

This configuration includes:

  • version: The version of the Compose specification, here it is 3.8.

  • services: Defines the application services. In this example, there are three services:

  1. frontend:
    • Built from the Dockerfile in the frontend directory.
    • Maps container port 80 to host port 5173.
    • Depends on backend.
    • Uses my-network for communication.
  2. backend:
    • Built from the Dockerfile in the backend directory.
    • Maps container port 3000 to the same port on the host.
    • Depends on database.
    • Uses my-network for communication.
  3. database:
    • Uses the official MongoDB image.
    • Mounts mongodb_data volume to /data/db in the container.
    • Uses my-network for communication.

  • networks: Defines a custom network (my-network) for inter-service communication.

  • volumes: Declares the mongodb_data volume for persistent data storage, allowing for easier management independent of Docker commands.

Step 4 — Building and running services with Docker Compose

With your docker-compose.yml file ready, it's time to build and run your services using Docker Compose, as detailed in this section.

Execute the following command:


docker compose up

This command builds or pulls the images for your services and launches them as Docker containers. The expected output will look like this:

Output
[+] Running 4/4
 ✔ Network docker-compose_my-network    C...                                     0.1s
 ✔ Container docker-compose-database-1  Created                                  0.1s
 ✔ Container docker-compose-backend-1   Created                                  0.0s
 ✔ Container docker-compose-frontend-1  Created                                  0.1s
Attaching to docker-compose-backend-1, docker-compose-database-1, docker-compose-frontend-1
...
docker-compose-backend-1   | MongoDB connected
docker-compose-database-1  | {"t":{"$date":"2023-10-11T22:22:24.511+00:00"},"s":"I",  "c":"NETWORK",  "id":22943,   "ctx":"listener","msg":"Connection accepted","attr":{"remote":"172.30.0.3:43190","uuid":{"uuid":{"$uuid":"32276766-6e59-48ba-afbf-5db8b7d7d3d5"}},"connectionId":2,"connectionCount":2}}
docker-compose-database-1  | {"t":{"$date":"2023-10-11T22:22:24.516+00:00"},"s":"I",  "c":"NETWORK",  "id":51800,   "ctx":"conn2","msg":"client metadata","attr":{"remote":"172.30.0.3:43190","client":"conn2","doc":{"driver":{"name":"nodejs|Mongoose","version":"5.9.0|7.6.1"},"platform":"Node.js v18.18.0, LE","os":{"name":"linux","architecture":"x64","version":"6.2.0-31-generic","type":"Linux"}}}}
...

In the above output, containers for frontend, backend, and database services are named docker-compose-frontend-1, docker-compose-backend-1, and docker-compose-database-1, respectively.

To check the running containers, use:


docker compose ps

This displays the running Docker containers, the service names, listening ports, and other relevant information:

Output
NAME                        IMAGE                     COMMAND                                          SERVICE    CREATED         STATUS         PORTS
docker-compose-backend-1    docker-compose-backend    "docker-entrypoint.sh npm start"                 backend    2 minutes ago   Up 2 minutes   0.0.0.0:3000->3000/tcp, :::3000->3000/tcp
docker-compose-database-1   mongo                     "docker-entrypoint.sh mongod"                    database   2 minutes ago   Up 2 minutes   27017/tcp
docker-compose-frontend-1   docker-compose-frontend   "/docker-entrypoint.sh nginx -g 'daemon off;'"   frontend   2 minutes ago   Up 2 minutes   0.0.0.0:5173->80/tcp, :::5173->80/tcp

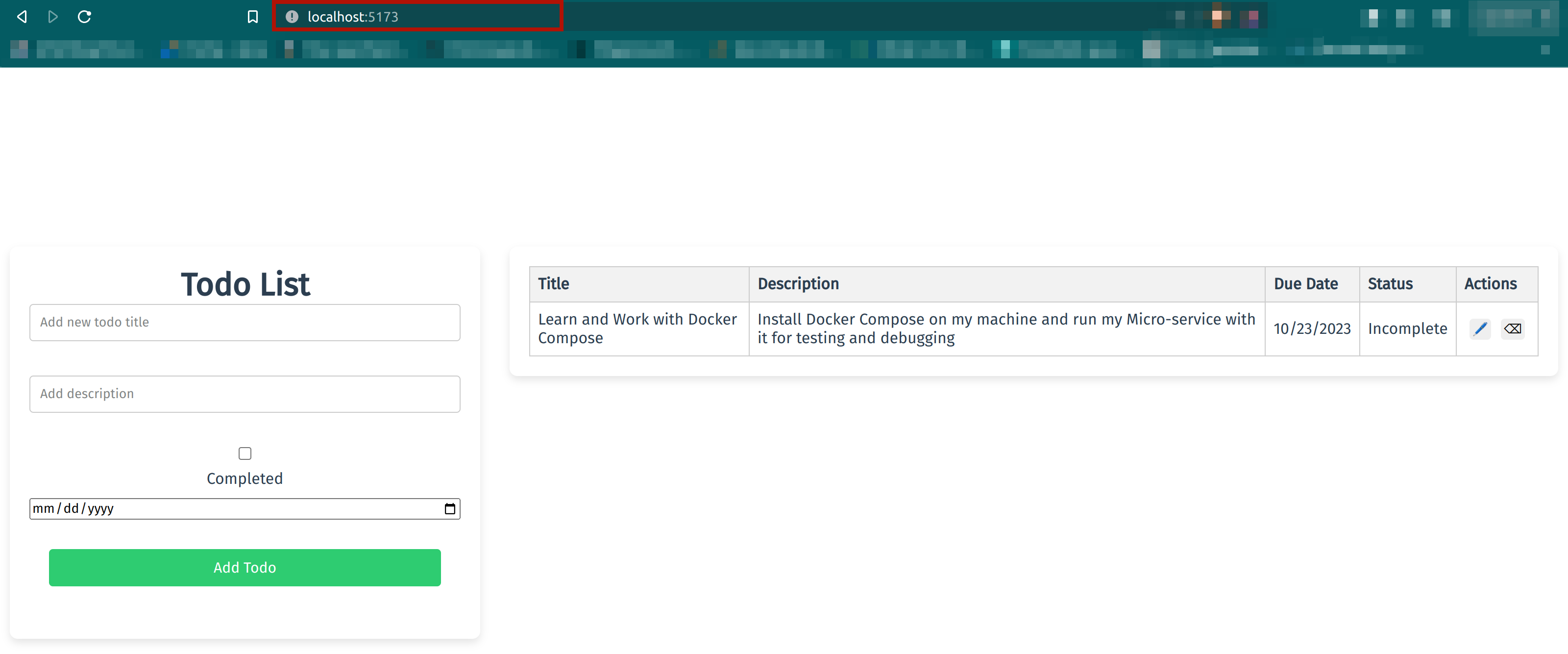

Access the Vue.js app by visiting http://localhost:5173/ in your browser. Add a new todo item to verify that everything is functioning correctly.


To view the logs for any of the services, use:


docker compose logs <service-name>

For example, to view MongoDB logs:


docker compose logs database

You'll see logs similar to these:

Output
docker-compose-database-1  | {"t":{"$date":"2023-10-11T22:22:35.024+00:00"},"s":"I",  "c":"NETWORK",  "id":51800,   "ctx":"conn3","msg":"client metadata","attr":{"remote":"172.30.0.3:44760","client":"conn3","doc":{"driver":{"name":"nodejs|Mongoose","version":"5.9.0|7.6.1"},"platform":"Node.js v18.18.0, LE","os":{"name":"linux","architecture":"x64","version":"6.2.0-31-generic","type":"Linux"}}}}

Once you are done, press CTRL-C in the terminal running docker compose up to gracefully shut down all containers:

Output
^CGracefully stopping... (press Ctrl+C again to force)
Aborting on container exit...
[+] Stopping 3/3
 ✔ Container docker-compose-frontend-1  Stopped                                   0.3s
 ✔ Container docker-compose-backend-1   Stopped                                  10.3s
 ✔ Container docker-compose-database-1  Stopped                                   0.3s
canceled

This completes the orchestration of a full-stack application with Docker Compose.

Final thoughts

In this tutorial, we provided a comprehensive guide to using Docker Compose, a powerful tool for managing multi-container Docker applications.

Through this article, you've learned how to set up, configure, and manage a full-stack application with multiple interdependent services. For further exploration, see the Docker Compose documentation.

Happy containerizing!
