Instrumenting & Monitoring Go Apps with Prometheus

This article offers a comprehensive guide to integrating Prometheus metrics in your Go application.

It covers essential concepts such as instrumenting your code with different metric types, tracking HTTP server activity, and efficiently exposing metrics for Prometheus to scrape.

You'll find the complete source code for this tutorial in this GitHub repository.

Let's dive in!

Prerequisites

• Prior Go development experience and a recent version installed.
• Familiarity with Docker and Docker Compose.
• Basic familiarity with the Prometheus metric types.

Step 1 — Setting up the demo project

Let's begin by setting up the demo project, which is a simple "Hello World" server. Clone the following GitHub repository to your local machine using the command below:

git clone https://github.com/betterstack-community/prometheus-golang

Next, navigate to the project directory:

cd prometheus-golang

This project includes a docker-compose.yml file that defines two services:

services:
  app:
    build:
      context: .
      target: ${GO_ENV}
    container_name: golang-demo
    environment:
      PORT: ${PORT}
      LOG_LEVEL: ${LOG_LEVEL}
    env_file:
      - ./.env
    ports:
      - 8000:8000
    networks:
      - prometheus-golang
    volumes:
      - .:/app

  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
      - prometheus_data:/prometheus
    command:
      - --config.file=/etc/prometheus/prometheus.yml
      - --storage.tsdb.path=/prometheus
      - --web.console.libraries=/etc/prometheus/console_libraries
      - --web.console.templates=/etc/prometheus/consoles
      - --web.enable-lifecycle
    expose:
      - 9090
    ports:
      - 9090:9090
    networks:
      - prometheus-golang

networks:
  prometheus-golang:

volumes:
  prometheus_data:

• app: This service runs the application on port 8000 and uses air to enable live reloading whenever files are changed.

• prometheus: This service runs the Prometheus server, configured using the   prometheus.yml file.

Before starting the services, rename the .env.example file to .env. This file contains basic configuration settings for the application:

GO_ENV=development
PORT=8000
LOG_LEVEL=info

Use the following command to rename the file:

mv .env.example .env

Now, start both services in the background with this command:

docker compose up -d

You should observe output similar to this:

[+] Running 3/3
 ✔ Network prometheus-golang_prometheus-golang  Created              0.2s
 ✔ Container golang-demo                        Started              0.6s
 ✔ Container prometheus                         Started              0.6s

To verify the application is working, send a request to the root endpoint using curl:

curl http://localhost:8000

This should return the following response:

Hello world

You can also navigate to http://localhost:9090/targets to view the Prometheus UI and confirm that your golang-demo application is accessible:

With the services running successfully, we can proceed to integrate the Prometheus packages in the next step.

Step 2 — Exposing the default metrics

Before you can instrument your application with Prometheus, you need to install the necessary packages first:

go get github.com/prometheus/client_golang/prometheus \
  github.com/prometheus/client_golang/prometheus/promhttp

This command installs the prometheus and promhttp packages. The former is the core library for defining and managing metrics, while the latter provides an HTTP handler for exposing metrics in a Prometheus-compatible format.

To integrate them into your Go application, modify your main.go file as follows:

package main

import (
    "log"
    "net/http"
    "os"

    "github.com/joho/godotenv"
    "github.com/prometheus/client_golang/prometheus/promhttp"
)

func init() {
    _ = godotenv.Load()
}

func main() {
    mux := http.NewServeMux()

    mux.Handle("/metrics", promhttp.Handler())

    . . .
}

This imports the promhttp package which provides an HTTP handler that serves metrics in a format that Prometheus can scrape.

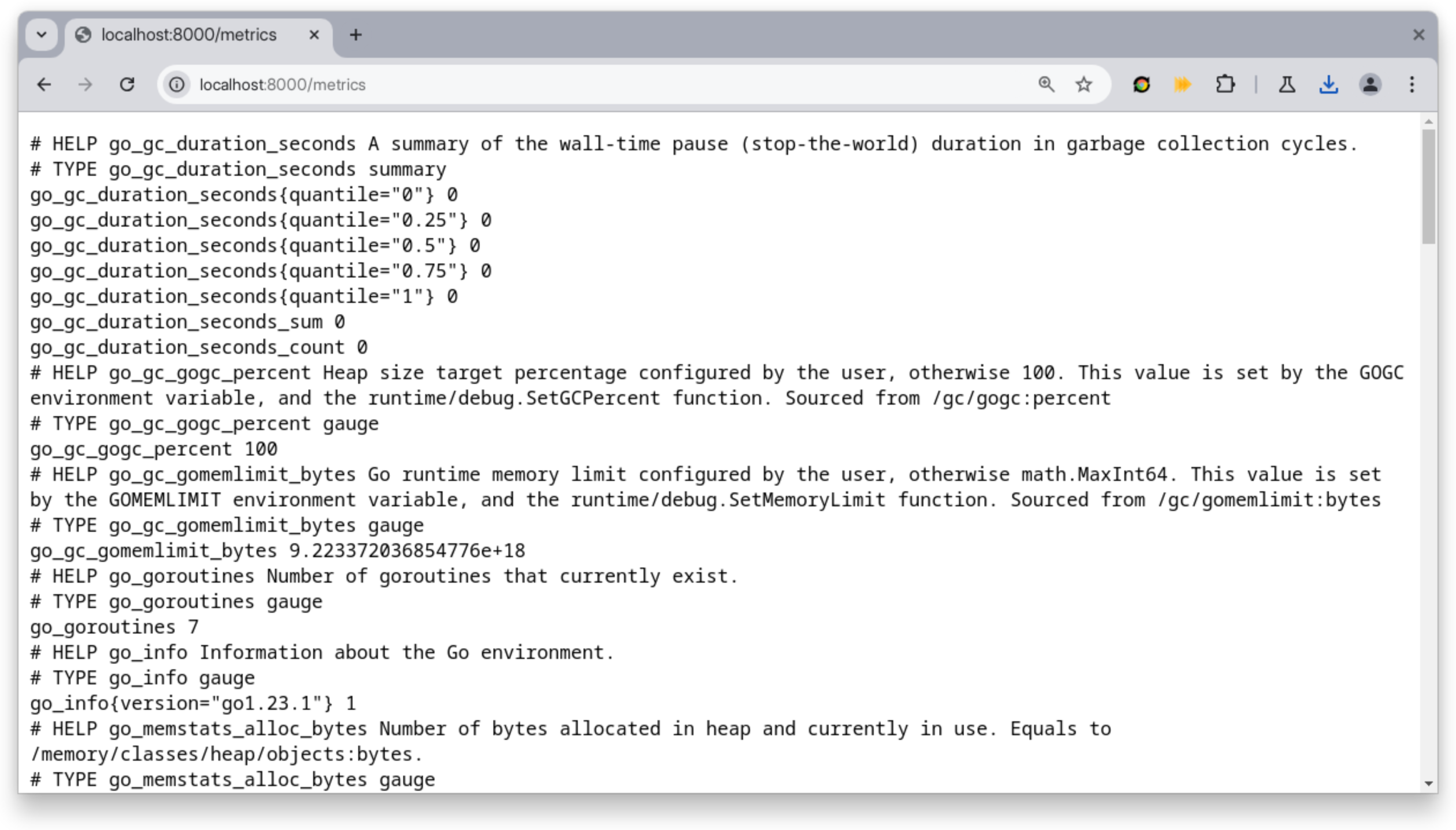

If you visit the http://localhost:8000/metrics in your browser, you will see the following output:

# HELP go_gc_duration_seconds A summary of the wall-time pause (stop-the-world) duration in garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 0
go_gc_duration_seconds{quantile="0.25"} 0
go_gc_duration_seconds{quantile="0.5"} 0
go_gc_duration_seconds{quantile="0.75"} 0
go_gc_duration_seconds{quantile="1"} 0
go_gc_duration_seconds_sum 0
go_gc_duration_seconds_count 0
# HELP go_gc_gogc_percent Heap size target percentage configured by the user, otherwise 100. This value is set by the GOGC environment variable, and the runtime/debug.SetGCPercent function. Sourced from /gc/gogc:percent
# TYPE go_gc_gogc_percent gauge
go_gc_gogc_percent 100
. . .

By default, Prometheus uses the global registry, which automatically registers standard Go runtime metrics and process metrics. While Prometheus gathers a wide range of default metrics, they're not usually essential for typical monitoring needs.

To disable these, you must create a custom registry and register only the metrics you care about. Then pass your custom registry to promhttp.HandlerFor() to expose only the metrics you explicitly register:

package main

import (
    "log"
    "net/http"
    "os"

    "github.com/joho/godotenv"
    "github.com/prometheus/client_golang/prometheus"
    "github.com/prometheus/client_golang/prometheus/promhttp"
)

func init() {
    _ = godotenv.Load()
}

func main() {
    mux := http.NewServeMux()

    reg := prometheus.NewRegistry()

    handler := promhttp.HandlerFor(
        reg,
        promhttp.HandlerOpts{})

    mux.Handle("/metrics", handler)

    . . .
}

Since we haven't explicitly registered any custom metrics, the /metrics route will return an empty response. In the following sections, you will instrument the Counter, Gauge, Histogram, and Summary metric in turn.

Step 3 — Instrumenting a Counter metric

Let's start with a rather basic metric that keeps track of the total number of HTTP requests made to the server. Since this number always goes up, it is best represented as a Counter.

Edit your main.go file to include the counter instrumentation:

package main

import (
    "log"
    "net/http"
    "os"
    "strconv"

    "github.com/joho/godotenv"
    "github.com/prometheus/client_golang/prometheus"
    "github.com/prometheus/client_golang/prometheus/promhttp"
)

func init() {
    _ = godotenv.Load()
}

var httpRequestCounter = prometheus.NewCounterVec(prometheus.CounterOpts{
    Name: "http_requests_total",
    Help: "Total number of HTTP requests received",
}, []string{"status", "path", "method"})

// Middleware to count HTTP requests
func prometheusMiddleware(next http.Handler) http.Handler {
    return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
        // Wrap the ResponseWriter to capture the status code
        recorder := &statusRecorder{
            ResponseWriter: w,
            statusCode:     http.StatusOK,
        }

        // Process the request
        next.ServeHTTP(recorder, r)

        method := r.Method
        path := r.URL.Path // Path can be adjusted for aggregation (e.g., `/users/:id` → `/users/{id}`)
        status := strconv.Itoa(recorder.statusCode)

        // Increment the counter
        httpRequestCounter.WithLabelValues(status, path, method).Inc()
    })
}

// Helper to capture HTTP status codes
type statusRecorder struct {
    http.ResponseWriter
    statusCode int
}

func (rec *statusRecorder) WriteHeader(code int) {
    rec.statusCode = code
    rec.ResponseWriter.WriteHeader(code)
}

func main() {
    mux := http.NewServeMux()

    reg := prometheus.NewRegistry()

    reg.MustRegister(httpRequestCounter)

    handler := promhttp.HandlerFor(
        reg,
        promhttp.HandlerOpts{})

    mux.Handle("/metrics", handler)

    mux.HandleFunc("/", func(w http.ResponseWriter, r *http.Request) {
        w.Write([]byte("Hello world!"))
    })

    port := os.Getenv("PORT")
    if port == "" {
        port = "8000"
    }

    promHandler := prometheusMiddleware(mux)

    log.Println("Starting HTTP server on port", port)

    if err := http.ListenAndServe(":"+port, promHandler); err != nil {
        log.Fatal("Server failed to start:", err)
    }
}

In this snippet, the httpRequestCounter metric is created using a CounterVec which is a Prometheus metric type that tracks a cumulative count of events and supports labels for categorization. The prometheus package also exposes a Counter type, but it does not support using labels.

The CounterOpts struct specifies the metric's name, and provides a short description of its purpose. The metric is then labeled with HTTP status code, requested URL path, and the HTTP method like GET or POST.

These labels allow you to distinguish between different types of requests and provide detailed breakdowns for analysis when querying with PromQL later on.

To automatically increment the request count for all current and future HTTP routes, you created a prometheusMiddleware() function that wraps the existing HTTP handler. It uses a statusRecorder to capture the HTTP status code, which is not directly accessible during request handling.

After processing the request with next.ServeHTTP(), the middleware extracts the HTTP method, path, and status code, then increments the counter using httpRequestCounter.WithLabelValues.Inc(). This ensures that every HTTP request is counted and categorized by its attributes.

Finally, the httpRequestCounter must be explicitly registered with the custom Prometheus registry, and the existing HTTP multiplexer (mux) is wrapped with the prometheusMiddleware().

By doing this, every incoming HTTP request will pass through the middleware, ensuring that request counter metrics are updated as part of the request lifecycle.

Once you've saved the file, you may refresh the http://localhost:8000/metrics page a couple of times. You will see the following results:

# HELP http_requests_total Total number of HTTP requests received
# TYPE http_requests_total counter
http_requests_total{method="GET",path="/",status="200"} 6
http_requests_total{method="GET",path="/favicon.ico",status="200"} 4
http_requests_total{method="GET",path="/metrics",status="200"} 4

To send a steady stream of requests to a route, you can use a benchmarking tool like wrk:

wrk -t 1 -c 1 -d 300s --latency "http://localhost:8000

You can visit the Prometheus web interface at http://localhost:9090 to see your metrics in action. Typing http_requests_total in the expression input and clicking Execute will display the raw metric values:

You can then switch to the Graph tab to see the counter increasing continually as long as the service continues to handle HTTP requests:

Let's look at how to instrument a Gauge metric next.

Step 4 — Instrumenting a Gauge metric

A Gauge represents a value that can go up or down, making it ideal for tracking values like active connections, queue sizes, or memory usage.

In this section, we'll use a Prometheus Gauge to monitor the number of active connections to the service.

Here's what you need to add to your main.go file:

package main

import (
    "log"
    "net/http"
    "os"
    "strconv"
    "time"

    "github.com/joho/godotenv"
    "github.com/prometheus/client_golang/prometheus"
    "github.com/prometheus/client_golang/prometheus/promhttp"
)

. . .

var activeRequestsGauge = prometheus.NewGauge(
    prometheus.GaugeOpts{
        Name: "http_active_requests",
        Help: "Number of active connections to the service",
    },
)

// Middleware to count HTTP requests.
func prometheusMiddleware(next http.Handler) http.Handler {
    return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
        activeRequestsGauge.Inc()
        // Wrap the ResponseWriter to capture the status code
        recorder := &statusRecorder{
            ResponseWriter: w,
            statusCode:     http.StatusOK,
        }

        time.Sleep(1 * time.Second)

        // Process the request
        next.ServeHTTP(recorder, r)

        activeRequestsGauge.Dec()

        . . .
    })
}

. . .

func main() {
    mux := http.NewServeMux()

    reg := prometheus.NewRegistry()

    reg.MustRegister(httpRequestCounter)
    reg.MustRegister(activeRequestsGauge)

    . . .
}

The activeRequestsGauge metric is created with prometheus.NewGauge() to keep track of the number of active HTTP requests being processed at any given time. If you want to add labels, use NewGaugeVec() instead.

At the start of the middleware function, the activeRequestsGauge.Inc() method is called to increment the gauge when a new HTTP request arrives.

The time.Sleep() method is then used to simulate a delay of one second. In real-world scenarios, the time taken to process the request would depend on factors such as database queries, external API calls, and other business logic.

Finally, once the request handler returns, the activeRequestsGauge.Dec() method is called to decrement the gauge, indicating that the has finished processing and is no longer active.

Ensure to register the activeRequestsGauge and save the file, then send some load to your server with:

wrk -t 10 -c 400 -d 5m --latency "http://localhost:8000"

When you visit your metric endpoint, you'll see the following output:

# HELP http_active_requests Number of active users in the system
# TYPE http_active_requests gauge
http_active_requests 407

This indicates that there are currently 407 active connections to the service.

You may query this metric and see the Graph tab to check how this number is changing over time.

Next up, you'll instrument a Histogram metric to track the HTTP request latency for your routes.

Step 5 — Instrumenting an Histogram metric

Histograms are helpful for tracking distributions of measurements, such as the duration of HTTP requests. In Prometheus, creating a Histogram metric is straightforward with the prometheus.NewHistogramVec() method:

package main

import (
    "log"
    "math/rand"
    "net/http"
    "os"
    "strconv"
    "time"

    "github.com/joho/godotenv"
    "github.com/prometheus/client_golang/prometheus"
    "github.com/prometheus/client_golang/prometheus/promhttp"
)

. . .

var latencyHistogram = prometheus.NewHistogramVec(prometheus.HistogramOpts{
    Name: "http_request_duration_seconds",
    Help: "Duration of HTTP requests",
}, []string{"status", "path", "method"})

// Middleware to count HTTP requests.
func prometheusMiddleware(next http.Handler) http.Handler {
    return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
        . . .

        now := time.Now()

        delay := time.Duration(rand.Intn(900)) * time.Millisecond

        time.Sleep(delay)

        . . .

        latencyHistogram.With(prometheus.Labels{
            "method": method, "path": path, "status": status,
        }).
            Observe(time.Since(now).Seconds())

        // Increment the counter
        httpRequestCounter.WithLabelValues(status, path, method).Inc()
    })
}

. . .

func main() {
    mux := http.NewServeMux()

    reg := prometheus.NewRegistry()

    reg.MustRegister(httpRequestCounter)
    reg.MustRegister(activeRequestsGauge)
    reg.MustRegister(latencyHistogram)

    . . .
}

Instead of a fixed delay of one second, we've introduced a random delay between 0ms and 1s using rand.Intn() so that you can observe a range of values.

After the request is processed, the duration is calculated as the difference between the current and recorded start times. This value is then converted to seconds and recorded into the histogram.

Once the histogram is registered, it will be exposed at the /metrics endpoint. By generating some load to your endpoints, you'll see the following output in /metrics:

. . .
# HELP http_request_duration_seconds Duration of the request.
# TYPE http_request_duration_seconds histogram
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.005"} 0
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.01"} 0
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.025"} 4
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.05"} 5
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.1"} 13
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.25"} 43
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="0.5"} 85
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="1"} 154
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="2.5"} 154
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="5"} 154
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="10"} 154
http_request_duration_seconds_bucket{method="GET",path="/",status="200",le="+Inf"} 154
http_request_duration_seconds_sum{method="GET",path="/",status="200"} 68.487667757
http_request_duration_seconds_count{method="GET",path="/",status="200"} 154

Each _bucket line shows the cumulative count of requests completed in less than or equal to a specific duration. For example:

• le="0.005": No requests completed within 5 milliseconds.
• le="0.025": 4 requests completed within 25 milliseconds.
• le="0.5": 85 requests completed within 0.5 seconds (500ms).
• le="+Inf": 154 requests completed in total (all durations).

The default buckets for a histogram metric are:

[0.005, 0.01, 0.025, 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 10, +Inf]

If this doesn't make sense for your use case, you can define a custom bucket with:

var latencyHistogram = prometheus.NewHistogramVec(prometheus.HistogramOpts{
    Name: "http_request_duration_seconds",
    Help: "Duration of HTTP requests",
    Buckets: []float64{0.1, 0.5, 1, 2.5, 5, 10},
}, []string{"status", "path", "method"})

In the Prometheus UI, you can use the following PromQL query to calculate the 99th percentile latency for HTTP requests over a 1-minute window:

histogram_quantile(0.99, sum(rate(http_request_duration_seconds_bucket[1m])) by (le))

Step 6 — Instrumenting a Summary metric

A Summary metric in Prometheus is useful for capturing pre-aggregated quantiles (e.g., median, 95th, or 99th percentile) and providing overall counts and sums for specific observations.

A key feature of summaries is their ability to calculate quantiles directly on the client side, which makes them particularly valuable in scenarios where you need quantiles for individual instances and don't want to rely on Prometheus for these computations.

While the histogram is usually preferred for tracking request latency, the Summary can be used for precomputing quantiles for response times of critical API endpoints where aggregation isn't required.

Here's how to set it up:

package main

import (
    "io"
    "log"
    "math/rand"
    "net/http"
    "os"
    "strconv"
    "time"

    "github.com/joho/godotenv"
    "github.com/prometheus/client_golang/prometheus"
    "github.com/prometheus/client_golang/prometheus/promhttp"
)

. . .

var postsLatencySummary = prometheus.NewSummary(prometheus.SummaryOpts{
    Name: "post_request_duration_seconds",
    Help: "Duration of requests to https://jsonplaceholder.typicode.com/posts",
    Objectives: map[float64]float64{
        0.5:  0.05,  // Median (50th percentile) with a 5% tolerance
        0.9:  0.01,  // 90th percentile with a 1% tolerance
        0.99: 0.001, // 99th percentile with a 0.1% tolerance
    },
})

. . .

func main() {
. . .

    reg.MustRegister(postsLatencySummary)

    handler := promhttp.HandlerFor(
        reg,
        promhttp.HandlerOpts{})

    mux.Handle("/metrics", handler)

    mux.HandleFunc("/posts", func(w http.ResponseWriter, r *http.Request) {
        url := "https://jsonplaceholder.typicode.com/posts"

        now := time.Now()

        resp, err := http.Get(url)
        if err != nil {
            http.Error(w, err.Error(), http.StatusInternalServerError)
            return
        }

        postsLatencySummary.Observe(time.Since(now).Seconds())

        defer resp.Body.Close()

        if resp.StatusCode != http.StatusOK {
            http.Error(w, "request failed", resp.StatusCode)
            return
        }

        body, err := io.ReadAll(resp.Body)
        if err != nil {
            http.Error(w, err.Error(), http.StatusInternalServerError)
        }

        w.Header().Set("Content-Type", "application/json")
        w.Write(body)
    })

    . . .
}

The postLatencySummary metric is used here to measure and monitor the latency of requests to the external API endpoint https://jsonplaceholder.typicode.com/posts.

The Objectives field in the SummaryOpts structure specifies the quantiles to calculate. Each quantile is associated with a tolerance value, which defines the allowable margin of error for the quantile calculation.

• For 0.5: 0.05, the actual quantile value may have up to a 5% error margin.
• For 0.9: 0.01, the margin of error is stricter at 1%.

When choosing tolerances, keep in mind that lower values require more memory and processing power.

In /posts handler, the duration for the request is calculated and recorded into the summary metric.

Once you've saved the file, send some requests to the /posts endpoint:

wrk -t 1 -c 5 -d 10s --latency "http://localhost:8000/posts"

When you scrape your application metrics now, you'll see an output that looks like this:

. . .
# HELP post_request_duration_seconds Duration of requests to https://jsonplaceholder.typicode.com/posts
# TYPE post_request_duration_seconds summary
post_request_duration_seconds{quantile="0.5"} 0.1095123
post_request_duration_seconds{quantile="0.9"} 0.127119377
post_request_duration_seconds{quantile="0.99"} 0.5448496
post_request_duration_seconds_sum 11.270166696
post_request_duration_seconds_count 86

This shows the shows precomputed quantiles (50th, 90th, and 99th percentiles) and overall statistics (sum and count) for request durations to https://jsonplaceholder.typicode.com/posts.

From the results, we can deduce that:

• Half of all requests completed in less than or equal to 0.1095 seconds (about 110 milliseconds),
• 90% of all requests completed in less than or equal to 0.1271 seconds (about 127 milliseconds),
• and 99% of all requests completed in less than or equal to 0.5448 seconds (about 545 milliseconds).

This 0.99 quantile is much higher than the 0.9 quantile, which indicates the presence of a few slower requests.

Final thoughts

In this tutorial, we explored the fundamentals of setting up and using Prometheus metrics in a Go application, covering key concepts such as defining and registering counters, gauges, histograms, and summaries.

As the next steps, consider integrating alerting with Prometheus Alertmanager or visualizing metrics using tools like Grafana and Better Stack.

Exploring advanced PromQL queries can also help you unlock powerful ways to analyze and act on your application's data.

Thanks for reading, and happy monitoring!

Article by

Ayooluwa Isaiah

Ayo is a technical content manager at Better Stack. His passion is simplifying and communicating complex technical ideas effectively. His work was featured on several esteemed publications including LWN.net, Digital Ocean, and CSS-Tricks. When he's not writing or coding, he loves to travel, bike, and play tennis.

Got an article suggestion? Let us know

Next article

A Deep Dive into OpenTelemetry and Prometheus Metrics

Discover the key differences, strengths, and trade-offs between OpenTelemetry and Prometheus for metric instrumentation and collection

→

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
