What is Prometheus Monitoring? A Beginner's Guide

Effective monitoring is crucial for any business as downtime can be incredibly costly.

Real-time monitoring is thus essential to maintain performance, reliability, and ensure rapid issue resolution, and Prometheus has long been a key player in this space.

In this blog post, you'll gain a comprehensive understanding of Prometheus and its powerful capabilities for monitoring your applications and infrastructure.

Let's get started!

What is Prometheus?

Prometheus is a leading open-source monitoring and alerting toolkit that was originally developed at SoundCloud in 2012.

It quickly rose to prominence due to its powerful and efficient approach to metric collection and analysis, and is now the de facto standard for monitoring in the cloud-native world.

In 2016, Prometheus became the second project hosted by the Cloud Native Computing Foundation (CNCF), following Kubernetes, and this cemented its role as a cornerstone of the cloud-native ecosystem.

Today, Prometheus remains one of the CNCF's most active projects, and recently celebrated the release of version 3.0.

How does Prometheus work?

Prometheus operates by scraping metrics from monitored targets at regular intervals. These targets expose metrics over HTTP endpoints, typically at /metrics, in a human-readable format that Prometheus can process.

The metrics format looks like this:

To expose metrics from your application, you'll need to instrument your code with the client libraries provided for your programming language or framework.

Since Prometheus' metrics format is the de facto standard in the monitoring ecosystem, many systems, including Kubernetes, natively support it.

If a target doesn't natively expose Prometheus-compatible metrics, exporters can bridge the gap. Exporters collect metrics from systems that don't directly support Prometheus metrics, making them accessible in the expected format.

For dynamic environments like container orchestration platforms, Prometheus supports service discovery mechanisms to dynamically locate targets as they are created or terminated.

Prometheus also supports short-lived targets, such as serverless functions, through the Pushgateway.

Instead of Prometheus scraping these ephemeral targets directly, the metrics are pushed to the Pushgateway. It acts as a temporary store, allowing Prometheus to scrape the metrics from it at regular intervals.

Once metrics are collected from configured or discovered targets, they are stored in a local time-series database where you can configure retention periods to manage storage usage so that older data can be offloaded if necessary.

Each metric is identified by a unique name, a timestamp, and optional key-value pairs:

http_requests_total{method="GET", status="200"}

Metrics stored in Prometheus can be queried using PromQL, a powerful query language designed for time-series data. You can use the built-in expression browser for ad hoc querying and data exploration.

When it comes to visualizing your metrics, Prometheus includes a basic web UI, but it is often integrated with visualization tools like Grafana for advanced, customizable dashboards.

Another important aspect of monitoring is alerting when notable events occur or things go wrong. Prometheus handles this by allowing you to define alert rules based on PromQL expressions, which trigger an alert once the conditions are met.

The alerting process is managed through the Alertmanager component, which handles the grouping, deduplication, and routing to the appropriate receivers such as email, Slack, Discord, or a custom webhook.

With this overview of Prometheus' architecture and workflow, let's delve deeper into the metrics it collects.

A brief tour of Prometheus metrics

Metrics are simply numerical measurements tracked over time. These measurements can be anything relevant to your application, like web server request latency or the number of concurrent users.

Analyzing these metrics helps you understand your application's behavior, health, and performance. For instance, monitoring CPU usage can help identify if performance bottlenecks are due to resource constraints so that you can implement optimizations or increase your server capacity as needed.

In Prometheus, each metric has a name, optional labels, and a value that changes over time. There are four core metric types:

1. Counter: Counts things that go up but never down, like the number of requests served or errors encountered.
2. Gauge: Measures values that can go up or down, such as CPU usage, memory available, etc.
3. Histogram: Tracks the distribution of values over time to help you understand the typical, average, and outlier values.
4. Summary: Similar to histograms, but focuses on precomputed percentiles for a single instance of an application.

Just like a car's dashboard, each instrumented target must provide a /metrics endpoint (or similar) where you can see all the collected metrics and their current values.

For example:

# HELP http_requests_total Total number of HTTP requests made.
# TYPE http_requests_total counter
http_requests_total{method="GET", code="200"} 1234
http_requests_total{method="POST", code="201"} 345
http_requests_total{method="GET", code="404"} 12

Here, http_requests_total is the metric name, and it's a counter tracking the number of HTTP requests. The labels {method="GET", code="200"} provide context, such as the HTTP method and response code.

In this case:

• 1,234 successful GET requests (code="200") were made.
• 345 successful POST requests (code="201") were made.
• 12 GET requests resulted in a 404 error.

For a deeper dive into metric types, check out A Practical Guide to Prometheus Metric Types.

Getting started with Prometheus

The simplest way to start using Prometheus and its components and exporters is through the official Docker images. Alternatively, you can explore other installation options on the Prometheus download page.

Here's an example Docker Compose configuration for running the Prometheus Server. This setup enables metric scraping, querying, and basic visualizations:

services:
  prometheus:
    image: prom/prometheus:latest
    container_name: prometheus
    restart: unless-stopped
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
      - ./alerts.yml:/etc/prometheus/alerts.yml
      - prometheus_data:/prometheus
    command:
      - --config.file=/etc/prometheus/prometheus.yml
      - --storage.tsdb.path=/prometheus
      - --web.console.libraries=/etc/prometheus/console_libraries
      - --web.console.templates=/etc/prometheus/consoles
      - --web.enable-lifecycle
    expose:
      - 9090
    ports:
      - 9090:9090
    networks:
      - monitoring

networks:
  monitoring:
    driver: bridge

volumes:
  prometheus_data:

Prometheus uses a configuration file (prometheus.yml) to define scrape settings and specify monitoring targets. Below is a basic configuration:

global:
  scrape_interval: 10s

scrape_configs:
  - job_name: prometheus
    scrape_interval: 10s
    static_configs:
      - targets:
          - 'localhost:9090'

This configuration file specifies a global scrape interval of 10 seconds, and instructs Prometheus to scrap metrics a single target: the Prometheus server itself. You can explore additional options in the configuration docs.

Once your configuration files are ready, launch the Prometheus server using Docker Compose:

docker compose up -d

. . .
[+] Running 2/2
 ✔ Network prometheus_monitoring               Created           0.2s
 ✔ Container prometheus                        Started           0.7s

The server will initialize and expose the Prometheus interface at http://localhost:9090:

Navigate to http://localhost:9090/targets to see what targets Prometheus is configured to scrape:

As you can see, only the Prometheus server itself is currently being scraped.

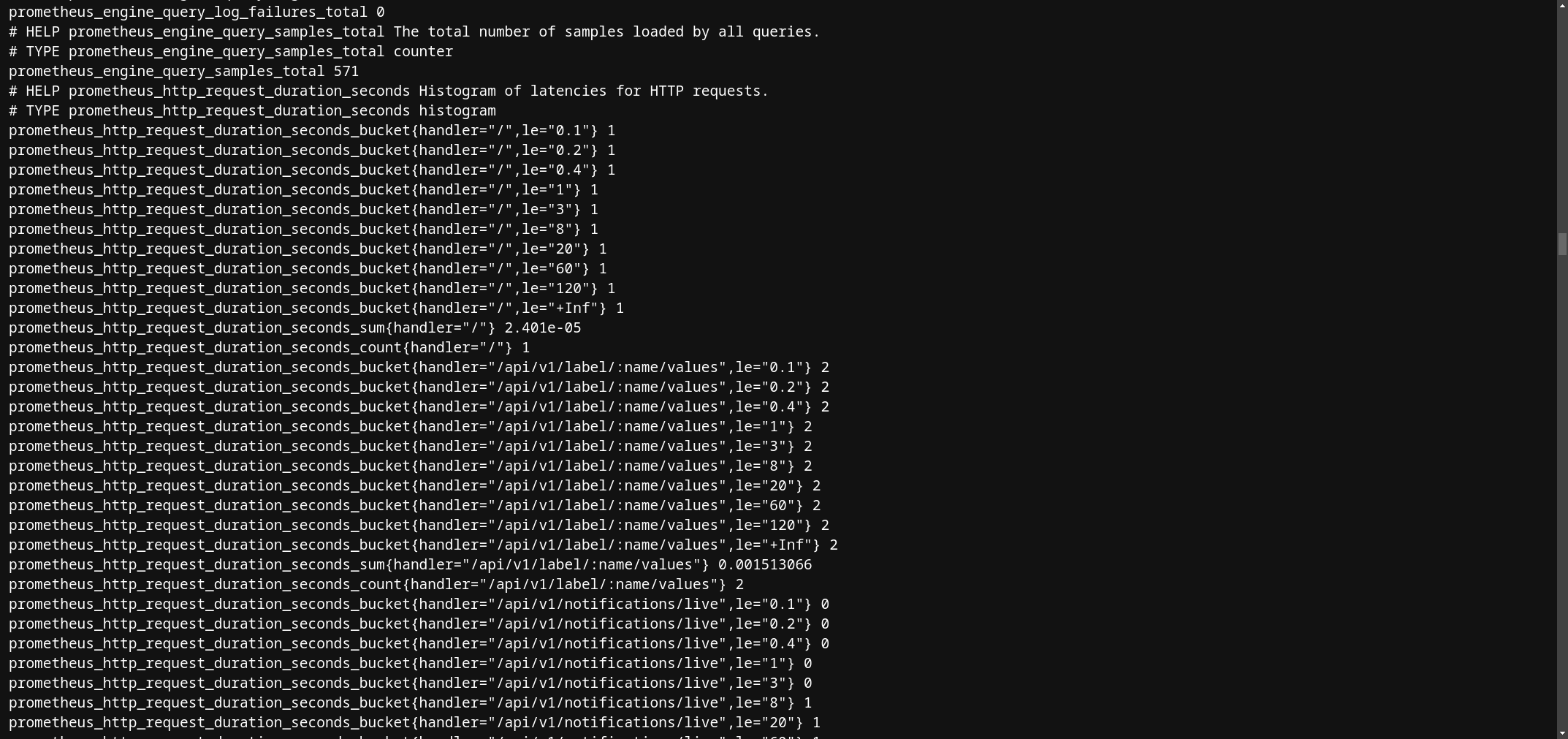

Prometheus exposes a variety of default metrics at http://localhost:9090/metrics. These include details about the Go runtime, scraping performance, HTTP server activity, and the health of the time-series database.

Here's an example of the exposed metrics:

. . .
process_virtual_memory_bytes 1.44852992e+09
# HELP process_virtual_memory_max_bytes Maximum amount of virtual memory available in bytes.
# TYPE process_virtual_memory_max_bytes gauge
process_virtual_memory_max_bytes 1.8446744073709552e+19
# HELP prometheus_api_notification_active_subscribers The current number of active notification subscribers.
# TYPE prometheus_api_notification_active_subscribers gauge
prometheus_api_notification_active_subscribers 1
# HELP prometheus_api_notification_updates_dropped_total Total number of notification updates dropped.
# TYPE prometheus_api_notification_updates_dropped_total counter
prometheus_api_notification_updates_dropped_total 0
# HELP prometheus_api_notification_updates_sent_total Total number of notification updates sent.
# TYPE prometheus_api_notification_updates_sent_total counter
prometheus_api_notification_updates_sent_total 0
# HELP prometheus_api_remote_read_queries The current number of remote read queries being executed or waiting.
# TYPE prometheus_api_remote_read_queries gauge
prometheus_api_remote_read_queries 0
. . .

You can then use PromQL to query and visualize the metrics. A simple query could be displaying the resident memory used by the Prometheus process with:

process_resident_memory_bytes

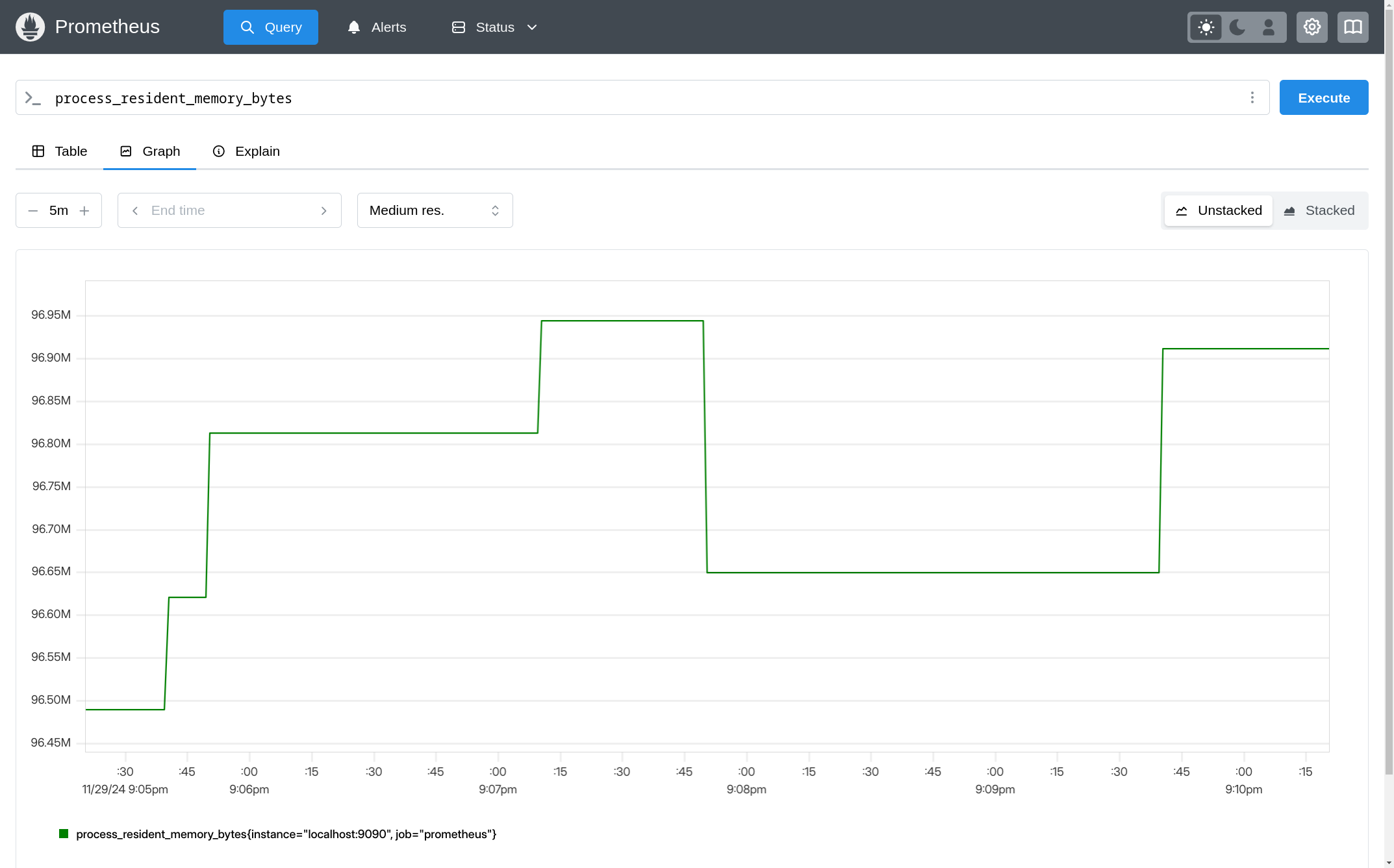

Switching to the Graph tab will display the Prometheus server memory usage over time:

While collecting default metrics from Prometheus is a good start, it doesn't fully demonstrate its potential.

To gain a deeper understanding of what Prometheus can do, we recommend reading our guide on monitoring host metrics using the Node Exporter.

You can also explore our dedicated guides on PromQL and Alertmanager to learn all about querying your metrics, and setting up a robust alerting system.

When Prometheus works best

Prometheus excels at monitoring cloud-native infrastructure components either natively or through exporters, letting you track metrics such as CPU utilization or memory usage across servers.

It is particularly effective in dynamic environments with rapidly changing services, like monitoring the performance of containerized applications in Kubernetes.

Its independent server design ensures high reliability, allowing you to continue monitoring critical metrics during system outages.

This resilience makes it an invaluable tool for diagnosing issues in real time, even under failure conditions.

When Prometheus may fall short

Despite its strengths, Prometheus isn't a universal solution for all observability needs.

For use cases that demand precise, granular data—such as tracking financial transactions, auditing user activity, or billing—Prometheus may fall short.

Its emphasis on reliability over precision means it may not capture the level of detail required for such tasks.

In these cases, it's best to complement Prometheus with a dedicated system designed for tasks

Prometheus is not ill-suited for long-term data retention or high-durability storage.

For extended retention needs, explore its remote storage integrations or consider an observability platform like Better Stack for comprehensive solutions that include long-term metric storage.

Final thoughts

Now that you're familiar with how Prometheus works, you should be all set to start monitoring your applications and infrastructure!

You can then take your Prometheus monitoring to the next level by integrating it with Better Stack. Use either the scrape or remote-write method to seamlessly send your metrics to Better Stack, where you can build dashboards and configure alerts.

If you don't yet have a Better Stack account, sign up for the free tier to start exploring these capabilities.

Thanks for reading, and happy monitoring!
